Steel Adapter, 0.25 Inch JIS 30 deg Flare To 0.25 Inch JIS 30 deg Flare, Straight

Description & Features

Designed for precision and reliability, the Adaptall Steel Adapter is a versatile component essential for industrial hydraulic systems. This adapter features dual 0.25-inch JIS 30-degree flare connections, ensuring seamless integration with compatible tubing. Made from high-quality steel, it promises durability and strength in demanding environments.

The straight design of this adapter facilitates efficient flow and minimizes pressure drop, making it ideal for applications requiring consistent performance. Its compatibility with the JIS standard ensures that it meets international quality and safety benchmarks, providing peace of mind in hydraulic use.

SKU: 9336-04-04

Supplier Part Number (MPN): 9336-04-04

Alternate Part Numbers: C1FA90, MI-02706206, MINO-03671X84952

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIS
Connection Type 1
Male JIS
Connection Type 2
Male JIS
Dimension Standards
JIS B 0202

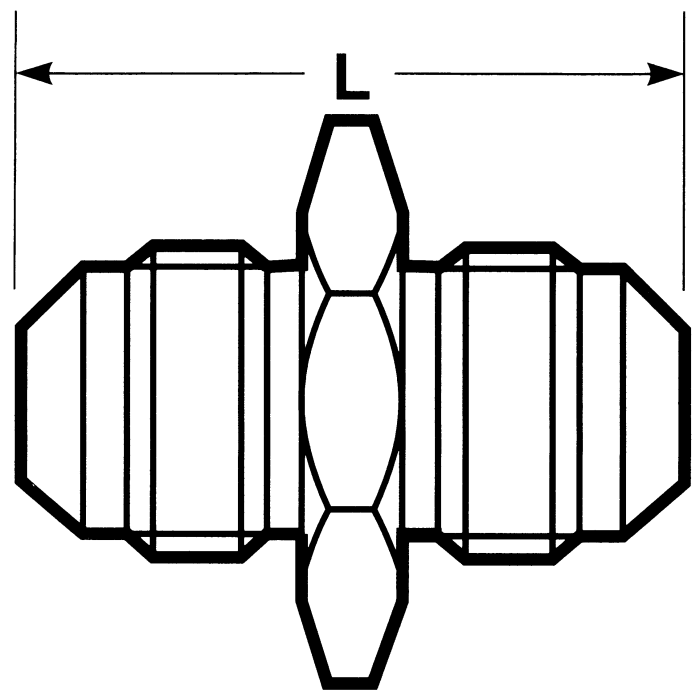

Dimensions
38 mm L
Finish
Zinc-Plated
Fitting Type
Union
Hex Size
17 mm
Material
Steel
Material Construction
Carbon Steel
Series
9336 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-19
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 0.38 Inch JIS 30 deg Flare To 0.38 Inch JIS 30 deg Flare, Straight

9336-06-06 Steel JIS 30 deg Flare Union

3/8 in

3/8 in

3/8-19

19 mm

Male Jis Union

9336-08-08

1/2 in

1/2 in

1/2-14

22 mm

Male Jis Union

9336-12-12

3/4 in

3/4 in

3/4-14

Male Jis Union

9336-16-16

1 in

1 in

1-11

36 mm

Product Questions & Answers (3)

Question by: Tony F on May 4, 2025, 3:37 PM
Reckon this'll hook up alright with my existing quarter-inch JIS setup? Don't wanna get the wrong size, you know.
Answer by: Customer Support on May 6, 2025, 8:01 AM
This steel adapter is designed to connect directly to other 0.25-inch JIS 30-degree flare fittings, so it should integrate seamlessly with your current system.
Question by: Melvin B on Nov 16, 2025, 7:51 PM
got a quarter inch jis 30 degree flare line on both sides. is this just a straight union to tie em together
Answer by: Customer Support on Nov 18, 2025, 6:03 AM
Built as a straight-through union, it connects a 0.25 inch JIS 30 degree flare on one side to the same 0.25 inch JIS 30 degree flare on the other, so you can join two matching JIS flare tube ends.
Question by: Johnny T on Nov 3, 2025, 8:00 PM
Got a line running 1/4 inch JIS 30 degree flare on both ends and need to join em straight through. This the right part for that?
Answer by: Customer Support on Nov 4, 2025, 8:33 PM
For a straight union between two 1/4 inch JIS 30 degree flare lines, this is exactly what you need. Both ends are the same connection type and size, so it bridges two matching fittings without any conversion. The steel construction holds up well in hydraulic line work where you need something solid and reliable at the joint.
