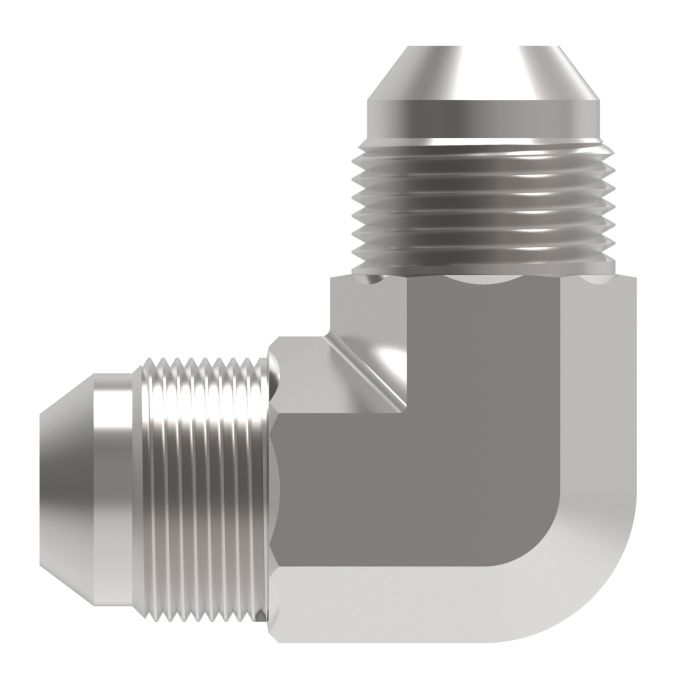

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

Description & Features

Designed for tight-space hydraulic routing, the Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow is part of the Eaton Aeroquip 2039 Series and provides a same-size, 90-degree directional change between two male JIC 37° flare connections. Both ports share a 1-1/16-12 thread size, making this a straight-size elbow suited for applications where inline connections must change direction without a reduction in port size.

Constructed from steel, this adapter is well-suited for demanding industrial environments including marine and military systems, chemical processing, pulp and paper facilities, food and beverage processing, and offshore drilling. The SAE 37° flare interface provides a reliable metal-to-metal seal commonly relied upon across hydraulic circuit assemblies in these sectors.

SKU: 2039-12-12S

Supplier Part Number (MPN): 2039-12-12S

Alternate Part Numbers: C1AY16, MI-00313598, MINO-00015F62203

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.66 in	b Dimensions 1.66 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE 070201/J514	Drop Dimensions 1.66 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Operating Temperature -65	Series 2039 Series	Thread Size 1-1/16-12

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	a Dimensions	b Dimensions
2039-10-10S Steel Male JIC 90 deg Elbow	0.63	7/8-14	7/8-14	1.45 in	1.45 in
2039-16-16S Steel Male JIC 90 deg Elbow	1	1-5/16-12	1-5/16-12	1.81 in	1.81 in
2039-20-20S Steel Male JIC 90 deg Elbow	1.25	1-5/8-12	1-5/8-12	2.06 in	2.06 in
2039-4-4S Steel Male JIC 90 deg Elbow	0.25	7/16-20	7/16-20	0.89 in	0.89 in
2039-6-6S Steel Male JIC 90 deg Elbow	0.38	9/16-18	9/16-18	1.06 in	1.06 in
2039-8-8S Steel Male JIC 90 deg Elbow	0.5	3/4-16	3/4-16	1-1/4 in	1-1/4 in
2500-03-03 Steel Male JIC 90 deg Elbow	0.19	3/8-24	3/8-24	0.83 in	0.83 in

Product Questions & Answers (3)

Question by: Daryl H on Jan 25, 2026, 9:09 PM

got a tight spot on a hose run. is this the 90 elbow that goes male JIC to male JIC, both 1-1/16-12?

Answer by: Customer Support on Jan 27, 2026, 5:55 PM

For a tight bend, this adapter is a 90 degree elbow with male SAE 37 degree (JIC) flare ends on both sides, and both ends are 1-1/16-12 thread.

Question by: Wade R on Mar 15, 2026, 10:27 AM

trying to get a hose to turn a corner without kinkin it up, is this the right kind of fitting for that?

Answer by: Customer Support on Mar 16, 2026, 4:05 PM

For a tight turn, a 90 degree elbow adapter like this one is commonly used to change direction without forcing the hose to bend hard. This part is a steel Eaton Aeroquip 2039 series elbow with a JIC 37 degree flare connection on both ends.

Question by: Freddie M on Sep 24, 2025, 8:35 PM

Will this elbow adapter work for hydraulic systems in marine applications?

Answer by: Customer Support on Sep 25, 2025, 9:48 PM

Yes, this adapter is suitable for marine and military applications, as well as chemical processing, pulp and paper industries, and food and beverage processing.
