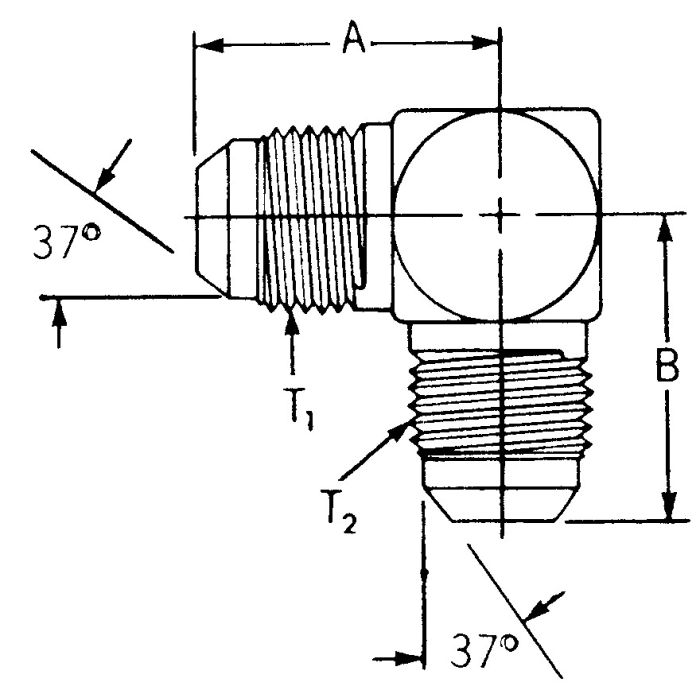

main product photo

Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 90-degree elbow configuration, designed to connect 7/16-20 Male JIC 37 deg Flare connections.

Well-suited for demanding applications, this adapter can be used in marine/military environments, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

SKU: 2039-4-4S

Supplier Part Number (MPN): 2039-4-4S

Alternate Part Numbers: C1AY18, MI-00313542, MINO-00015F62196

Specifications

a Dimensions
0.89 in
b Dimensions
0.89 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE 070201/J514
Drop Dimensions
0.89 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-65
Series
2039 Series
Thread Size
7/16-20
Tube OD
1/4 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Dean H on Nov 26, 2025, 9:33 AM
got a tight spot on a line, is this the kind of 90 elbow that keeps both ends JIC flare
Answer by: Customer Support on Nov 28, 2025, 7:27 AM
Youre looking at a 90 degree elbow adapter with a 7/16-20 male JIC 37 degree flare on both ends. It is meant to turn the line while staying JIC flare to JIC flare.
Question by: Steve P on Sep 2, 2025, 6:44 PM
Will this elbow adapter work for connecting two 7/16-20 male JIC 37 degree flare fittings at a 90-degree angle?
Answer by: Customer Support on Sep 4, 2025, 6:58 AM
Yes, this Eaton Aeroquip 2039 series adapter is specifically designed for that purpose, connecting two SAE 37-degree flare fittings of that size with a 90-degree turn.
