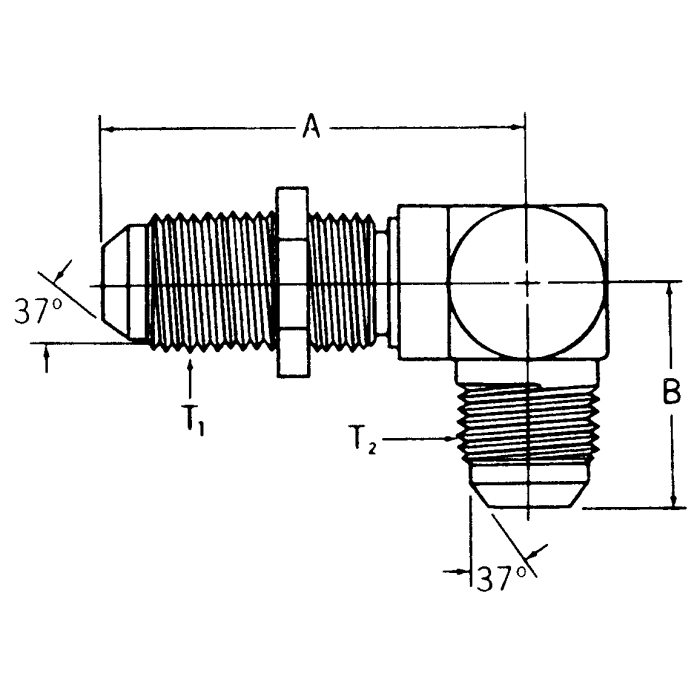

Steel Adapter, 3/8-24 Male JIC 37 deg Flare To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow Bulkhead

Ask A Question

Description & Features

Designed for tight-routing applications where inline fitting placement is not practical, the Steel Adapter, 3/8-24 Male JIC 37 deg Flare To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow Bulkhead provides a 90-degree directional change with bulkhead mounting capability through a panel or bulkhead surface. Both ends carry 3/8-24 male JIC 37-degree flare threads, making this a same-size union configuration suited for connecting matched JIC flare lines at a right angle while passing through a structural divider.

Constructed from steel and sourced from Tompkins Industries, this fitting is designed for hydraulic line routing in mobile and industrial equipment. The bulkhead configuration, without a nut, allows the fitting itself to be secured through a panel using a separately sourced bulkhead nut, offering flexibility in assembly. With a tube O.D. rating of 0.19 inches and overall dimensions of 1.5 inches (A) by 0.94 inches (B), this compact adapter suits confined installations where precise line management is required.

SKU: 2701-03-03

Supplier Part Number (MPN): 2701-03-03-FG

Alternate Part Numbers: C1DW74

Specifications

a Dimensions
1-1/2 in
b Dimensions
0.94 in
Connection Size 1
3/16 in
Connection Size 2
3/16 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
MS 51507, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Bulkhead Elbow
Hex Size
7/16 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
2701-FG Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-24
