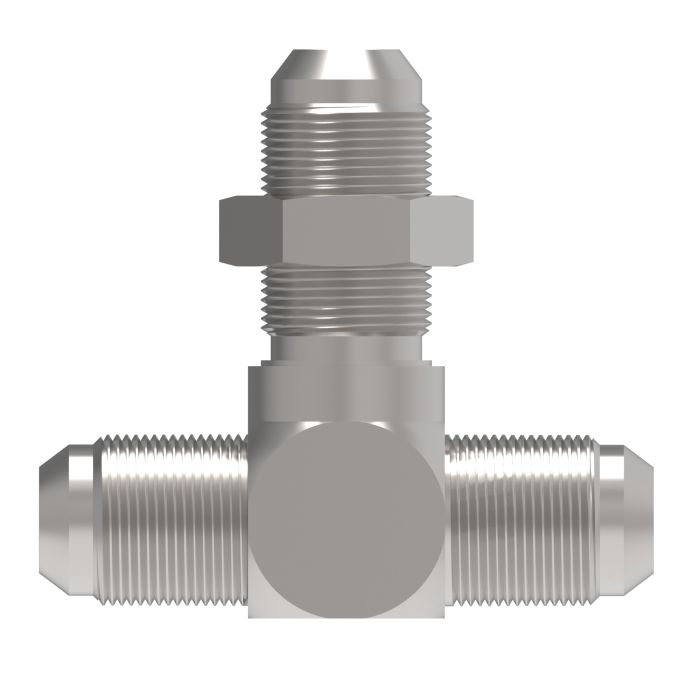

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare Bulkhead Branch To 1-1/16-12 Male JIC 37 deg Flare Run & Branch, Tee

Ask A Question

Description & Features

Designed for hydraulic, instrumentation, and chemical processing systems, this Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare Bulkhead Branch To 1-1/16-12 Male JIC 37 deg Flare Run & Branch, Tee is a Danfoss/Eaton Aeroquip 203002 Series fitting that provides a three-way connection point in a compact steel body. The tee configuration routes flow through both the run and branch ports, with the bulkhead branch allowing panel or wall pass-through mounting where space and layout constraints require it.

With an A dimension of 2.67 inches and a B dimension of 1.72 inches, this fitting suits applications where consistent 37-degree JIC flare sealing integrity is needed across all three connection points. The matched thread size across all ports, 1-1/16-12, simplifies line management in systems requiring uniform fitting specifications.

SKU: 203002-12-12S

Supplier Part Number (MPN): 203002-12-12S

Alternate Part Numbers: C1AX55, MI-00315550, MINO-00015F63697

Specifications

A
2.67
Alternate Part Numbers
Alternate Part Number C1AX55, Alternate Part Number MI-00315550, Alternate Part Number MINO-00015F63697, Alternate Part Number MINO-00925X09022
Application
Other - Hydraulic, instrumentation, and chemical processing systems
B
1.72
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Gender 3
13558
End Type 1
SAE 37
End Type 2
SAE 37
End Type 3
Flared
Hex Size 2
1.13
Minimum Working Temperature
-65
Supplier Part Number
203002-12-12S
Thread 1
1-1/16-12
Thread 2
1-1/16-12
Thread Sealant
No
Tube O.D.
0.75
Tube O.D.
0.75
Product Weight
0.97 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare Bulkhead Branch To 1-1/16-12 Male JIC 37 deg Flare Run & Branch, Tee

203002-12-12S Steel Male JIC Bulkhead Tee

0.75

1-1/16-12

1-1/16-12

2.67

1.72

Steel Adapter, 9/16-18 Male JIC 37 deg Flare Bulkhead Branch To 9/16-18 Male JIC 37 deg Flare Run & Branch, Tee

203002-6-6S Steel Male JIC Bulkhead Tee

0.38

9/16-18

9/16-18

1.81

1.06

Steel Adapter, 3/4-16 Male JIC 37 deg Flare Bulkhead Branch To 3/4-16 Male JIC 37 deg Flare Run & Branch, Tee

203002-8-8S Steel Male JIC Bulkhead Tee

0.5

3/4-16

3/4-16

2.11

1.24

Product Questions & Answers (3)

Question by: Vince C on Feb 17, 2025, 12:04 PM
Would this steel adapter be suitable for connecting hydraulic lines in agricultural equipment?
Answer by: Customer Support on Feb 19, 2025, 6:25 AM
Sure can! This steel adapter, with its 1-1/16-12 Male JIC 37-degree flare connections, is often used in agricultural machinery where robust and reliable hydraulic connections are needed. Just make sure the fittings match your existing setup for a good fit.
Question by: Rex E on Dec 21, 2025, 12:50 PM
Just wanna make sure – this'll work to connect two lines at a 90-degree angle, right?
Answer by: Customer Support on Dec 23, 2025, 8:19 AM
This steel adapter is indeed a tee fitting, meaning it's designed to branch one line into two, with one branch being at a 90-degree angle to the main run.
Question by: Rex S on Oct 22, 2025, 8:39 AM
Got a 1-1/16-12 JIC system and need to branch off to two different lines - will this tee handle that setup?
Answer by: Customer Support on Oct 23, 2025, 3:37 PM
Exactly what you're looking for. With male JIC 37 degree flare connections on all three ports sized at 1-1/16-12, you can connect your main line to the run port and split to two separate branch lines. The bulkhead design on one branch lets you mount it through a panel or wall if needed.
