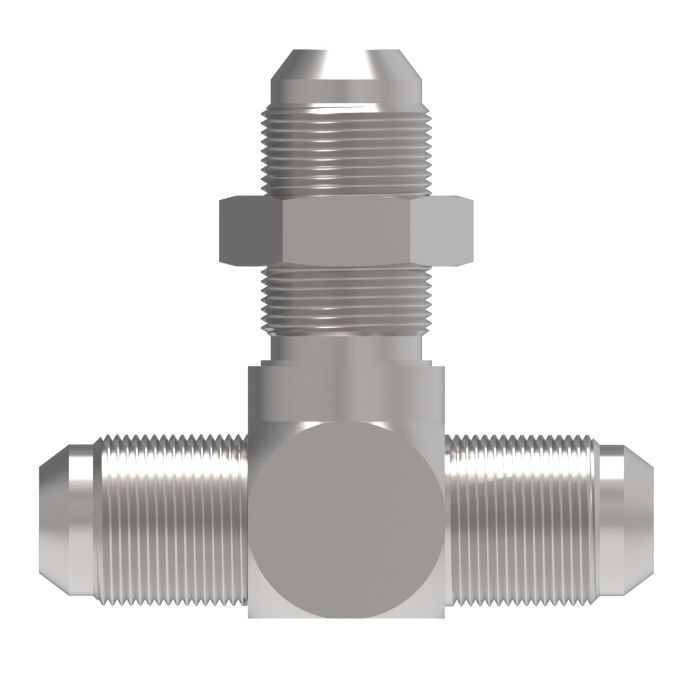

main product photo

Steel Adapter, 3/4-16 Male JIC 37 deg Flare Bulkhead Branch To 3/4-16 Male JIC 37 deg Flare Run & Branch, Tee

Ask A Question

Description & Features

The Eaton Aeroquip Steel Adapter is expertly designed for hydraulic, instrumentation, and chemical processing systems. This adapter features a 3/4-16 male JIC 37-degree flare bulkhead branch, seamlessly connecting to a 3/4-16 male JIC 37-degree flare run and branch in a tee configuration. Its robust construction ensures reliable performance under demanding conditions, making it an essential component for systems requiring secure and leak-proof connections.

Constructed from durable steel, this adapter boasts dimensions of A: 2.11 and B: 1.24, ensuring compatibility and ease of installation in complex systems. The precision engineering of the JIC 37-degree flare connection guarantees optimal fitting and fluid transfer. With a reputable brand like Eaton Aeroquip behind it, you can trust in the quality and longevity of this component for efficient system use.

SKU: 203002-8-8S

Supplier Part Number (MPN): 203002-8-8S

Alternate Part Numbers: C1AX56, MI-00315536, MINO-00015F63695

Specifications

A
2.11
Alternate Part Numbers
Alternate Part Number C1AX56, Alternate Part Number MI-00315536, Alternate Part Number MINO-00015F63695
Application
Other - Hydraulic, instrumentation, and chemical processing systems
B
1.24
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Gender 3
13558
End Size 1
0.75
End Size 2
0.75
End Size 3
0.75
End Type 1
SAE 37
End Type 2
SAE 37
End Type 3
SAE 37
Hex Size 2
1
Minimum Working Temperature
-65
Supplier Part Number
203002-8-8S
Thread 1
3/4-16
Thread 2
3/4-16
Thread Sealant
No
Tube I.D. 1
0.39
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.41 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare Bulkhead Branch To 1-1/16-12 Male JIC 37 deg Flare Run & Branch, Tee

203002-12-12S Steel Male JIC Bulkhead Tee

0.75

1-1/16-12

1-1/16-12

2.67

1.72

Steel Adapter, 9/16-18 Male JIC 37 deg Flare Bulkhead Branch To 9/16-18 Male JIC 37 deg Flare Run & Branch, Tee

203002-6-6S Steel Male JIC Bulkhead Tee

0.38

9/16-18

9/16-18

1.81

1.06

Steel Adapter, 3/4-16 Male JIC 37 deg Flare Bulkhead Branch To 3/4-16 Male JIC 37 deg Flare Run & Branch, Tee

203002-8-8S Steel Male JIC Bulkhead Tee

0.5

3/4-16

3/4-16

2.11

1.24

Product Questions & Answers (3)

Question by: Bobby J on Apr 16, 2025, 3:30 PM
what all can this tee adapter be used for? hydraulic lines, or is it more of a specialty fitting?
Answer by: Customer Support on Apr 18, 2025, 6:38 AM
Hydraulic systems are the main home for this fitting, but it also sees regular use in instrumentation and chemical processing setups. The 37 degree JIC flare connection is pretty common across those industries, so if your system already runs JIC fittings, this tee drops right in without a lot of fuss. All three ports are 3/4-16 Male JIC, so you're working with the same thread and flare angle on the run and the branch side.
Question by: Merle C on Oct 19, 2025, 4:37 PM
got a bulkhead setup and need to split a line, is this the tee that’s 3/4-16 male JIC on the run and the branch too?
Answer by: Customer Support on Oct 20, 2025, 6:59 PM
Built as a bulkhead branch tee, it gives you a 3/4-16 male JIC 37 degree flare on the run and a 3/4-16 male JIC 37 degree flare on the branch, so you can pass through a panel or bracket and take off a branch at the same thread and flare style.
Question by: Kurt M on Dec 8, 2025, 2:17 PM
So, this thing's a tee, right? Does that mean I can split a line into two with it?
Answer by: Customer Support on Dec 10, 2025, 1:52 PM
that's precisely what it's for. This adapter lets you branch off from a main hydraulic line into two separate lines, all using those 37-degree JIC flare fittings.
