Steel Adapter, 1-5/16-12 Male JIC 37 deg Flare Bulkhead Run To 1-5/16-12 Male JIC 37 deg Flare Run & Branch, Tee

Designed for hydraulic lines requiring a bulkhead-mounted tee connection, the Steel Adapter, 1-5/16-12 Male JIC 37 deg Flare Bulkhead Run To 1-5/16-12 Male JIC 37 deg Flare Run & Branch, Tee provides three identical 1-5/16-12 male JIC 37° flare ports in a run-and-branch configuration. All three ports share the same thread size and flare angle, making this a symmetrical fitting suited for splitting or combining flow at a panel or bulkhead surface.

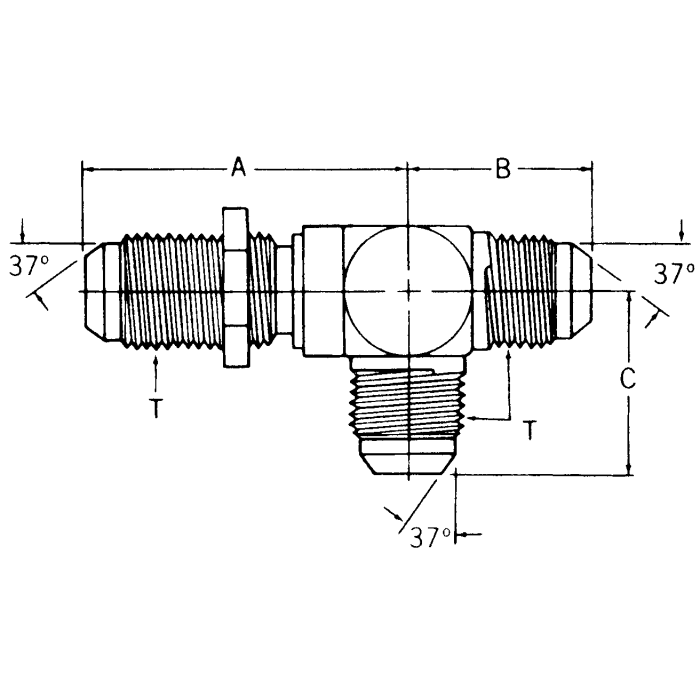

Manufactured by Brennan Industries and cataloged under model number C1HN70, this steel adapter is sized for 1-inch OD tubing. Key dimensions include an A measurement of 2.81 inches, with B and C each at 1.94 inches. The steel construction suits it for demanding hydraulic line installations where a secure, leak-resistant JIC connection is required at a fixed mounting point.

SKU: 2704-LN-161616FG

Supplier Part Number (MPN): 2704-LN-16-16-16-FG
