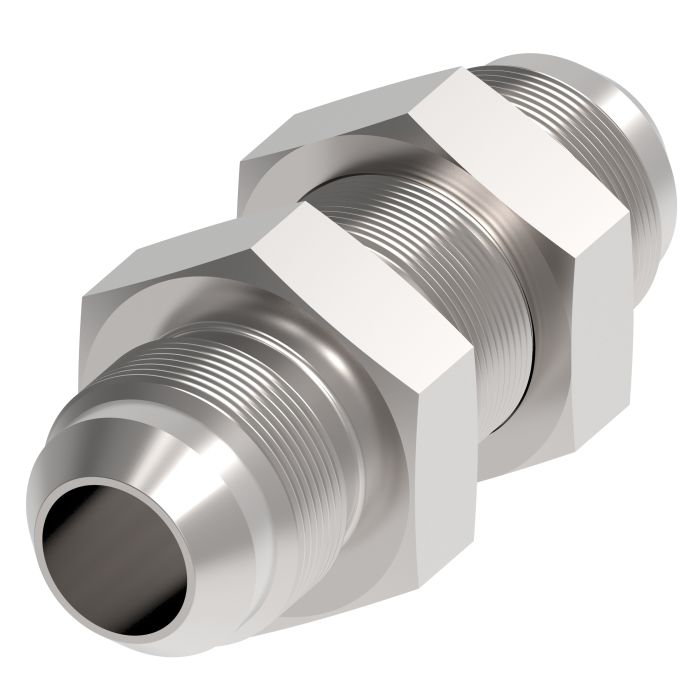

Steel Adapter, 1-7/8-12 Male JIC 37 deg Flare To 1-7/8-12 Male JIC 37 deg Flare, Straight Bulkhead

Description & Features

Designed for bulkhead installations, this Steel Adapter, 1-7/8-12 Male JIC 37 deg Flare To 1-7/8-12 Male JIC 37 deg Flare, Straight Bulkhead is part of the Eaton Aeroquip 2041 Series and connects two male JIC 37-degree flare fittings in a straight-through configuration. With an overall length (A) of 3.52 inches and a body dimension (B) of 1.84 inches, it is suited for panel or bulkhead mounting where a secure, leak-resistant seal is required at both ends.

Built for hydraulic, instrumentation, and chemical processing systems, this adapter carries catalog number C1FF60 and is compatible with a broad range of fluid types as documented in Eaton's fluid compatibility reference. The 1-7/8-12 thread size on both ends makes it a same-size, same-thread union fitting, suitable for routing lines through a panel wall without reducing flow path or changing connection geometry.

SKU: 2041-24-24S

Supplier Part Number (MPN): 2041-24-24S

Alternate Part Numbers: C1FF60

Specifications

Brand Aeroquip® by Danfoss	b Dimensions 1.84 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE 070601/J514	Dimensions 3.52 in L	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 2-1/8 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -65	Series 2041 Series	Thread Size 1-7/8-12

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2041-4-4S Steel Male JIC Bulkhead Union	0.25	7/16-20	7/16-20	2.07	1.2
2041-6-6S Steel Male JIC Bulkhead Union	0.38	9/16-18	9/16-18	2.18	1.28
2041-8-8S Steel Male JIC Bulkhead Union	0.5	3/4-16	3/4-16	2.44	1.44
2041-10-10S Steel Male JIC Bulkhead Union	0.63	7/8-14	7/8-14	2.74	1.58
2041-12-12S Steel Male JIC Bulkhead Union	0.75	1-1/16-12	1-1/16-12	3.09	1.75
2041-16-16S Steel Male JIC Bulkhead Union	1	1-5/16-12	1-5/16-12	3.14	1.75
2041-20-20S Steel Male JIC Bulkhead Union	1.25	1-5/8-12	1-5/8-12	3.31	1.8
2041-5-5S Steel Male JIC Bulkhead Union	0.31	1/2-20	1/2-20	2.07	1.2
2700-LN-06-06-FG Steel Male JIC Bulkhead Union	0.38	9/16-18	9/16-18	2.18	1.28

Product Questions & Answers (2)

Question by: Keith P on May 5, 2025, 6:46 PM

got a bulkhead pass-through i need to tie into, are both ends on this thing 1-7/8-12 male JIC 37 flare

Answer by: Customer Support on May 7, 2025, 1:52 PM

Yep. It is a straight bulkhead union adapter with 1-7/8-12 male JIC 37 degree flare on both sides, so it passes through a bulkhead and gives you the same MJIC flare connection on each end.

Question by: Jean R on Jul 18, 2025, 6:02 PM

got a panel that needs a bulkhead fitting on both sides with the same JIC thread, this one work for that kind of setup?

Answer by: Customer Support on Jul 20, 2025, 3:44 PM

That's what this adapter is built for. Both ends are 1-7/8-12 Male JIC 37 degree flare, and it's configured as a straight bulkhead, so it mounts through a panel and connects matching JIC lines on either side. Hydraulic systems, instrumentation lines, and chemical processing setups all fall within its intended application range, so it covers a pretty wide field of use.
