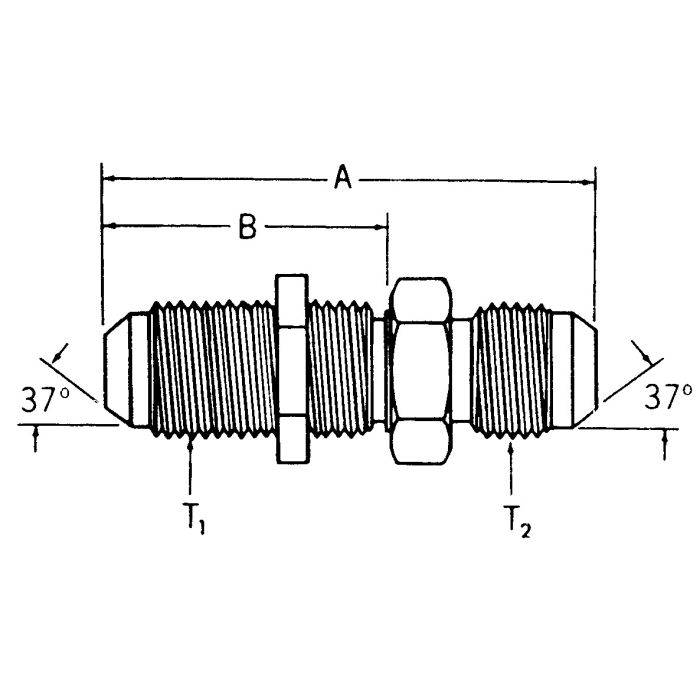

Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight Bulkhead

Ask A Question

Description & Features

Designed for through-panel or bulkhead mounting applications, this Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight Bulkhead provides a same-size, straight-through connection using 9/16-18 male JIC 37° flare threads on both ends. The included locknut secures the adapter through a panel or bulkhead, keeping hydraulic lines routed cleanly across barriers without the need for additional hardware.

Manufactured by Brennan Industries and cataloged under their 37° Flare Union Steel Adapter line, this fitting is constructed from steel for durability in demanding hydraulic environments. The 0.38-inch tube OD rating and overall dimensions of 2.18 inches in length and 1.28 inches at the body make it straightforward to confirm fit within a given assembly. JIC 37° flare connections are widely used across industrial hydraulic circuits for their reliable metal-to-metal sealing.

SKU: 2700-LN-06-06-FG

Supplier Part Number (MPN): 2700-LN-06-06

Specifications

A
2.18
B
1.28
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
2700-LN-06-06
Thread 1
9/16-18
Thread 2
9/16-18
Thread Sealant
No
Tube O.D.
0.38
Tube O.D.
0.38
Product Weight
0.14 lbs

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight Bulkhead

2041-4-4S Steel Male JIC Bulkhead Union

0.25

7/16-20

7/16-20

2.07

1.2

Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight Bulkhead

2041-6-6S Steel Male JIC Bulkhead Union

0.38

9/16-18

9/16-18

2.18

1.28

Steel Adapter, 3/4-16 Male JIC 37 deg Flare To 3/4-16 Male JIC 37 deg Flare, Straight Bulkhead

2041-8-8S Steel Male JIC Bulkhead Union

0.5

3/4-16

3/4-16

2.44

1.44

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 7/8-14 Male JIC 37 deg Flare, Straight Bulkhead

2041-10-10S Steel Male JIC Bulkhead Union

0.63

7/8-14

7/8-14

2.74

1.58

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, Straight Bulkhead

2041-12-12S Steel Male JIC Bulkhead Union

0.75

1-1/16-12

1-1/16-12

3.09

1.75

Steel Adapter, 1-5/16-12 Male JIC 37 deg Flare To 1-5/16-12 Male JIC 37 deg Flare, Straight Bulkhead

2041-16-16S Steel Male JIC Bulkhead Union

1

1-5/16-12

1-5/16-12

3.14

1.75

Steel Adapter, 1-5/8-12 Male JIC 37 deg Flare To 1-5/8-12 Male JIC 37 deg Flare, Straight Bulkhead

2041-20-20S Steel Male JIC Bulkhead Union

1.25

1-5/8-12

1-5/8-12

3.31

1.8

Steel Adapter, 1-7/8-12 Male JIC 37 deg Flare To 1-7/8-12 Male JIC 37 deg Flare, Straight Bulkhead

2041-24-24S Steel Male JIC Bulkhead Union

1.5

1-7/8-12

1-7/8-12

3.52

1.84

Steel Adapter, 1/2-20 Male JIC 37 deg Flare To 1/2-20 Male JIC 37 deg Flare, Straight Bulkhead

2041-5-5S Steel Male JIC Bulkhead Union

0.31

1/2-20

1/2-20

2.07

1.2

Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight Bulkhead

2700-LN-06-06-FG Steel Male JIC Bulkhead Union

0.38

9/16-18

9/16-18

2.18

1.28

Product Questions & Answers (1)

Question by: Harold W on Nov 2, 2025, 4:34 PM
What size hole do I need to drill in my panel for this fitting?
Answer by: Customer Support on Nov 4, 2025, 12:05 PM
The body of this bulkhead adapter is 1.28 inches in diameter, so you'll need a hole slightly larger than that to accommodate it.
