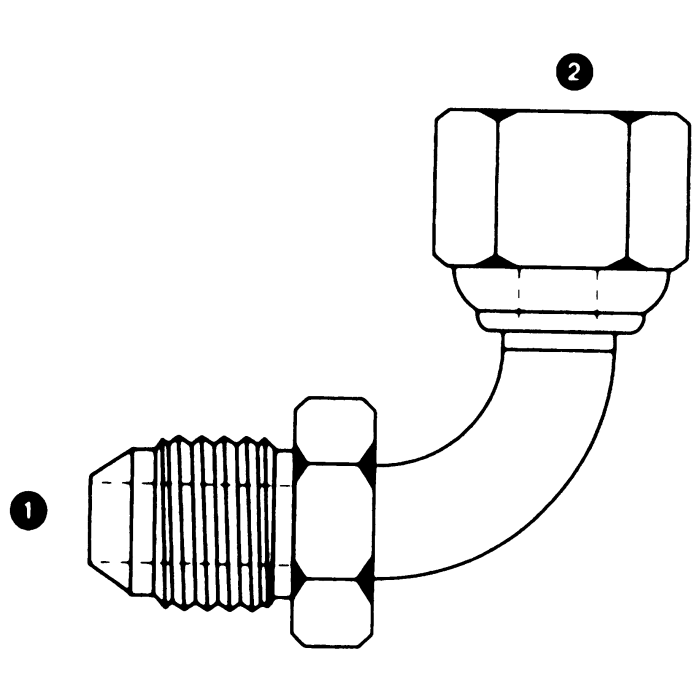

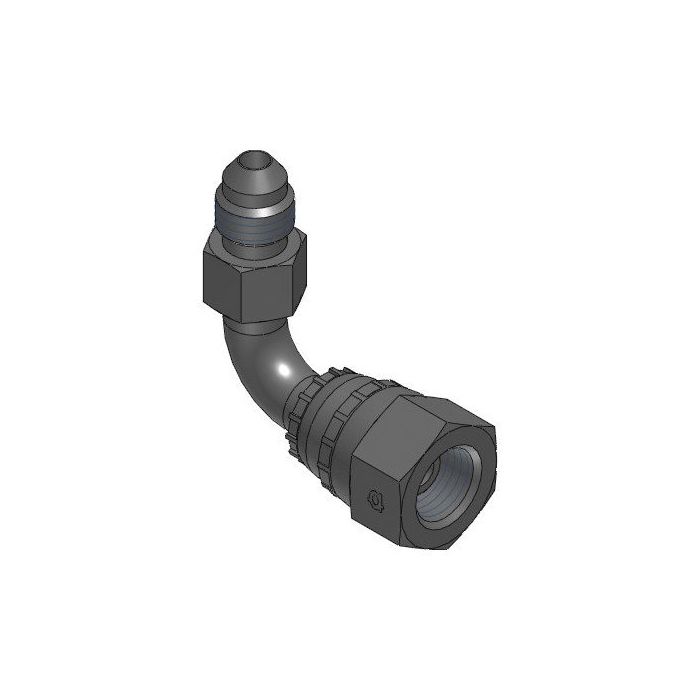

Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 1/4-19 Female BSPP (British Parallel), 90 deg Bent Tube Elbow

Description & Features

This steel adapter features a 7/16-20 Male JIC 37 deg Flare connection on one end and a 1/4-19 Female BSPP (British Parallel) thread on the other. Its 90-degree bent tube elbow design offers versatility in tight spaces.

Manufactured by Adaptall, this Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 1/4-19 Female BSPP (British Parallel), 90 deg Bent Tube Elbow ensures reliable connections in hydraulic applications.

SKU: 9250-04-04

Supplier Part Number (MPN): 9250-04-04

Alternate Part Numbers: C1FD56, MI-06778259, MINO-03671X00192

Specifications

Alternate Part Numbers Alternate Part Number C1FD56, Alternate Part Number MI-06778259, Alternate Part Number MINO-03671X00192	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9250-04-04	Thread 1 7/16-20	Thread 2 1/4-19	Thread Sealant No	Product Weight 0.10 lbs

Similar Products

Model Number	Thread 1	Thread 2	Price	Action
9250-06-06 Steel Male JIC To Female BSPP 90 Elbow	9/16-18	3/8-19
9250-04-04 Steel Male JIC To Female BSPP 90 Elbow	7/16-20	1/4-19

Product Questions & Answers (1)

Question by: Peggy P on Sep 26, 2025, 6:29 PM

trying to hook a #4 JIC line into a BSPP port, does this elbow do that or am i off base

Answer by: Customer Support on Sep 28, 2025, 6:26 PM

For that setup, this adapter matches a 7/16-20 male JIC 37 degree flare on one end and a 1/4-19 female BSPP (British Parallel) swivel on the other, so it is meant to bridge those two connection types in a 90 degree elbow.
