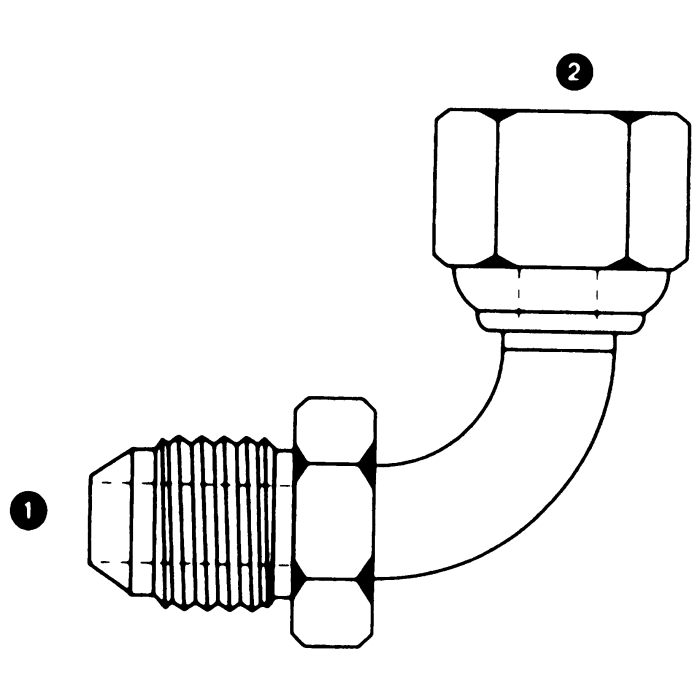

This Adaptall steel adapter features a 9/16-18 Male JIC 37 deg Flare connection on one end and a 3/8-19 Female BSPP (British Parallel) connection on the other. The 90-degree bent tube elbow design provides a compact and efficient solution for connecting hydraulic lines at a right angle.
This Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 3/8-19 Female BSPP (British Parallel), 90 deg Bent Tube Elbow is suitable for a variety of hydraulic applications.
SKU: 9250-06-06
Supplier Part Number (MPN): 9250-06-06
Alternate Part Numbers: C1FD57, MI-03231019, MINO-03671X86444
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1FD57, Alternate Part Number MI-03231019, Alternate Part Number MINO-03671X86444
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9250-06-06
Thread 1
9/16-18
Thread 2
3/8-19
Thread Sealant
No
Product Weight
0.15 lbs
Similar Products
Model Number
Thread 1
Thread 2
Price
Action
9250-06-06Steel Male JIC To Female BSPP 90 Elbow
9/16-18
3/8-19
9250-04-04Steel Male JIC To Female BSPP 90 Elbow
7/16-20
1/4-19
Product Questions & Answers (2)
Question by: Shane H on Oct 6, 2025, 6:16 PM
Got a line coming off a hydraulic valve that needs to turn 90 degrees before connecting to some imported equipment with BSPP ports. The other side of my line is JIC. this thing gonna work for that?
Answer by: Customer Support on Oct 8, 2025, 3:59 PM
Right-angle JIC to BSPP crossovers are exactly what this fitting is built for. One end is a 9/16-18 Male JIC 37-degree flare, the other is a 3/8-19 Female BSPP with a swivel, and the 90-degree elbow handles that direction change without needing a separate elbow fitting in the line. Pretty common setup when you're connecting North American hydraulic hydraulic connections to European or Asian equipment that runs BSPP ports.
Question by: Frank H on Oct 16, 2025, 6:14 PM
Will this fitting hold up for connecting hydraulic lines on a log splitter?
Answer by: Customer Support on Oct 18, 2025, 12:00 PM
Designed for a variety of hydraulic applications, this steel adapter should be suitable. It features a 9/16-18 Male JIC 37 deg Flare connection on one end and a 3/8-19 Female BSPP (British Parallel) connection on the other.
