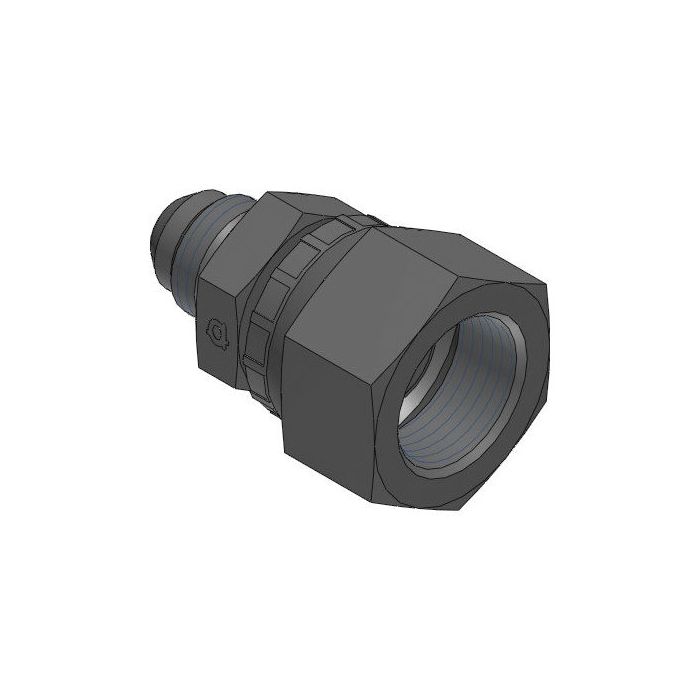

The Steel Adapter 3/4-16 Male JIC 37 deg Flare To M22 x 1.5 L Series Female Metric Swivel Straight is a top-tier component designed for seamless integration in industrial applications requiring precision connections between JIC and Metric fittings.
Crafted by Adaptall America this adapter features a reliable male 3/4-16 JIC 37-degree flare thread on one end and a robust female M22 x 1.5 L Series metric swivel on the opposite end.
It is ideal for high-pressure applications ensuring a secure and leak-free connection.
With Adaptall Americas commitment to engineering excellence the adapter guarantees durability and consistent performance.
Series: L
Thread 1: 3/4-16
Thread 2: M22 x 1.5
Thread Sealant: No
Product Model Label: Metric to 37 Flare Steel Adapters
Product Meta Description: Steel Adapter 3/4-16 Male JIC 37 deg Flare To M22 x 1.5 L Series Female Metric Swivel Straight
Product Page Title: ADAPTALL AMERICA Steel Male JIC To Female Metric Adapter 9022-10-L15-22
Supplier Part Number: 9022-10-L15-22
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1GM76, Alternate Part Number MI-02116202, Alternate Part Number MINO-03671J02544
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Series
L
Supplier Part Number
9022-10-L15-22
Thread 1
3/4-16
Thread 2
M22 x 1.5
Thread Sealant
No
Product Weight
0.25 lbs
Similar Products
Model Number
Thread 1
Thread 2
Series
Price
Action
9022-06-L08-14Steel Male JIC To Female Metric Adapter
9/16-18
M14 x 1.5
L
9022-06-L12-18Steel Male JIC To Female Metric Adapter
9/16-18
M18 x 1.5
L
9022-08-L15-22Steel Male JIC To Female Metric Adapter
3/4-16
M22 x 1.5
L
Product Questions & Answers (1)
Question by: Duane B on Aug 15, 2025, 1:22 PM
Will this here adapter work to connect a JIC flared fitting to a metric one?
Answer by: Customer Support on Aug 17, 2025, 6:12 AM
Yes, this Adaptall adapter is specifically designed to connect a 3/4-16 male JIC 37-degree flare fitting to a M22 x 1.5 L Series female metric swivel fitting.
