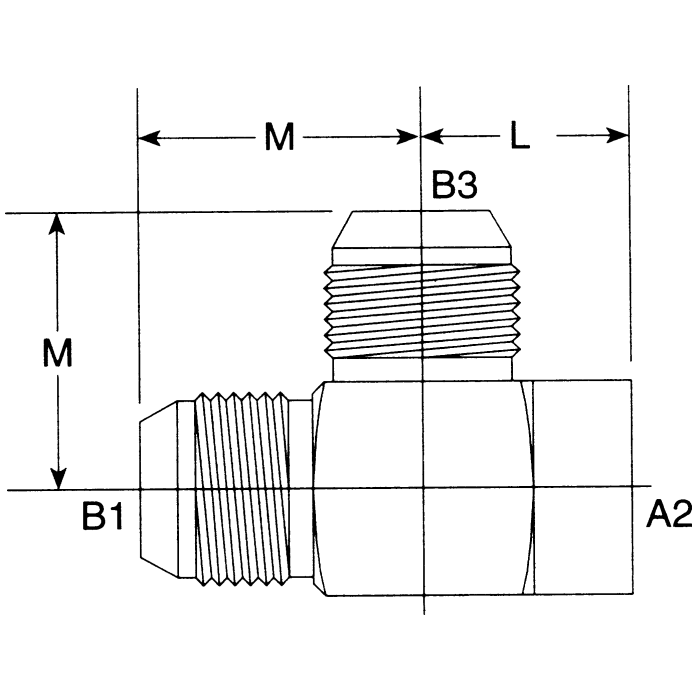

Steel Adapter, 7/8-14 Male JIC 37 deg Flare Run & Branch To 1/2-14 Female NPT Run, Tee

Ask A Question

Description & Features

Constructed from durable steel, this adapter serves as a reliable connection component for hydraulic systems requiring a transition between different thread types. The adapter features a 7/8-14 Male JIC 37-degree flare on both the run and branch sides, seamlessly integrating with 1/2-14 Female NPT on the run side. This tee configuration offers versatility in hydraulic setups, ensuring a secure and leak-resistant connection. The design of the adapter is tailored to meet demanding industrial applications, providing stability and longevity in operation.

Manufactured under OM Industrial Products Corp and branded by Brennan Industries, this adapter is a part of the Pipe to 37° Flare Steel Adapters range. Its compact dimensions, with a length of 1.23 inches and a height of 1.64 inches, make it suitable for use in space-constrained environments while maintaining robust performance. The precise threading ensures compatibility and ease of installation, making it an essential component for maintaining hydraulic efficiency.

SKU: 2606-10-08-10

Supplier Part Number (MPN): 2606-10-08-10-FG

Alternate Part Numbers: A2029-8-10S, C1FV66

Specifications

Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Size 3
5/8 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Female SAE NPTF
Connection Type 3
Male SAE 37 deg JIC
Dimension Standards
SAE J514, SAE J476
Dimensions
1.23 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.06 in
m Dimensions
1.64 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
2606-FG Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14 x 7/8-14
Tube Outside Diameter
0.63 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Glen O on Sep 16, 2025, 10:15 AM
trying to replace a tee i busted, is this the one that’s got 7/8-14 JIC on the straight run and a 1/2-14 female NPT off the side?
Answer by: Customer Support on Sep 18, 2025, 6:26 AM
Function-wise, yes. It is a steel tee adapter with 7/8-14 male JIC 37 degree flare on the run and branch, and a 1/2-14 female NPT on the run port.
Question by: Bonnie R on Dec 9, 2025, 8:26 AM
got a hydraulic line running 7/8-14 JIC on both ends of a tee and need to tap into it with a 1/2-14 NPT female port, this the right fitting for that setup?
Answer by: Customer Support on Dec 10, 2025, 11:21 AM
that lines up exactly with what this tee is built for. The run ports are both 7/8-14 Male JIC 37 degree flare, and the branch comes off as 1/2-14 Female NPT, so your inline JIC connections stay intact while you pull an NPT branch off the middle. Steel construction means it holds up in standard hydraulic hydraulic connections applications without a lot of fuss.
