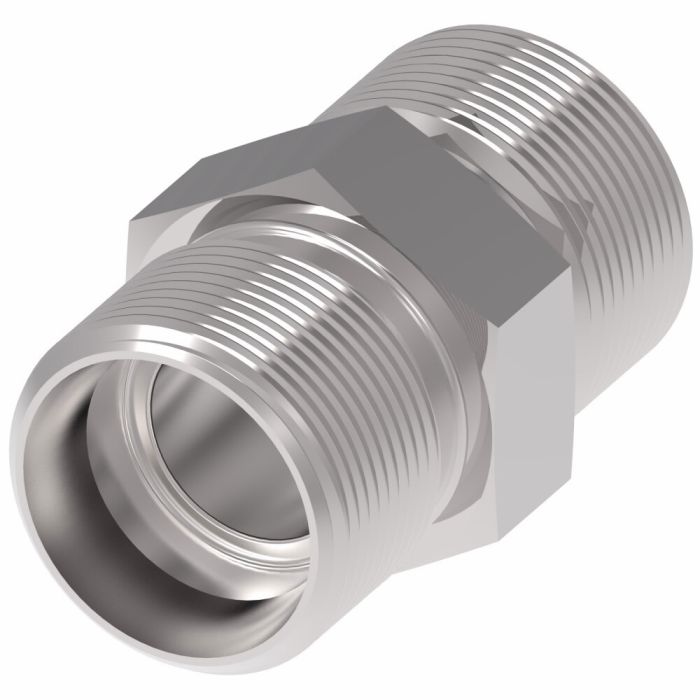

main product photo

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 7/8-14 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

Designed for straight union connections in hydraulic, instrumentation, and chemical processing systems, this Eaton Aeroquip 2027 Series steel adapter joins two 7/8-14 male JIC 37° flare fittings in a single inline configuration. The SAE 37° flare-to-flare design ensures a reliable metal-to-metal seal without the need for additional sealing compounds.

Built to Eaton Aeroquip's 2027 Series standards, the Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 7/8-14 Male JIC 37 deg Flare, Straight carries catalog number C1AW59 and is suited for use where equal-size JIC union connections are required. With an overall length (A dimension) of 1.88 inches, it fits compactly within tight assembly spaces.

SKU: 2027-10-10S

Supplier Part Number (MPN): 2027-10-10S

Alternate Part Numbers: C1AW59, MI-00311717, MINO-00015F61172

Specifications

Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE 070101/J514
Dimensions
1.88 in L
Finish
Dura-Kote™
Fitting Type
Union
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-65 to 400 deg F
Series
2027 Series
Thread Size
7/8-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Patty R on Aug 16, 2025, 7:38 AM
Got a busted union fitting on my hydraulic line and need a straight JIC-to-JIC replacement. This a male-to-male 7/8-14 on both ends?
Answer by: Customer Support on Aug 17, 2025, 2:55 PM
both ends are 7/8-14 male JIC with the 37-degree flare, so it functions as a union-style straight adapter connecting two female JIC fittings inline. It's part of Eaton Aeroquip's 2027 series, which covers exactly that kind of same-thread union application. If your existing setup has female JIC on both sides of the break, this should drop right in.
Question by: Peggy M on Dec 15, 2025, 6:43 AM
Just want to make sure, this fitting has the same size threads on both ends, right?
Answer by: Customer Support on Dec 17, 2025, 6:49 AM
That's correct. This adapter features 7/8-14 Male JIC 37 degree flare threads on both ends.
