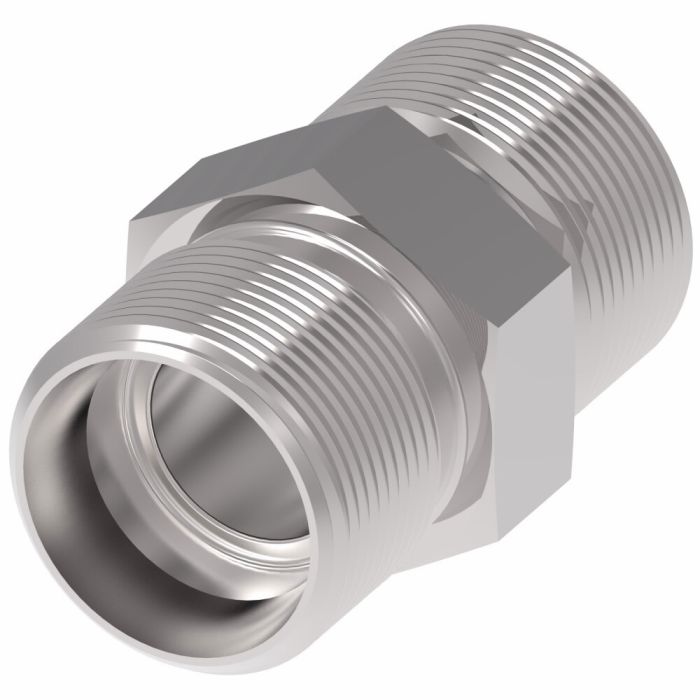

main product photo

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

This steel adapter facilitates connections in hydraulic, instrumentation, and chemical processing systems. This Eaton Aeroquip adapter features a 7/8-14 male JIC 37-degree flare to 9/16-18 male JIC 37-degree flare, arranged in a straight configuration.

SKU: 2027-10-6S

Supplier Part Number (MPN): 2027-10-6S

Alternate Part Numbers: C1AW60, MI-02059251, MINO-00015J90488

Specifications

Connection Size 1
5/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE 070101/J514
Dimensions
1.68 in L
Finish
Dura-Kote™
Fitting Type
Union
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-65 to 400 deg F
Series
2027 Series
Thread Size
7/8-14 x 9/16-18
Tube OD
3/8 in

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Darryl P on Mar 31, 2025, 8:23 PM
what's the thread size difference between the two ends on this adapter? tryin to figure out if it'll work between my hydraulic line and a smaller port fitting
Answer by: Customer Support on Apr 2, 2025, 5:23 PM
One end is 7/8-14 male JIC and the other is 9/16-18 male JIC, both with the standard 37 degree flare seat. So yeah, it steps down from the larger thread to the smaller one in a straight configuration. If your line and port match those two sizes, you're good to go.
Question by: Todd F on Mar 11, 2026, 3:21 PM
Will this adapter work alright for connecting two JIC flared fittings? Just makin' sure before I order.
Answer by: Customer Support on Mar 13, 2026, 6:22 AM
Yes, this adapter is designed to connect two SAE 37-degree flare fittings, which JIC fittings are based on. It'll provide a secure and reliable connection in hydraulic, instrumentation, and chemical processing systems.
Question by: Dwayne J on Apr 14, 2025, 2:30 PM
trying to hook up a 7/8-14 jic line to a 9/16-18 jic line, is this the right straight adapter for that?
Answer by: Customer Support on Apr 15, 2025, 6:37 PM
Function-wise, it is a straight union adapter that connects a 7/8-14 male JIC 37 degree flare on one end to a 9/16-18 male JIC 37 degree flare on the other.
