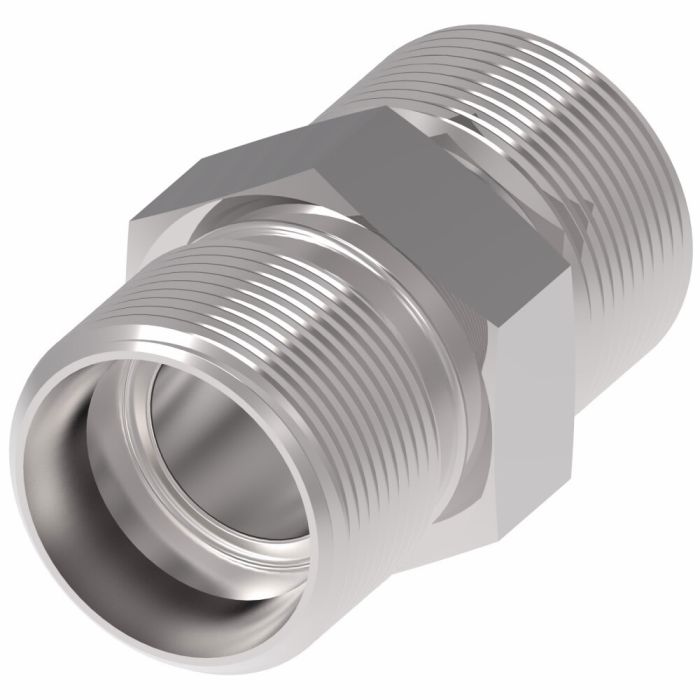

Steel Adapter, 3/4-16 Male JIC 37 deg Flare To 3/4-16 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

Designed for straight union connections in hydraulic, instrumentation, and chemical processing systems, this Eaton Aeroquip 2027 Series steel adapter joins two 3/4-16 Male JIC 37° flare fittings without transition in thread size or end type. The symmetrical configuration makes it well suited for in-line connections where a union point is needed between two male JIC lines.

Built to the SAE 37° flare standard, the Steel Adapter, 3/4-16 Male JIC 37 deg Flare To 3/4-16 Male JIC 37 deg Flare, Straight is part of Eaton Aeroquip's established 2027 Series union adapter line, offering consistent geometry and reliable sealing performance across a range of system pressures. The overall assembly length (A dimension) is 1.62 inches. Catalog reference C1AW80 applies.

SKU: 2027-8-8S

Supplier Part Number (MPN): 2027-8-8S

Alternate Part Numbers: 20011406, C1AW80, MI-00311701, MINO-00015F61170

Specifications

A
1.62
Alternate Part Numbers
Alternate Part Number 20011406, Alternate Part Number C1AW80, Alternate Part Number MI-00311701, Alternate Part Number MINO-00015F61170
Application
Other - Hydraulic, instrumentation, and chemical processing systems
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.75
End Size 2
0.75
End Type 1
SAE 37
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2027-8-8S
Thread 1
3/4-16
Thread 2
3/4-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.12 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, Straight

2027-12-12S Steel Male JIC To JIC Adapter

0.75

1-1/16-12

1-1/16-12

2.16

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 3/4-16 Male JIC 37 deg Flare, Straight

2027-12-8S Steel Male JIC To JIC Adapter

0.38

1-1/16-12

3/4-16

1.95

Steel Adapter, 1-7/8-12 Male JIC 37 deg Flare To 1-7/8-12 Male JIC 37 deg Flare, Straight

2027-24-24S Steel Male JIC To JIC Adapter

1.5

1-7/8-12

1-7/8-12

2.75

Steel Adapter, 3/4-16 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

2027-8-6S Steel Male JIC To JIC Adapter

0.38

3/4-16

9/16-18

1.52

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 7/8-14 Male JIC 37 deg Flare, Straight

2027-10-10S Steel Male JIC To JIC Adapter

0.63

7/8-14

7/8-14

1.88

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

2027-10-6S Steel Male JIC To JIC Adapter

0.38

7/8-14

9/16-18

1.68

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 3/4-16 Male JIC 37 deg Flare, Straight

2027-10-8S Steel Male JIC To JIC Adapter

0.5

7/8-14

3/4-16

1.78

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 7/8-14 Male JIC 37 deg Flare, Straight

2027-12-10S Steel Male JIC To JIC Adapter

0.61

1-1/16-12

7/8-14

2.05

Steel Adapter, 1-5/16-12 Male JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, Straight

2027-16-12S Steel Male JIC To JIC Adapter

0.75

1-5/16-12

1-1/16-12

2.2

Steel Adapter, 1-5/16-12 Male JIC 37 deg Flare To 1-5/16-12 Male JIC 37 deg Flare, Straight

2027-16-16S Steel Male JIC To JIC Adapter

1

1-5/16-12

1-5/16-12

2.25

Steel Adapter, 1-5/8-12 Male JIC 37 deg Flare To 1-5/16-12 Male JIC 37 deg Flare, Straight

2027-20-16S Steel Male JIC To JIC Adapter

1-5/8-12

1-5/16-12

Steel Adapter, 1-5/8-12 Male JIC 37 deg Flare To 1-5/8-12 Male JIC 37 deg Flare, Straight

2027-20-20S Steel Male JIC To JIC Adapter

1.25

1-5/8-12

1-5/8-12

2.43

Steel Adapter, 3/8-24 Male JIC 37 deg Flare To 3/8-24 Male JIC 37 deg Flare, Straight

2027-3-3S Steel Male JIC To JIC Adapter

0.19

3/8-24

3/8-24

1.23

Steel Adapter, 2-1/2-12 Male JIC 37 deg Flare To 2-1/2-12 Male JIC 37 deg Flare, Straight

2027-32-32S Steel Male JIC To JIC Adapter

2

2-1/2-12

2-1/2-12

3.4

Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

2027-4-4S Steel Male JIC To JIC Adapter

0.25

7/16-20

7/16-20

1.37

Steel Adapter, 1/2-20 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

2027-5-4S Steel Male JIC To JIC Adapter

1/2-20

7/16-20

1.37

Steel Adapter, 1/2-20 Male JIC 37 deg Flare To 1/2-20 Male JIC 37 deg Flare, Straight

2027-5-5S Steel Male JIC To JIC Adapter

0.31

1/2-20

1/2-20

1.37

Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

2027-6-4S Steel Male JIC To JIC Adapter

7/16-20

9/16-18

1.4

Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 1/2-20 Male JIC 37 deg Flare, Straight

2027-6-5S Steel Male JIC To JIC Adapter

9/16-18

1/2-20

1.4

Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

2027-6-6S Steel Male JIC To JIC Adapter

0.38

9/16-18

9/16-18

1.41

Steel Adapter, 3/4-16 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

2027-8-4S Steel Male JIC To JIC Adapter

3/4-16

7/16-20

1.51

Steel Adapter, 3/4-16 Male JIC 37 deg Flare To 3/4-16 Male JIC 37 deg Flare, Straight

2027-8-8S Steel Male JIC To JIC Adapter

0.5

3/4-16

3/4-16

1.62

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

2403-10-04 Steel Male JIC To JIC Adapter

7/8-14

7/16-20

1.67

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

2403-12-06 Steel Male JIC To JIC Adapter

1-1/16-12

9/16-18

1.87

Steel Adapter, 1-3/16-12 Male JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, Straight

2403-14-12 Steel Male JIC To JIC Adapter

1-3/16-12

1-1/16-12

2.18

Product Questions & Answers (2)

Question by: Sheila S on May 3, 2025, 3:26 PM
i've got two hoses that are both 3/4-16 jic male ends. is this the straight union that ties em together?
Answer by: Customer Support on May 5, 2025, 2:47 PM
Function-wise, it is a straight union adapter that connects a 3/4-16 male JIC 37 degree flare on one side to a 3/4-16 male JIC 37 degree flare on the other, so it is meant for joining two matching JIC flare connections in-line.
Question by: Curt L on Sep 30, 2025, 7:43 PM
Will this fitting work for connecting two 3/4-16 JIC lines?
Answer by: Customer Support on Oct 2, 2025, 9:52 AM
That's precisely what this adapter is for. It's designed as a union to connect two SAE 37˚ Flare/SAE 37˚ Flare lines, both sized at 3/4-16.
