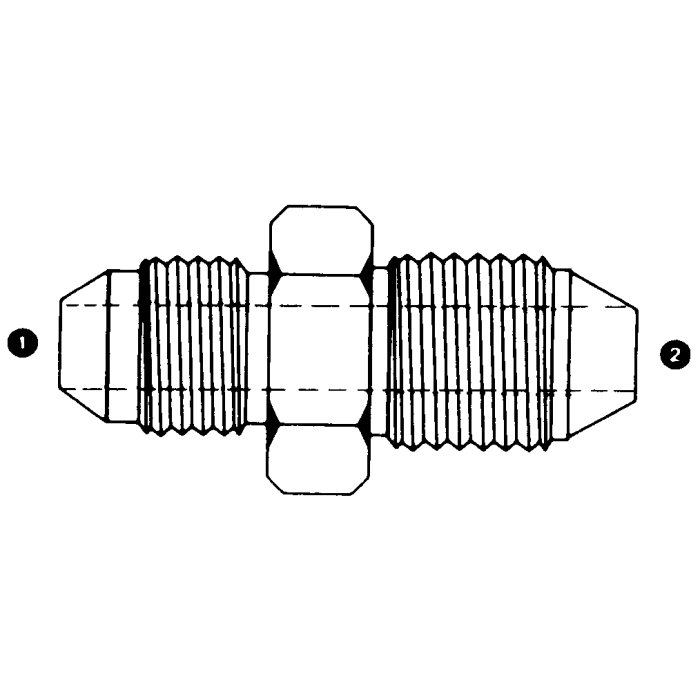

Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 1/4-19 Male JIS 30 deg Flare Seat (BSPP Thread), Straight

Ask A Question

Description & Features

This steel adapter seamlessly connects a 7/16-20 Male JIC 37-degree flare fitting to a 1/4-19 Male JIS 30-degree flare seat with BSPP threading. Ideal for industrial applications requiring reliable and robust connections, this straight adapter ensures compatibility with diverse hydraulic systems. The precision-engineered design by Adaptall guarantees a secure fit and optimal performance under demanding conditions.

Constructed from durable steel, the adapter offers excellent resistance to wear and corrosion, making it a trusted choice for high-pressure environments. Featuring a JIS 30° seat and a JIC 37° flare, it provides a versatile solution for connecting different international standards. Whether you're in manufacturing, automotive, or any sector requiring fluid power solutions, this adapter bridges the gap between varied fittings efficiently.

SKU: 9337-04-04

Supplier Part Number (MPN): 9337-04-04

Alternate Part Numbers: C1FM43, MI-02116415, MINO-03671J02751

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male JIS
Connection Type 1
Male JIC
Connection Type 2
Male JIS
Dimension Standards
JIS B 0202, SAE J514
Dimensions
39.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9337 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20 x 1/4-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Shawn B on Nov 17, 2025, 6:33 AM
Will this adapter work to connect a Japanese fitting to something using JIC?
Answer by: Customer Support on Nov 18, 2025, 3:49 PM
This adapter is designed to connect a 7/16-20 Male JIC 37-degree flare fitting to a 1/4-19 Male JIS 30-degree flare seat with BSPP threading. It's meant for bridging those two specific types.
Question by: Duane R on Mar 18, 2026, 9:28 PM
got a piece of equipment that's running JIC on one end and JIS on the other, this the right part to tie those together?
Answer by: Customer Support on Mar 20, 2026, 9:23 AM
That's what this adapter is built for. One end is a 7/16-20 Male JIC 37-degree flare and the other is a 1/4-19 Male JIS 30-degree flare seat with BSPP threading. Both ends are male, so you'd be threading this into female JIC and female JIS ports respectively. Adaptall makes it straight, no angle, so it works clean in tight runs where you just need a direct bridge between those two standards.
