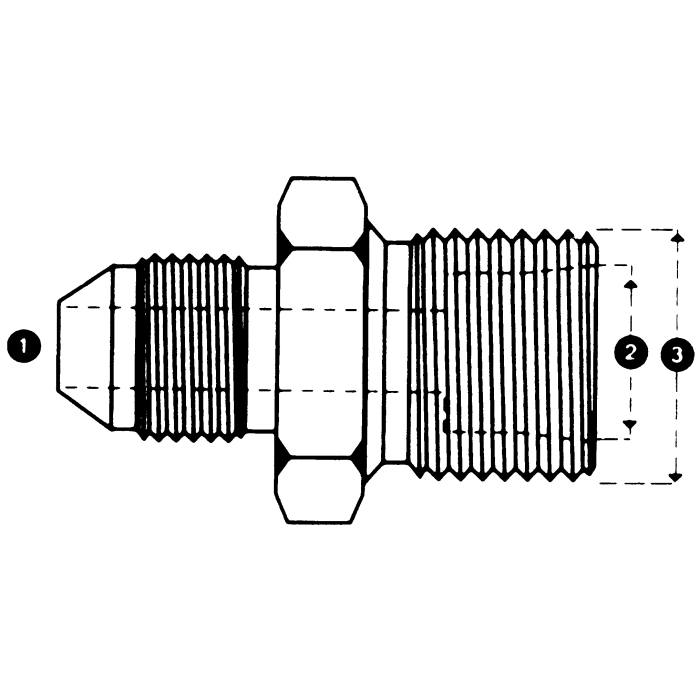

Designed for connecting hydraulic lines in Komatsu and Kobelco equipment, the Steel Adapter, 1-1/16-12 Male JIC 37 Deg Flare To M36 x 1.5 Male Kobelco, Straight provides a reliable straight-configuration transition between a 1-1/16-12 Male JIC 37° flare thread and an M36 x 1.5 Male Kobelco thread. The 28mm tube O.D. on the secondary end ensures compatibility with the appropriate line sizing used in these machine platforms.
Manufactured by Adaptall in steel construction, this fitting is suited for hydraulic systems found on excavators and heavy construction equipment where Kobelco-pattern connections are standard. The straight body configuration simplifies routing in applications where a direct in-line connection is required between JIC and Kobelco threaded ports.
SKU: 9247-12-28-36
Supplier Part Number (MPN): 9247-12-28-36
Alternate Part Numbers: C1ZT57, MI-02116414, MINO-03671J02750
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1ZT57, Alternate Part Number MI-02116414, Alternate Part Number MINO-03671J02750
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9247-12-28-36
Thread 1
1-1/16-12
Thread 3
M36 x 1.5
Thread Sealant
No
Tube O.D. 2
28
Product Weight
0.50 lbs
Similar Products
Model Number
Thread 1
Tube O.D. 2
Thread 3
Price
Action
9247-12-28-36Steel Male JIC To Kobelco Adapter
1-1/16-12
28
M36 x 1.5
9247-16-35-45Steel Male JIC To Kobelco Adapter
1-5/16-12
35
M45 x 1.5
Product Questions & Answers (1)
Question by: Bonnie R on Feb 18, 2026, 1:56 PM
got a Kobelco excavator and need to tie into a JIC line off the pump, this adapter, it's going straight male to male on both ends?
Answer by: Customer Support on Feb 20, 2026, 6:00 AM
Correct on both counts. One end is a 1-1/16-12 Male JIC with a 37 degree flare, and the other is M36 x 1.5 Male Kobelco thread. Both ends are male, so you'll be threading into female ports on each side. The straight configuration means no offset or angle, just a clean inline connection between those two thread types.
