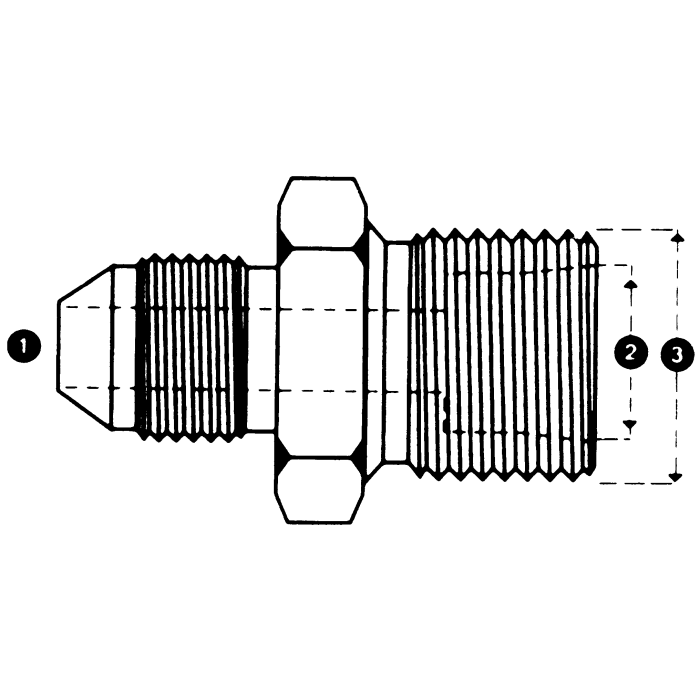

Steel Adapter, 1-5/16-12 Male JIC 37 deg Flare To M45 x 1.5 Male Kobelco, Straight

Description & Features

This steel adapter connects different hydraulic fitting types in fluid transfer systems. It adapts a 1-5/16-12 Male JIC 37 deg Flare to a M45 x 1.5 Male Kobelco fitting, with a straight body style.

The Adaptall C1ZT56 adapter is part of the Komatsu and Kobelco Fittings product model line.

SKU: 9247-16-35-45

Supplier Part Number (MPN): 9247-16-35-45

Alternate Part Numbers: C1ZT56, MI-02205983, MINO-03671X84948

Specifications

Alternate Part Numbers Alternate Part Number C1ZT56, Alternate Part Number MI-02205983, Alternate Part Number MINO-03671X84948	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9247-16-35-45	Thread 1 1-5/16-12	Thread 3 M45 x 1.5	Thread Sealant No	Tube O.D. 2 35	Product Weight 0.90 lbs

Similar Products

Model Number	Thread 1	Tube O.D. 2	Thread 3	Price	Action
9247-12-28-36 Steel Male JIC To Kobelco Adapter	1-1/16-12	28	M36 x 1.5
9247-16-35-45 Steel Male JIC To Kobelco Adapter	1-5/16-12	35	M45 x 1.5

Product Questions & Answers (1)

Question by: Larry E on Jan 31, 2026, 12:47 PM

Got a Kobelco excavator that needs a new fitting where the JIC line ties in, this the right adapter to make that jump from 1-5/16-12 JIC to the M45 x 1.5 Kobelco port?

Answer by: Customer Support on Feb 1, 2026, 6:14 PM

That's exactly what this one's built for. One end is a 1-5/16-12 Male JIC 37-degree flare, and the other is M45 x 1.5 Male Kobelco thread. It's a straight configuration, so no angle change at the connection point. Adaptall makes these to fit Kobelco and Komatsu hydraulic applications specifically, and the SKU 9247-16-35-45 lines up with their catalog number C1ZT56 for that thread pairing.
