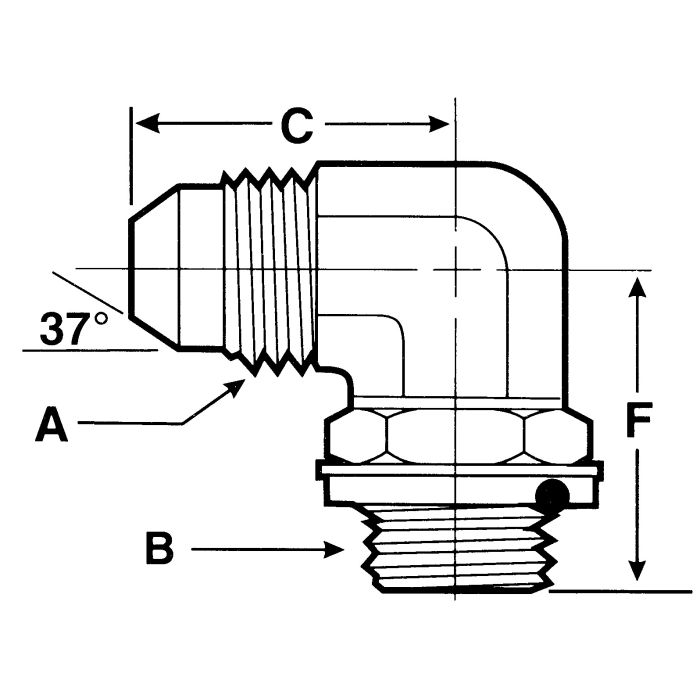

Designed for hydraulic systems requiring a directional change at the connection point, this 90-degree elbow adapter transitions between a 3/4-16 Male JIC 37° flare fitting and an M22 x 1.5 male metric thread. The Steel Adapter, 3/4-16 Male JIC 37 deg Flare To M22 x 1.5 Male Metric Thread, 90 deg Elbow is manufactured from steel and sourced from Fluid Routing Solutions, a recognized supplier of hydraulic fittings and adapters.
The JIC 37° flare end conforms to standard SAE flare fitting geometry, making it compatible with common hydraulic line configurations. With a 0.5-inch tube OD reference and catalog number C1DB51, this fitting suits applications where JIC and metric threaded connections must interface in a compact, angled arrangement.
SKU: JM0822-90
Supplier Part Number (MPN): JM0822-90
Alternate Part Numbers: C1DB51, MI-08750509, MINO-00902X78550
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1DB51, Alternate Part Number MI-08750509, Alternate Part Number MINO-00902X78550
C
1.33
Brand
Fluid Routing Solutions, Inc
Brand
Fluid Routing Solutions
Pack Size
1.00
UOM
EA
F
1.70
Supplier Part Number
JM0822-90
Thread 1
3/4-16
Thread 2
M22 x 1.5
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.38 lbs
Similar Products
Model Number
Tube O.D.
Thread 1
Thread 2
C
F
Price
Action
9069-12-27Steel Male JIC To Metric 90 Elbow
0.75
1-1/16 -12
M27 X 2.0
1.94
1.61
JM0822-90Steel Male JIC To Metric 90 Elbow
0.5
3/4-16
M22 x 1.5
1.33
1.7
Product Questions & Answers (1)
Question by: Diane G on Oct 12, 2025, 10:23 AM
Got a machine that's running M22 x 1.5 metric ports but my hydraulic lines are JIC 37 degree flare, this elbow gonna bridge that gap without needing extra adapters stacked together?
Answer by: Customer Support on Oct 14, 2025, 6:57 AM
That's what this fitting is built for. One end is 3/4-16 male JIC 37 degree flare and the other is M22 x 1.5 male metric thread, so you're making that transition in a single piece. The 90 degree angle also means you're not fighting a straight adapter in a tight spot, you get your directional change right at the connection point. No stacking required.
