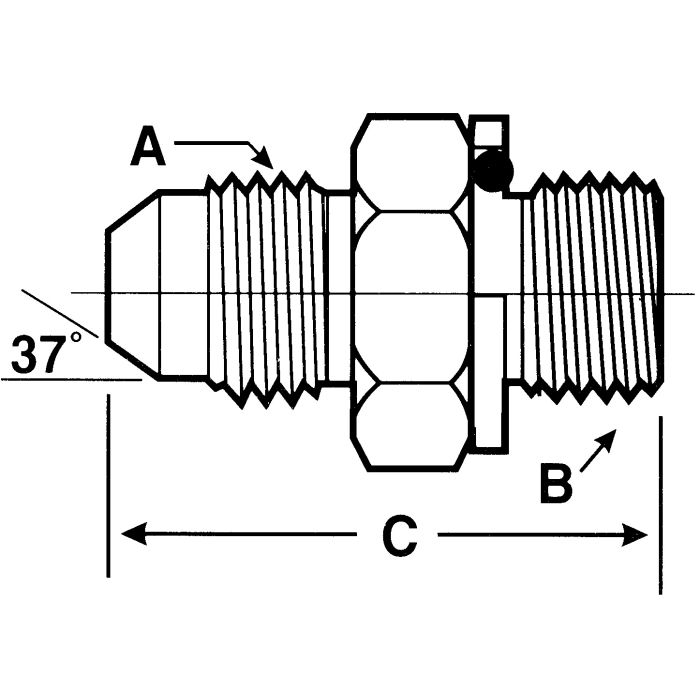

Manufactured by Air-Way Manufacturing, this zinc-plated steel adapter connects a 7/16-20 Male JIC 37° flare fitting to an M10 x 1 male metric thread in a straight configuration. The zinc plating provides corrosion resistance suited to hydraulic systems operating in demanding industrial environments.
The Steel Adapter, 7/16-20 Male JIC 37 deg Flare To M10 x 1 Male Metric Thread, Straight is commonly used where JIC and metric hydraulic lines must be joined without additional fittings or fabrication. With a tube O.D. of 0.25 inches and an overall length (C dimension) of 1.18 inches, it is a compact, direct-connection solution for mixed-standard hydraulic assemblies.
Also sold under catalog number C1DB37 and compatible with equipment referencing part numbers MI-00339346 and MINO-00902F78399.
SKU: JM0410
Supplier Part Number (MPN): M6400-0691
Alternate Part Numbers: C1DB37, MI-00339346, MINO-00902F78399
Specifications
Alternate Part Numbers
Alternate Part NumberC1DB37, Alternate Part Number M6400-0691, Alternate Part Number MI-00339346, Alternate Part Number MINO-00902F78399
C
1.18
Brand
Air-Way Manufacturing Company
Brand
Air-Way Manufacturing Company
Pack Size
0.00
UOM
EA
Supplier Part Number
M6400-0691
Thread 1
7/16-20
Thread 2
M10 x 1
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.07 lbs
Similar Products
Model Number
Tube O.D.
Thread 1
Thread 2
C
Price
Action
JM0410Steel Male JIC To Metric Adapter
0.25
7/16-20
M10 x 1
1.18
JM1020Steel Male JIC To Metric Adapter
0.63
7/8-14
M20 x 1.5
1.71
Product Questions & Answers (2)
Question by: Janet L on May 2, 2025, 2:19 PM
I'm hooking up some lines on an older machine, and one side's metric while the other is JIC. Will this adapter let me connect 'em straight up?
Answer by: Customer Support on May 4, 2025, 6:01 AM
Yes, this adapter directly joins a 7/16-20 Male JIC 37° flare fitting to an M10 x 1 male metric thread. It eliminates the need for extra fittings or custom work when connecting these two types of hydraulic lines.
Question by: Brett C on Jun 8, 2025, 7:59 AM
Got a metric port on a piece of equipment and need to tie into a JIC line, this a straight shot or is there anything in between I'd need?
Answer by: Customer Support on Jun 10, 2025, 6:01 AM
Straight connection, nothing extra needed. One end is 7/16-20 male JIC with a 37-degree flare, the other is M10 x 1 male metric thread. Both ends thread directly into their respective ports, so you're not adding any intermediate fittings or fabrication to the assembly. Overall length is 1.18 inches, so it stays compact in tight spaces.
