Manufactured by Fluid Routing Solutions, this Steel Adapter, 7/16-20 Male JIC 37 deg Flare To Metric Stand Pipe, Straight provides a reliable straight connection between a 7/16-20 male JIC 37-degree flare thread and a metric stand pipe. With a tube O.D. of 0.38 inches, it is suited for hydraulic systems where JIC and metric tube connections must be joined without additional fittings or adapters in between.
Constructed from steel for durability in demanding hydraulic environments, this adapter is part of Fluid Routing Solutions' Metric to 37° Flare Steel Adapter line. The straight configuration keeps routing compact and straightforward where space and alignment allow.
SKU: JT0406
Supplier Part Number (MPN): JT0406
Alternate Part Numbers: C1EE16, MI-04533313, MINO-00902X80329
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1EE16, Alternate Part Number MI-04533313, Alternate Part Number MINO-00902X80329

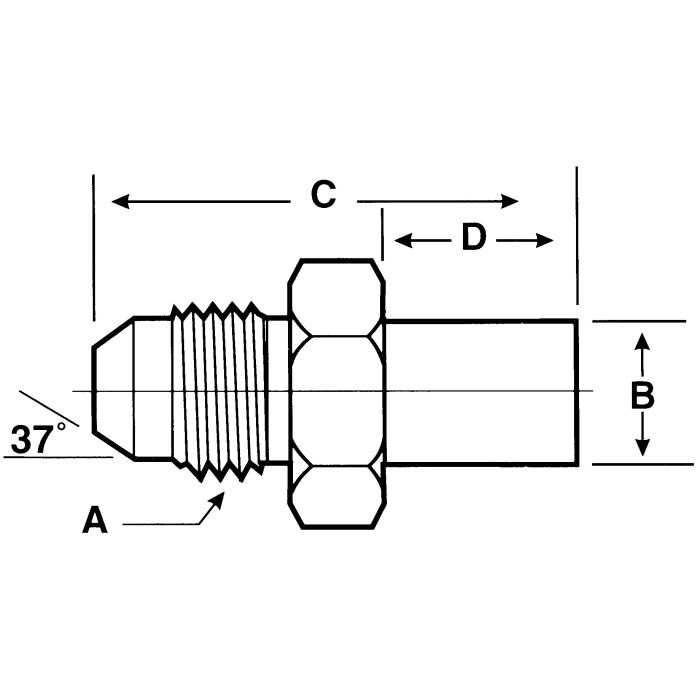

B
6
C
1.58
D
0.75
Brand
Fluid Routing Solutions, Inc
Brand
Fluid Routing Solutions
Pack Size
1.00
UOM
EA
Supplier Part Number
JT0406
Thread 1
7/16-20
Thread Sealant
No
Tube O.D.
0.38
Tube O.D.
0.38
Product Weight
0.04 lbs
Similar Products
Model Number
Tube O.D.
Thread 1
B
C
D
Price
Action
JT0406Steel Male JIC To Stand Pipe Adapter
0.38
7/16-20
6
1.58
0.75
JT1015Steel Male JIC To Stand Pipe Adapter
0.63
7/8-14
15
2.03
0.91
JT1625Steel Male JIC To Stand Pipe Adapter
1
1-5/16-12
25
2.54
1.22
Product Questions & Answers (3)
Question by: Brent L on Aug 22, 2025, 7:40 AM
got a metric stand pipe on an older piece of equipment and need to tie into a JIC line, this straight adapter from Fluid Routing Solutions gonna work for that?
Answer by: Customer Support on Aug 24, 2025, 6:03 AM
That's exactly the application this fitting is built for. One end threads onto a 7/16-20 male JIC 37-degree flare, and the other connects to a metric stand pipe with a 0.38-inch tube O.D. The straight configuration keeps things clean when your routing is already aligned, so no extra bends or intermediate fittings needed in between.
Question by: Travis W on Jan 30, 2026, 7:34 PM
What size tubing does this adapter work with? I need to make sure it's gonna fit right.
Answer by: Customer Support on Jan 31, 2026, 8:06 PM
This adapter is designed for tubing with an outer diameter of 0.38 inches. Verify this matches your system's requirements before installation.
Question by: Glen F on Jul 2, 2025, 11:31 AM
trying to hook a 7/16-20 JIC line to a metric stand pipe, is that what this adapter’s for?
Answer by: Customer Support on Jul 3, 2025, 2:05 PM
Built for that exact mix, it gives you a straight connection from a 7/16-20 male JIC 37 degree flare thread over to a metric stand pipe so you can join those two styles without stacking extra adapters.
