Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-1/4-11-1/2 Male NPT, 90 deg Elbow

Description & Features

Manufactured by Brennan Industries, this steel pipe-to-pipe adapter provides a 90-degree change of direction between two 1-1/4-11-1/2 Male NPT connections. The Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-1/4-11-1/2 Male NPT, 90 deg Elbow is suited for hydraulic and industrial line routing where same-size male NPT fittings on both ports are required at a right angle.

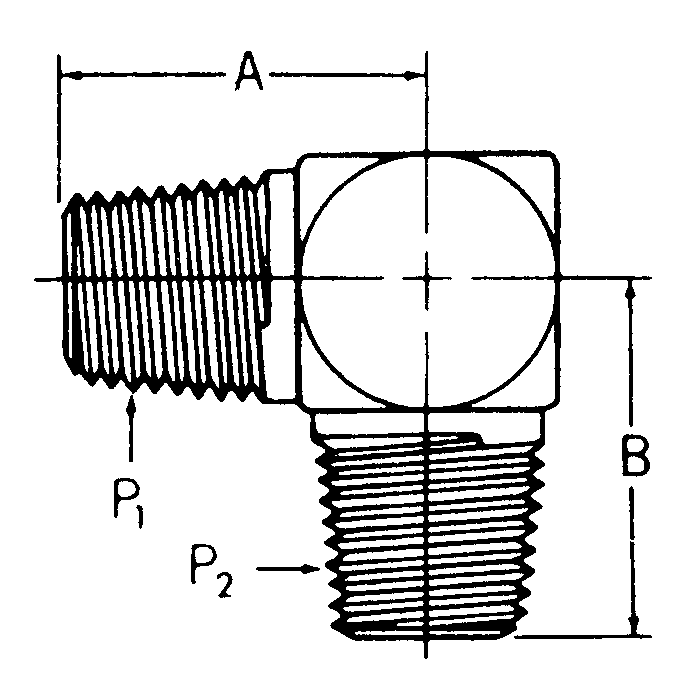

Both threaded ends share identical 1-1/4-11-1/2 NPT specifications, with A and B dimensions of 2.38 inches respectively. Steel construction provides the durability expected in demanding hydraulic and fluid power environments.

SKU: 5500-20-20

Supplier Part Number (MPN): 5500-20-20-FG

Specifications

A 2.38	B 2.38	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 5500-20-20-FG	Thread 1 1-1/4-11-1/2	Thread 2 1-1/4-11-1/2	Thread Sealant No	Product Weight 1.25 lbs

Similar Products

Model Number	Thread 1	Thread 2	A	B
2085-12-12S Steel Male NPT 90 deg Elbow	3/4-14	3/4-14	1.59	1.59
2085-12-8S Steel Male NPT 90 deg Elbow	3/4-14	1/2-14	1.5	1.54
2085-16-16S Steel Male NPT 90 deg Elbow	1-11-1/2	1-11-1/2	1.97	1.97
2085-6-6S Steel Male NPT 90 deg Elbow	3/8-18	3/8-18	1.22	1.22
2085-8-8S Steel Male NPT 90 deg Elbow	1/2-14	1/2-14	1.47	1.47
2085-2-2S Steel Male NPT 90 deg Elbow	1/8-27	1/8-27	0.76	0.78
2085-4-4S Steel Male NPT 90 deg Elbow	1/4-18	1/4-18	1.09	1.09
2085-6-4S Steel Male NPT 90 deg Elbow	3/8-18	1/4-18	1.22	1.22
2085-8-6S Steel Male NPT 90 deg Elbow	1/2-14	3/8-18	1.47	1.25
5500-04-02 Steel Male NPT 90 deg Elbow	1/4-18	1/8-27	1.09	0.84
5500-08-04 Steel Male NPT 90 deg Elbow	1/2-14	1/4-18	1.47	1.28
5500-20-20 Steel Male NPT 90 deg Elbow	1-1/4-11-1/2	1-1/4-11-1/2	2.38	2.38
