Steel Adapter, 1/2-14 Male NPT To 0.50 Hose Barb, 90 deg Elbow

Description & Features

Designed for routing hydraulic or fluid lines at a right angle, the Steel Adapter, 1/2-14 Male NPT To 0.50 Hose Barb, 90 deg Elbow transitions a 1/2-14 male NPT threaded connection to a 0.50" hose barb in a compact 90-degree elbow configuration. Manufactured in steel, this Brennan Industries fitting is suited for industrial fluid systems where directional routing is needed without additional fittings or assemblies.

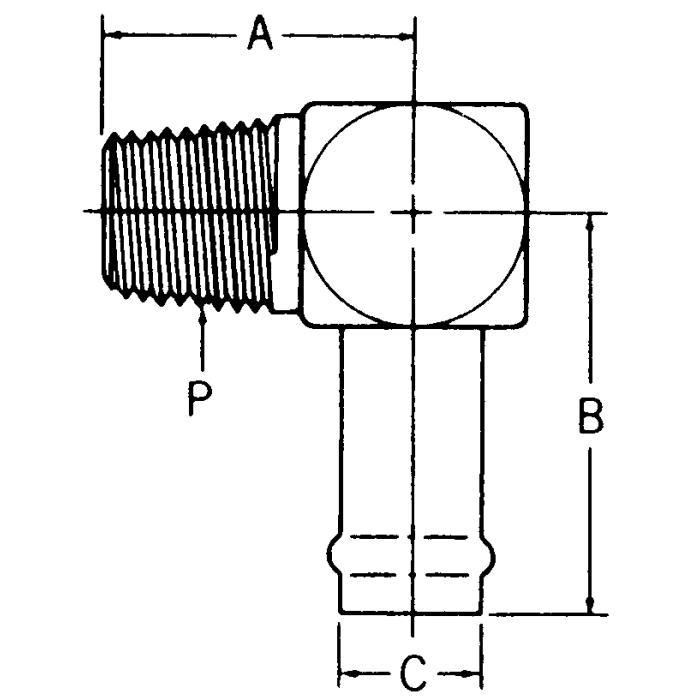

The barb end accepts 1/2" I.D. hose, while the NPT thread provides a reliable connection to standard pipe-threaded ports. With an A dimension of 1.47" and a B dimension of 1.98", the fitting maintains a low-profile footprint where space is limited. The 90-degree elbow geometry makes it well suited for installations where straight adapters would conflict with adjacent components or enclosures.

SKU: 4501-08-08

Supplier Part Number (MPN): 4501-08-08-FG

Specifications

A 1.47	B 1.98	C 0.50	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Hose I.D. 0.50	Supplier Part Number 4501-08-08-FG	Thread 1 1/2-14	Thread Sealant No	Product Weight 0.25 lbs

Similar Products

Model Number	Hose I.D.	Thread 1	A	B	C
4501-24-24-FG Steel Male NPT To Barb 90 Elbow	1.5	1-1/2-11-1/2	2.64	2.5	1.5
4501-12-08 Steel Male NPT To Barb 90 Elbow	0.75	1/2-14	1.97	1.47	0.75
FF1162-1212S Steel Male NPT To Barb 90 Elbow	0.75	3/4-14	1.5	2.06	0.75
FF1162-1616S Steel Male NPT To Barb 90 Elbow	1	1-11-1/2	1.95	2.19	1
4501-08-06 Steel Male NPT To Barb 90 Elbow	0.5	3/8-18	1.22	1.91	0.5
4501-08-08 Steel Male NPT To Barb 90 Elbow	0.5	1/2-14	1.47	1.98	0.5
4501-10-08 Steel Male NPT To Barb 90 Elbow	0.63	1/2-14	1.47	1.97	0.63
4501-16-12 Steel Male NPT To Barb 90 Elbow	1	3/4-14	1.6	2.08	1
4501-20-20 Steel Male NPT To Barb 90 Elbow	1.25	1-1/4-11-1/2	2.38	2.38	1.25
