Steel Adapter, 3/4-14 Male NPT To 1.00 Hose Barb, 90 deg Elbow

Description & Features

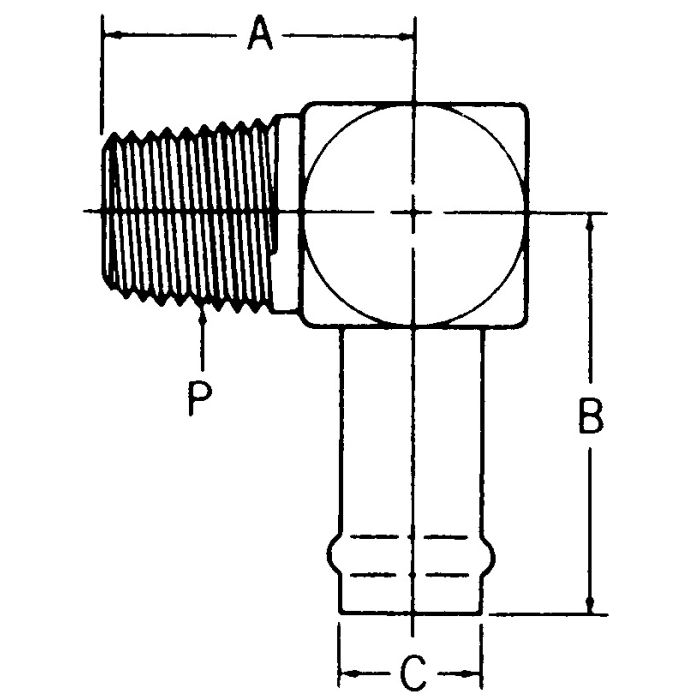

This steel adapter features a 3/4-14 male NPT to 1.00 hose barb connection and a 90-degree elbow configuration. The fitting is part of the Pipe To Hose Adapters product model line. Dimensions include an A measurement of 1.6 inches, a B measurement of 2.08 inches, and a C measurement of 1 inch. This Steel Adapter, 3/4-14 Male NPT To 1.00 Hose Barb, 90 deg Elbow, is identified by catalog number C1DX39.

SKU: 4501-16-12

Supplier Part Number (MPN): 4501-16-12-FG

Specifications

A 1.60	B 2.08	C 1	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Hose I.D. 1	Supplier Part Number 4501-16-12-FG	Thread 1 3/4-14	Thread Sealant No	Product Weight 0.66 lbs

Similar Products

Model Number	Hose I.D.	Thread 1	A	B	C
4501-24-24-FG Steel Male NPT To Barb 90 Elbow	1.5	1-1/2-11-1/2	2.64	2.5	1.5
4501-12-08 Steel Male NPT To Barb 90 Elbow	0.75	1/2-14	1.97	1.47	0.75
FF1162-1212S Steel Male NPT To Barb 90 Elbow	0.75	3/4-14	1.5	2.06	0.75
FF1162-1616S Steel Male NPT To Barb 90 Elbow	1	1-11-1/2	1.95	2.19	1
4501-08-06 Steel Male NPT To Barb 90 Elbow	0.5	3/8-18	1.22	1.91	0.5
4501-08-08 Steel Male NPT To Barb 90 Elbow	0.5	1/2-14	1.47	1.98	0.5
4501-10-08 Steel Male NPT To Barb 90 Elbow	0.63	1/2-14	1.47	1.97	0.63
4501-16-12 Steel Male NPT To Barb 90 Elbow	1	3/4-14	1.6	2.08	1
4501-20-20 Steel Male NPT To Barb 90 Elbow	1.25	1-1/4-11-1/2	2.38	2.38	1.25

Product Questions & Answers (1)

Question by: Darryl B on May 17, 2025, 10:41 AM

Will this fitting hold up okay for hooking up a fuel line? Just wanna make sure it's tough enough.

Answer by: Customer Support on May 19, 2025, 6:39 AM

This steel adapter is designed for connecting pipes to hoses, offering a robust connection point with its steel construction. It should hold up to typical fuel line pressures, but be sure to check your fuel type for compatibility with steel.
