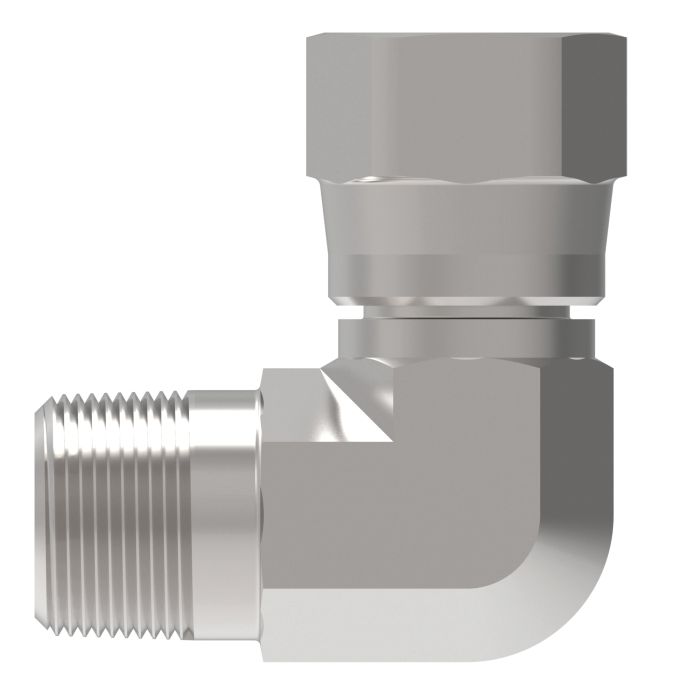

main product photo

Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

Ask A Question

Description & Features

Part of the Eaton Aeroquip 2250 Series, this Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Female JIC 37 deg Flare Swivel, 90 deg Elbow connects NPTF external pipe threads to SAE 37-degree flare swivel fittings at a 90-degree angle, making it well-suited for routing hydraulic lines in tight or constrained installations. The swivel end allows for rotational adjustment during assembly, reducing stress on connected lines and simplifying alignment in congested assemblies.

Rated for demanding industrial environments, this adapter is suited for use across marine and military, chemical processing, pulp and paper, food and beverage processing, and offshore drilling applications. Steel construction provides durability under the pressure and exposure conditions common to these industries. Catalog number C1BD47 is used for cross-referencing within Eaton Aeroquip documentation.

SKU: 2250-12-12S

Supplier Part Number (MPN): 2250-12-12S

Alternate Part Numbers: C1BD47, MI-00318691, MINO-00015F65142

Specifications

A
1.50
Alternate Part Numbers
Alternate Part Number C1BD47, Alternate Part Number MI-00318691, Alternate Part Number MINO-00015F65142
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.01
Drop Dimension
1.19
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.75
End Type 1
NPTF
End Type 2
SAE 37
Hex Size 2
1.25
Minimum Working Temperature
-65
Supplier Part Number
2250-12-12S
Thread 1
3/4-14
Thread 2
1-1/16-12
Thread Sealant
No
Tube O.D.
0.75
Tube O.D.
0.75
Product Weight
0.59 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-12-12S Steel Male NPT To Female JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.5

1.01

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-16-16S Steel Male NPT To Female JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.95

1.27

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-6-6S Steel Male NPT To Female JIC 90 Elbow

0.38

3/8-18

9/16-18

1.22

0.77

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-8-8S Steel Male NPT To Female JIC 90 Elbow

0.5

1/2-14

3/4-16

1.47

1.01

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-2-4S Steel Male NPT To Female JIC 90 Elbow

0.25

1/8-27

7/16-20

0.76

0.66

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-4-6S Steel Male NPT To Female JIC 90 Elbow

0.38

1/4-18

9/16-18

1.06

0.7

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-6-8S Steel Male NPT To Female JIC 90 Elbow

0.5

3/8-18

3/4-16

1.22

0.98

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-8-10S Steel Male NPT To Female JIC 90 Elbow

0.63

1/2-14

7/8-14

1.47

0.98

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-04-04 Steel Male NPT To Female JIC 90 Elbow

0.25

1/4-18

7/16-20

1.11

1.11

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-04-05 Steel Male NPT To Female JIC 90 Elbow

0.31

1/4-18

1/2-20

1.09

1.11

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-08-06 Steel Male NPT To Female JIC 90 Elbow

0.38

1/2-14

9/16-18

1.37

Product Questions & Answers (2)

Question by: Janice G on Oct 9, 2025, 8:07 AM
got a hose end that’s 1-1/16-12 JIC, will this elbow hook up to it and still let me come off a 3/4-14 pipe thread?
Answer by: Customer Support on Oct 10, 2025, 8:31 AM
The ends are 3/4-14 male NPTF on one side and 1-1/16-12 female JIC 37 degree flare swivel on the other, and it’s a 90 degree elbow. That matches a 3/4-14 female pipe port on one end and a 1-1/16-12 male JIC 37 flare fitting on the other.
Question by: Tony H on Sep 22, 2025, 4:52 PM
Will this elbow adapter hold up in a marine environment, like on a fishing boat?
Answer by: Customer Support on Sep 24, 2025, 6:01 AM
This Eaton Aeroquip adapter is suitable for marine applications, among others, as it's also used in chemical processing, pulp and paper, and even off-shore drilling.
