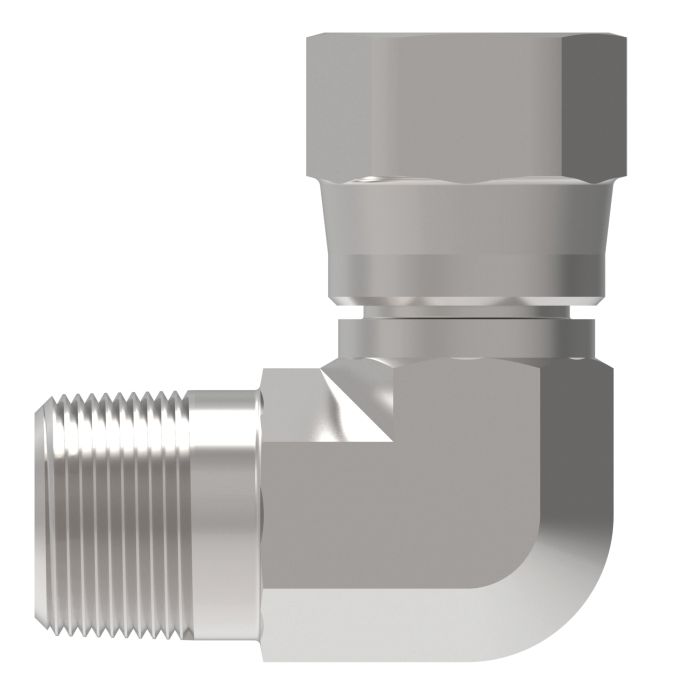

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Female JIC 37 deg Flare Swivel, 90 deg Elbow

Ask A Question

Description & Features

The Eaton Aeroquip Steel Adapter is expertly designed for demanding applications in marine, military, chemical processing, and off-shore drilling environments. This robust adapter features a 3/8-18 male NPT connection to a 3/4-16 female JIC 37-degree flare swivel, configured as a 90-degree elbow for efficient directional flow. Constructed with precision, the adapter ensures reliable performance and long-lasting durability in harsh industrial settings.

With dimensions of A: 1.22 and B: 0.98, this steel adapter is part of the trusted Eaton 2250 Series, known for outstanding fluid compatibility. Its design supports seamless integration with existing hydraulic systems, delivering consistent performance across diverse applications. The quality construction and engineered design make it an essential component for maintaining operational efficiency in complex industrial environments.

SKU: 2250-6-8S

Supplier Part Number (MPN): 2250-6-8S

Alternate Part Numbers: C1BD52, FMC102-1023, MI-00318679, MINO-00015F65140

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.22 in
b Dimensions
0.98 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, MNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Male NPTF
Dimension Standards
SAE 071602/J514
Drop Dimensions
0.96 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
7/8 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-65
Series
2250 Series
Thread Size
3/4-16 x 3/8-18
Tube OD
1/2 in

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-12-12S Steel Male NPT To Female JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.5

1.01

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-16-16S Steel Male NPT To Female JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.95

1.27

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-6-6S Steel Male NPT To Female JIC 90 Elbow

0.38

3/8-18

9/16-18

1.22

0.77

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-8-8S Steel Male NPT To Female JIC 90 Elbow

0.5

1/2-14

3/4-16

1.47

1.01

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-2-4S Steel Male NPT To Female JIC 90 Elbow

0.25

1/8-27

7/16-20

0.76

0.66

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-4-6S Steel Male NPT To Female JIC 90 Elbow

0.38

1/4-18

9/16-18

1.06

0.7

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-8-10S Steel Male NPT To Female JIC 90 Elbow

0.63

1/2-14

7/8-14

1.47

0.98

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-04-04 Steel Male NPT To Female JIC 90 Elbow

0.25

1/4-18

7/16-20

1.11

1.11

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-04-05 Steel Male NPT To Female JIC 90 Elbow

0.31

1/4-18

1/2-20

1.09

1.11

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-08-06 Steel Male NPT To Female JIC 90 Elbow

0.38

1/2-14

9/16-18

1.37

Product Questions & Answers (2)

Question by: Glen G on Jul 2, 2025, 6:15 PM
got a 3/8-18 npt port on my line and need to turn it 90 and hook to a 3/4-16 jic, is this the right elbow?
Answer by: Customer Support on Jul 4, 2025, 10:14 AM
For that hookup, it matches what you described. It is a 90 degree elbow adapter with a 3/8-18 male NPT (NPTF external pipe) on one end and a 3/4-16 female JIC 37 degree flare swivel on the other.
Question by: Duane Y on May 30, 2025, 9:54 AM
Been trying to sort out the right adapter for a 3/8 male NPT port going into a 3/4-16 JIC female swivel connection at a 90 degree angle. This the one that fits that?
Answer by: Customer Support on Jun 1, 2025, 6:46 AM
That's exactly the configuration this part covers. The 2250-6-8S steps from a 3/8-18 male NPT thread on one end to a 3/4-16 female JIC 37 degree flare swivel on the other, and it does it at a 90 degree elbow. The swivel on the female JIC end is a real convenience when you're routing lines in tight spots since it lets you position the hose without fighting the fitting for alignment.
