Steel Adapter, 1/4-18 Male NPT To 7/16-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

Description & Features

This steel adapter features a 1/4-18 male NPT to 7/16-20 female JIC 37 deg flare swivel and a 90-degree elbow, making it suitable for various connection requirements.

The Steel Adapter, 1/4-18 Male NPT To 7/16-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow, is part of the Pipe to 37° Flare Steel Adapters product model line. This adapter, with a catalog number of C1DY64, facilitates connections between different thread types and angles in hydraulic applications.

SKU: 6501-04-04

Supplier Part Number (MPN): 6501-04-04-FG

Specifications

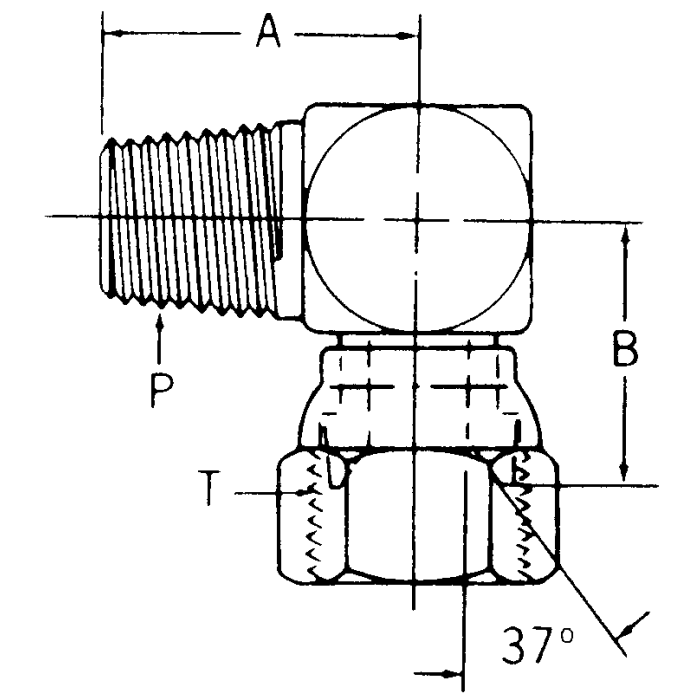

A 1.11	B 1.11	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6501-04-04-FG	Thread 1 1/4-18	Thread 2 7/16-20	Thread Sealant No	Tube O.D. 0.25	Product Weight 0.11 lbs

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2250-12-12S Steel Male NPT To Female JIC 90 Elbow	0.75	3/4-14	1-1/16-12	1.5	1.01
2250-16-16S Steel Male NPT To Female JIC 90 Elbow	1	1-11-1/2	1-5/16-12	1.95	1.27
2250-6-6S Steel Male NPT To Female JIC 90 Elbow	0.38	3/8-18	9/16-18	1.22	0.77
2250-8-8S Steel Male NPT To Female JIC 90 Elbow	0.5	1/2-14	3/4-16	1.47	1.01
2250-2-4S Steel Male NPT To Female JIC 90 Elbow	0.25	1/8-27	7/16-20	0.76	0.66
2250-4-6S Steel Male NPT To Female JIC 90 Elbow	0.38	1/4-18	9/16-18	1.06	0.7
2250-6-8S Steel Male NPT To Female JIC 90 Elbow	0.5	3/8-18	3/4-16	1.22	0.98
2250-8-10S Steel Male NPT To Female JIC 90 Elbow	0.63	1/2-14	7/8-14	1.47	0.98
6501-04-04 Steel Male NPT To Female JIC 90 Elbow	0.25	1/4-18	7/16-20	1.11	1.11
6501-04-05 Steel Male NPT To Female JIC 90 Elbow	0.31	1/4-18	1/2-20	1.09	1.11
6501-08-06 Steel Male NPT To Female JIC 90 Elbow	0.38	1/2-14	9/16-18	1.37
