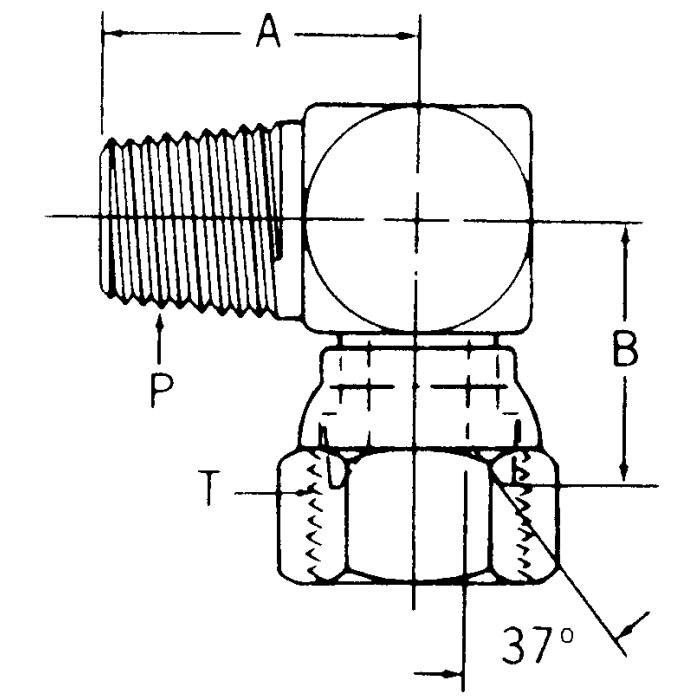

main product photo

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

Ask A Question

Description & Features

Configured as a 90-degree elbow, this Steel Adapter, 1/4-18 Male NPT To 1/2-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow connects a 1/4-18 male NPT thread to a 1/2-20 female JIC 37° flare swivel in applications where a right-angle transition between pipe and flare fittings is required. The swivel end allows for rotational adjustment during installation, reducing stress on connected lines.

Manufactured by Brennan Industries, this steel adapter is suited for hydraulic systems requiring a compact elbow connection. With an A dimension of 1.09 in., a B dimension of 1.11 in., and a tube O.D. of 0.31 in., it fits within tight assemblies where space is limited. The 37° flare seat conforms to JIC standards for reliable metal-to-metal sealing.

SKU: 6501-04-05

Supplier Part Number (MPN): 6501-04-05-FG

Specifications

A
1.09
B
1.11
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
6501-04-05-FG
Thread 1
1/4-18
Thread 2
1/2-20
Thread Sealant
No
Tube O.D.
0.31
Product Weight
0.11 lbs

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-12-12S Steel Male NPT To Female JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.5

1.01

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-16-16S Steel Male NPT To Female JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.95

1.27

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-6-6S Steel Male NPT To Female JIC 90 Elbow

0.38

3/8-18

9/16-18

1.22

0.77

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-8-8S Steel Male NPT To Female JIC 90 Elbow

0.5

1/2-14

3/4-16

1.47

1.01

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-2-4S Steel Male NPT To Female JIC 90 Elbow

0.25

1/8-27

7/16-20

0.76

0.66

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-4-6S Steel Male NPT To Female JIC 90 Elbow

0.38

1/4-18

9/16-18

1.06

0.7

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-6-8S Steel Male NPT To Female JIC 90 Elbow

0.5

3/8-18

3/4-16

1.22

0.98

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Female JIC 37 deg Flare Swivel, 90 deg Elbow

2250-8-10S Steel Male NPT To Female JIC 90 Elbow

0.63

1/2-14

7/8-14

1.47

0.98

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-04-04 Steel Male NPT To Female JIC 90 Elbow

0.25

1/4-18

7/16-20

1.11

1.11

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-04-05 Steel Male NPT To Female JIC 90 Elbow

0.31

1/4-18

1/2-20

1.09

1.11

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

6501-08-06 Steel Male NPT To Female JIC 90 Elbow

0.38

1/2-14

9/16-18

1.37

Product Questions & Answers (1)

Question by: Neil P on Sep 17, 2025, 6:00 PM
Will this fitting work to make a 90 degree turn from a pipe thread to a JIC flare?
Answer by: Customer Support on Sep 19, 2025, 4:33 PM
Yes, this steel adapter is configured as a 90-degree elbow, so it'll connect a 1/4-18 male NPT to a 1/2-20 female JIC 37° flare swivel.
