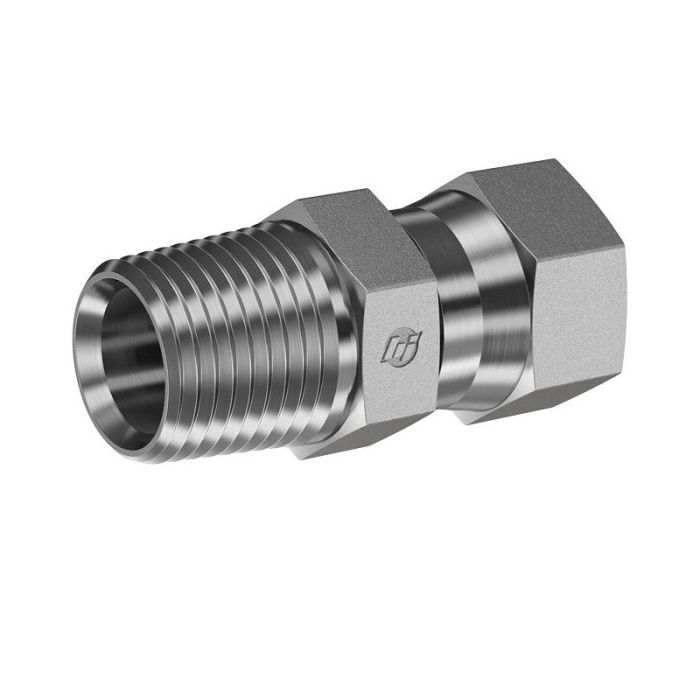

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-7/8-12 Female JIC 37 deg Flare Swivel, Straight

Description & Features

The steel adapter featuring a 1-1/2-11-1/2 male NPT fitting and a 1-7/8-12 female JIC 37-degree flare swivel is a precision-engineered component designed for seamless compatibility and dependable performance in industrial applications.

Manufactured by Brennan Industries Inc this adapter ensures robust connections under high-pressure environments supporting a wide range of hydraulic systems with its precise thread specifications.

The #24 MP X #24 FJ configuration caters to demanding operational conditions providing essential adaptability and longevity.

Expertly crafted from durable steel this straight adapter offers superior corrosion resistance and integrity making it an ideal choice for critical mechanical applications.

Supplier Part Number: 6505-24-24

MPN: C1GH64

Specifications

Brand BRENNAN	a Dimensions 2.93 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Female JIC Swivel, MNPT	Connection Type 1 Female SAE 37 deg JIC Flare Swivel	Connection Type 2 Male NPTF	Dimension Standards SAE J476/J514	Dimensions 3 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2 in, 2-1/4 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 2500 psi	Series 6505 Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/8-12, 1-1/2-11-1/2	Tube Outside Diameter 1-1/2 in

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2018-12-12S Steel Male NPT To Female JIC Adapter	0.75	3/4-14	1-1/16-12	2.15
2018-16-16S Steel Male NPT To Female JIC Adapter	1	1-11-1/2	1-5/16-12	2.54
2018-4-6S Steel Male NPT To Female JIC Adapter	0.38	1/4-18	9/16-18	1.59
2018-6-8S Steel Male NPT To Female JIC Adapter	0.5	3/8-18	3/4-16	1.74
2018-8-8S Steel Male NPT To Female JIC Adapter	0.5	1/2-14	3/4-16
2018-2-4S Steel Male NPT To Female JIC Adapter	0.25	1/8-27	7/16-20	1.32
2018-20-20S Steel Male NPT To Female JIC Adapter	1.25	1-1/4-11-1/2	1-5/8-12	2.78
2018-6-6S Steel Male NPT To Female JIC Adapter	0.38	3/8-18	9/16-18	1.72
6505-04-05 Steel Male NPT To Female JIC Adapter	0.31	1/4-18	1/2-20	1.41
6505-06-10 Steel Male NPT To Female JIC Adapter	0.63	3/8-18	7/8-14	1.86
6505-08-12 Steel Male NPT To Female JIC Adapter	0.75	1/2-14	1-1/16-12	2.17
6505-12-10 Steel Male NPT To Female JIC Adapter	0.63	3/4-14	7/8-14	1.93
6505-04-04 Steel Male NPT To Female JIC Adapter	0.25	1/4-18	7/16-20	1.45
6505-0606 Steel Male NPT To Female JIC Adapter	0.38	3/8-18	9/16-18	1.72
6505-0810 Steel Male NPT To Female JIC Adapter	0.5	1/2-14	7/8-14	2.28
6505-1216 Steel Male NPT To Female JIC Adapter	1	3/4-14	1-5/16-12	2.4
