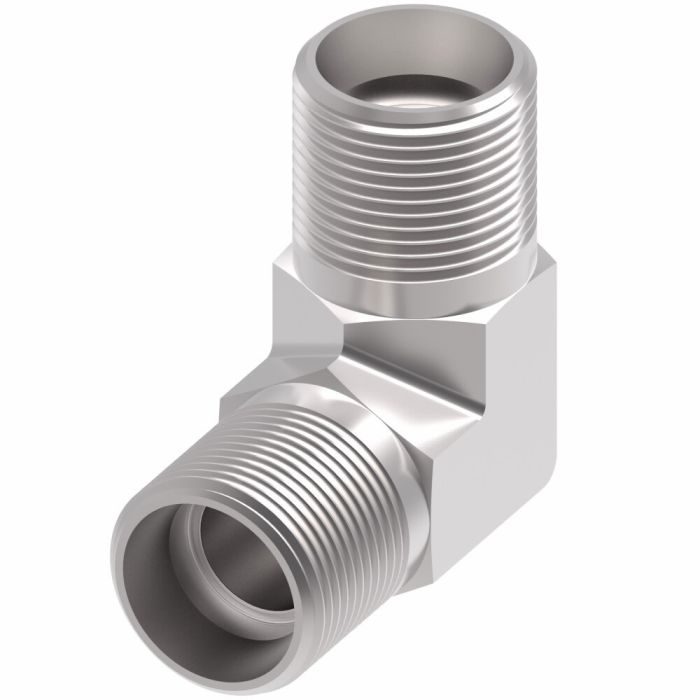

Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

Designed for demanding industrial environments, this Eaton Aeroquip Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow converts between NPT external pipe thread and SAE 37-degree flare connections at a right angle, making it well suited for routing hydraulic lines in space-constrained installations. Part of the Eaton Aeroquip 2024 Series, it is constructed from steel for durability across a broad range of service conditions.

With dimension A at 1.78 and dimension B at 1.81, this elbow adapter is used across marine and military equipment, chemical processing systems, pulp and paper facilities, food and beverage processing lines, and offshore drilling applications. Its compatibility across these industries reflects the versatility expected from a cataloged Eaton Aeroquip fitting in the 2024 Series line.

SKU: 2024-12-16S

Supplier Part Number (MPN): 2024-12-16S

Alternate Part Numbers: C1AV89, CONSX0142, MI-00312727, MINO-00015F61685

Specifications

A
1.78
Alternate Part Numbers
Alternate Part Number C1AV89, Alternate Part Number CONSX0142, Alternate Part Number MI-00312727, Alternate Part Number MINO-00015F61685
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.81
Drop Dimension
1.81
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.75
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2024-12-16S
Thread 1
3/4-14
Thread 2
1-5/16-12
Thread Sealant
No
Tube O.D.
1
Tube O.D.
1
Product Weight
0.66 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-12S Steel Male NPT To JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.59

1.66

Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-16S Steel Male NPT To JIC 90 Elbow

1

3/4-14

1-5/16-12

1.78

1.81

Steel Adapter, 3/4-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-6S Steel Male NPT To JIC 90 Elbow

0.38

3/4-14

9/16-18

1.59

1.31

Steel Adapter, 3/4-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-8S Steel Male NPT To JIC 90 Elbow

0.5

3/4-14

3/4-16

1.59

1.42

Steel Adapter, 1-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-12S Steel Male NPT To JIC 90 Elbow

0.75

1-11-1/2

1-1/16-12

1.97

1.76

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-16S Steel Male NPT To JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.97

1.81

Steel Adapter, 1/8-27 Male NPT To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-3S Steel Male NPT To JIC 90 Elbow

0.19

1/8-27

3/8-24

0.78

0.83

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-4S Steel Male NPT To JIC 90 Elbow

0.25

1/8-27

7/16-20

0.78

0.89

Steel Adapter, 1/8-27 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-6S Steel Male NPT To JIC 90 Elbow

0.38

1/8-27

9/16-18

0.9

1.06

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/4-11-1/2

1-5/8-12

2.38

2.06

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/2-11-1/2

1-5/8-12

2.64

2.3

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-7/8-12

2.64

2.33

Steel Adapter, 2-11-1/2 Male NPT To 2-1/2-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-32-32S Steel Male NPT To JIC 90 Elbow

2

2-11-1/2

2-1/2-12

3

3.08

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-4S Steel Male NPT To JIC 90 Elbow

0.25

1/4-18

7/16-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-6S Steel Male NPT To JIC 90 Elbow

0.38

1/4-18

9/16-18

1.09

1.06

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-6S Steel Male NPT To JIC 90 Elbow

0.38

3/8-18

9/16-18

1.22

1.14

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-8S Steel Male NPT To JIC 90 Elbow

0.5

3/8-18

3/4-16

1.22

1.25

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-10S Steel Male NPT To JIC 90 Elbow

0.63

1/2-14

7/8-14

1.47

1.45

Steel Adapter, 1/2-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-4S Steel Male NPT To JIC 90 Elbow

0.25

1/2-14

7/16-20

1.47

1.02

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-6S Steel Male NPT To JIC 90 Elbow

0.38

1/2-14

9/16-18

1.47

1.13

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-8S Steel Male NPT To JIC 90 Elbow

0.5

1/2-14

3/4-16

1.47

1.33

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-12-20 Steel Male NPT To JIC 90 Elbow

0.75

1-1/4-11-1/2

1-1/16-12

2.38

1.95

Steel Adapter, 3/4-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-10S Steel Male NPT To JIC 90 Elbow

0.63

3/4-14

7/8-14

1.59

1.54

Steel Adapter, 1-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-20S Steel Male NPT To JIC 90 Elbow

1.25

1-11-1/2

1-5/8-12

2.13

2.06

Steel Adapter, 1-11-1/2 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-8S Steel Male NPT To JIC 90 Elbow

0.5

1-11-1/2

3/4-16

1.95

1.47

Steel Adapter, 1/8-27 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-5S Steel Male NPT To JIC 90 Elbow

0.31

1/8-27

1/2-20

0.8

0.95

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-16S Steel Male NPT To JIC 90 Elbow

1

1-1/4-11-1/2

1-5/16-12

2.38

2.09

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/4-11-1/2

1-7/8-12

2.5

2.33

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-5S Steel Male NPT To JIC 90 Elbow

0.31

1/4-18

1/2-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-8S Steel Male NPT To JIC 90 Elbow

0.5

1/4-18

3/4-16

1.22

1.25

Steel Adapter, 3/8-18 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-10S Steel Male NPT To JIC 90 Elbow

0.63

3/8-18

7/8-14

1.28

1.45

Steel Adapter, 3/8-18 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-12S Steel Male NPT To JIC 90 Elbow

0.75

3/8-18

1-1/16-12

1.33

1.66

Steel Adapter, 3/8-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-4S Steel Male NPT To JIC 90 Elbow

0.25

3/8-18

7/16-20

1.22

0.98

Steel Adapter, 1/2-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-12S Steel Male NPT To JIC 90 Elbow

0.75

1/2-14

1-1/16-12

1.59

1.66

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-16-24 Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-5/16-12

2.64

2.14

Steel Adapter, 3/4-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2501-04-12 Steel Male NPT To JIC 90 Elbow

0.25

3/4-14

7/16-20

1.59

1.35

Steel Adapter, 1-11-1/2 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2501-10-16 Steel Male NPT To JIC 90 Elbow

0.63

1-11-1/2

7/8-14

1.97

1.66

Product Questions & Answers (3)

Question by: Frank P on Apr 10, 2025, 6:04 PM
trying to hook up a 3/4-14 pipe port to a -16 JIC line, is that what this elbow is for?
Answer by: Customer Support on Apr 12, 2025, 8:16 AM
For tying those two standards together, it matches a 3/4-14 male NPTF on one end and a 1-5/16-12 male SAE 37 degree (JIC) flare on the other, built as a 90 degree elbow.
Question by: Tony G on Aug 29, 2025, 3:14 PM
Will this fitting hold up okay if I'm running hydraulic fluid through it at, say, 2000 PSI?
Answer by: Customer Support on Aug 31, 2025, 7:07 AM
This Eaton Aeroquip adapter is designed for hydraulic applications within the marine, military, chemical processing, pulp and paper, and food and beverage industries, suggesting it's built to handle typical hydraulic pressures.
Question by: Tony R on Oct 3, 2025, 5:37 PM
got a tight spot on a hose run. is this the 90 elbow that goes from 3/4-14 male pipe over to a -16 male JIC flare?
Answer by: Customer Support on Oct 5, 2025, 3:17 PM
For routing in tight quarters, this adapter gives you a 90 degree elbow with a 3/4-14 male NPT connection on one end and a 1-5/16-12 male JIC 37 degree flare connection on the other, which is the -16 JIC size.
