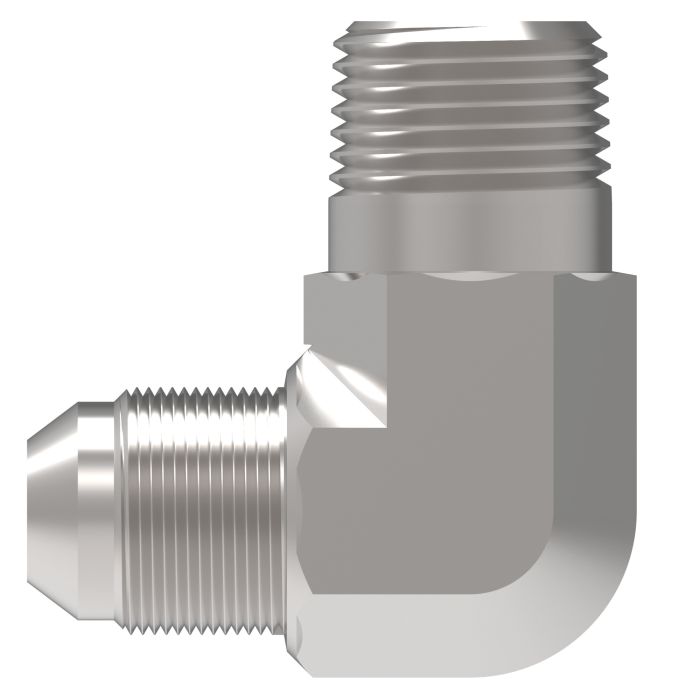

main product photo

Steel Adapter, 3/4-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 3/4-14 male NPT to 3/4-16 male JIC 37-degree flare connection with a 90-degree elbow. The Eaton Aeroquip 2024 Series elbow adapter is suitable for various applications, including marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

This steel adapter has dimensions A: 1.59 and B: 1.42.

SKU: 2024-12-8S

Supplier Part Number (MPN): 2024-12-8S

Alternate Part Numbers: C1AV91, MI-00312621, MINO-00015F61672

Specifications

A
1.59
Alternate Part Numbers
Alternate Part Number C1AV91, Alternate Part Number MI-00312621, Alternate Part Number MINO-00015F61672
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.42
Drop Dimension
1.42
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.75
End Size 2
0.75
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2024-12-8S
Thread 1
3/4-14
Thread 2
3/4-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.39 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-12S Steel Male NPT To JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.59

1.66

Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-16S Steel Male NPT To JIC 90 Elbow

1

3/4-14

1-5/16-12

1.78

1.81

Steel Adapter, 3/4-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-6S Steel Male NPT To JIC 90 Elbow

0.38

3/4-14

9/16-18

1.59

1.31

Steel Adapter, 3/4-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-8S Steel Male NPT To JIC 90 Elbow

0.5

3/4-14

3/4-16

1.59

1.42

Steel Adapter, 1-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-12S Steel Male NPT To JIC 90 Elbow

0.75

1-11-1/2

1-1/16-12

1.97

1.76

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-16S Steel Male NPT To JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.97

1.81

Steel Adapter, 1/8-27 Male NPT To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-3S Steel Male NPT To JIC 90 Elbow

0.19

1/8-27

3/8-24

0.78

0.83

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-4S Steel Male NPT To JIC 90 Elbow

0.25

1/8-27

7/16-20

0.78

0.89

Steel Adapter, 1/8-27 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-6S Steel Male NPT To JIC 90 Elbow

0.38

1/8-27

9/16-18

0.9

1.06

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/4-11-1/2

1-5/8-12

2.38

2.06

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/2-11-1/2

1-5/8-12

2.64

2.3

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-7/8-12

2.64

2.33

Steel Adapter, 2-11-1/2 Male NPT To 2-1/2-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-32-32S Steel Male NPT To JIC 90 Elbow

2

2-11-1/2

2-1/2-12

3

3.08

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-4S Steel Male NPT To JIC 90 Elbow

0.25

1/4-18

7/16-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-6S Steel Male NPT To JIC 90 Elbow

0.38

1/4-18

9/16-18

1.09

1.06

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-6S Steel Male NPT To JIC 90 Elbow

0.38

3/8-18

9/16-18

1.22

1.14

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-8S Steel Male NPT To JIC 90 Elbow

0.5

3/8-18

3/4-16

1.22

1.25

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-10S Steel Male NPT To JIC 90 Elbow

0.63

1/2-14

7/8-14

1.47

1.45

Steel Adapter, 1/2-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-4S Steel Male NPT To JIC 90 Elbow

0.25

1/2-14

7/16-20

1.47

1.02

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-6S Steel Male NPT To JIC 90 Elbow

0.38

1/2-14

9/16-18

1.47

1.13

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-8S Steel Male NPT To JIC 90 Elbow

0.5

1/2-14

3/4-16

1.47

1.33

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-12-20 Steel Male NPT To JIC 90 Elbow

0.75

1-1/4-11-1/2

1-1/16-12

2.38

1.95

Steel Adapter, 3/4-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-10S Steel Male NPT To JIC 90 Elbow

0.63

3/4-14

7/8-14

1.59

1.54

Steel Adapter, 1-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-20S Steel Male NPT To JIC 90 Elbow

1.25

1-11-1/2

1-5/8-12

2.13

2.06

Steel Adapter, 1-11-1/2 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-8S Steel Male NPT To JIC 90 Elbow

0.5

1-11-1/2

3/4-16

1.95

1.47

Steel Adapter, 1/8-27 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-5S Steel Male NPT To JIC 90 Elbow

0.31

1/8-27

1/2-20

0.8

0.95

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-16S Steel Male NPT To JIC 90 Elbow

1

1-1/4-11-1/2

1-5/16-12

2.38

2.09

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/4-11-1/2

1-7/8-12

2.5

2.33

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-5S Steel Male NPT To JIC 90 Elbow

0.31

1/4-18

1/2-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-8S Steel Male NPT To JIC 90 Elbow

0.5

1/4-18

3/4-16

1.22

1.25

Steel Adapter, 3/8-18 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-10S Steel Male NPT To JIC 90 Elbow

0.63

3/8-18

7/8-14

1.28

1.45

Steel Adapter, 3/8-18 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-12S Steel Male NPT To JIC 90 Elbow

0.75

3/8-18

1-1/16-12

1.33

1.66

Steel Adapter, 3/8-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-4S Steel Male NPT To JIC 90 Elbow

0.25

3/8-18

7/16-20

1.22

0.98

Steel Adapter, 1/2-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-12S Steel Male NPT To JIC 90 Elbow

0.75

1/2-14

1-1/16-12

1.59

1.66

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-16-24 Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-5/16-12

2.64

2.14

Steel Adapter, 3/4-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2501-04-12 Steel Male NPT To JIC 90 Elbow

0.25

3/4-14

7/16-20

1.59

1.35

Steel Adapter, 1-11-1/2 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2501-10-16 Steel Male NPT To JIC 90 Elbow

0.63

1-11-1/2

7/8-14

1.97

1.66

Product Questions & Answers (4)

Question by: Dwayne M on Sep 16, 2025, 12:30 PM
trying to swap a fitting on a hose, is this the elbow that goes from 3/4-14 male NPT over to 3/4-16 male JIC flare
Answer by: Customer Support on Sep 18, 2025, 11:52 AM
It is a 90 degree steel adapter with a 3/4-14 male NPTF on one end and a 3/4-16 male SAE 37 degree (JIC) flare on the other, and both ends are male.
Question by: Randy W on Feb 9, 2026, 8:44 AM
got a hydraulic line coming off a pump that needs to change direction before it hits the JIC fitting on my manifold, does this adapter handle that 90 degree turn between NPT and JIC in one piece?
Answer by: Customer Support on Feb 10, 2026, 7:41 PM
Yes, and that's exactly the job it was built for. The 3/4-14 male NPT end threads into your NPT port, and the 3/4-16 male JIC 37 degree flare end connects to the mating JIC female fitting, all at a 90 degree angle between them. One adapter, one turn, no extra union or street elbow needed in the middle.
Question by: Brenda H on Aug 21, 2025, 3:34 PM
trying to hook a 3/4 pipe thread line over to a 3/4 JIC hose and need a 90, is this the right adapter?
Answer by: Customer Support on Aug 23, 2025, 6:19 AM
For that hookup, you’re looking for an elbow adapter that goes from 3/4-14 male NPT (pipe thread) on one end to 3/4-16 male JIC with a 37 degree flare on the other. That matches what this part is: a 90 degree steel elbow with 3/4-14 Male NPT to 3/4-16 Male JIC 37 degree flare.
Question by: Dean R on May 31, 2025, 7:07 PM
I need a 90 degree elbow adapter to go from a male NPT to a male JIC. Is this the correct fitting for that?
Answer by: Customer Support on Jun 2, 2025, 3:32 PM
This Eaton Aeroquip adapter will do the trick. It’s a 90-degree elbow that goes from a 3/4-14 male NPT to a 3/4-16 male JIC 37-degree flare.
