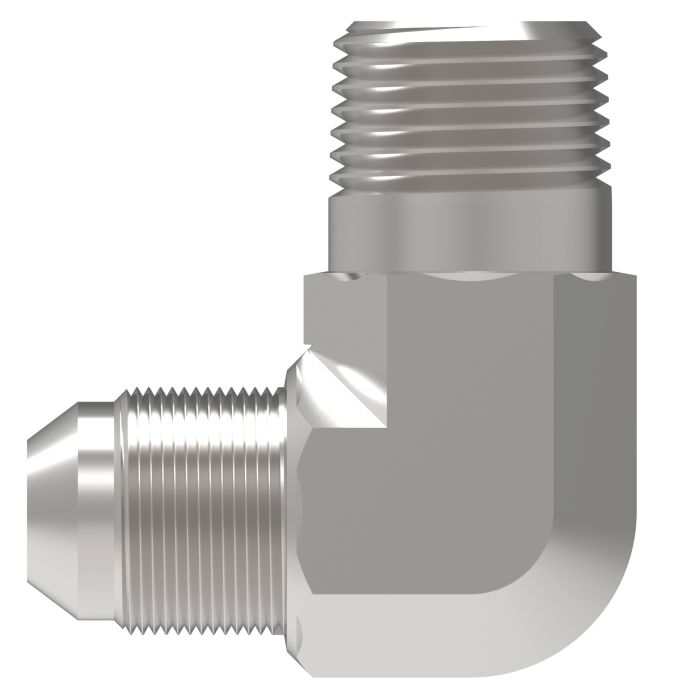

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter is a 90-degree elbow designed for diverse applications, including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling environments. Constructed from zinc-plated steel, this Eaton adapter ensures reliable performance.

Featuring a 1/8-27 Male NPT to 7/16-20 Male JIC 37-degree flare connection, this adapter provides a secure and leak-free connection. It is suitable for use with a 0.25 inch tube O.D. and has a minimum working temperature of -65 degrees. The catalog number for this adapter is C1AV99. This product falls under the Pipe to 37° Flare Steel Adapters model.

SKU: 2024-2-4S

Supplier Part Number (MPN): 2024-2-4S

Alternate Part Numbers: 20011379, C1AV99, CONSM1342, MI-00312465, MINO-00015F61655

Specifications

A
0.78
Alternate Part Numbers
Alternate Part Number 20011379, Alternate Part Number C1AV99, Alternate Part Number CONSM1342, Alternate Part Number MI-00312465, Alternate Part Number MINO-00015F61655
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
0.89
Drop Dimension
0.89
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.13
End Size 2
0.44
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2024-2-4S
Thread 1
1/8-27
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.06 lbs
