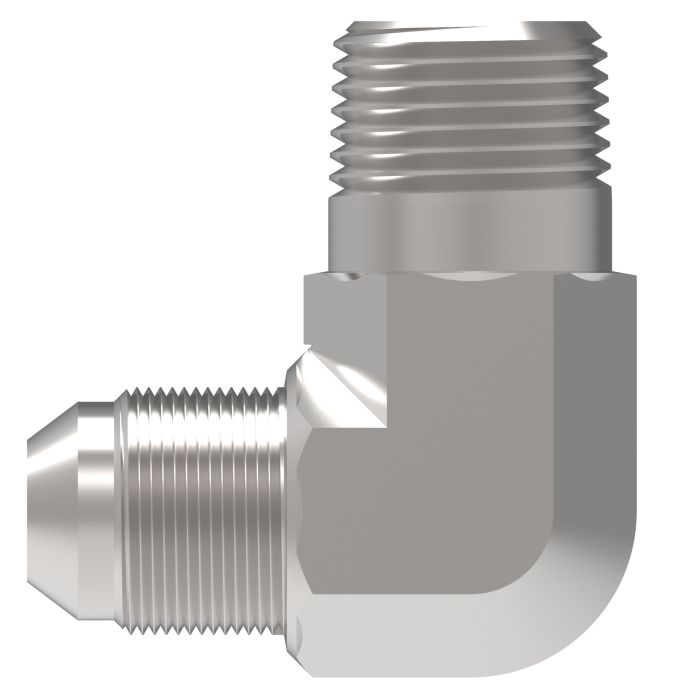

Steel Adapter, 1/8-27 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter is a 90-degree elbow fitting designed to connect different hydraulic components. It features a 1/8-27 male NPT thread on one end and a 1/2-20 male JIC 37-degree flare on the other. This adapter facilitates connections in various hydraulic applications.

Manufactured by Eaton Aeroquip, this adapter is suitable for use in marine, military, chemical processing, pulp and paper, and food and beverage processing applications, as well as off-shore drilling. With an A dimension of 0.8 and a B dimension of 0.95, it ensures precise fitting and reliable performance in demanding environments.

SKU: 2024-2-5S

Supplier Part Number (MPN): 2024-2-5S

Alternate Part Numbers: C1AW11, MI-00312499, MINO-00015F61660

Specifications

A
0.80
Alternate Part Numbers
Alternate Part Number C1AW11, Alternate Part Number MI-00312499, Alternate Part Number MINO-00015F61660
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
0.95
Drop Dimension
0.95
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.13
End Size 2
0.50
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2024-2-5S
Thread 1
1/8-27
Thread 2
1/2-20
Thread Sealant
No
Tube O.D.
0.31
Tube O.D.
0.31
Product Weight
0.07 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-12S Steel Male NPT To JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.59

1.66

Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-16S Steel Male NPT To JIC 90 Elbow

1

3/4-14

1-5/16-12

1.78

1.81

Steel Adapter, 3/4-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-6S Steel Male NPT To JIC 90 Elbow

0.38

3/4-14

9/16-18

1.59

1.31

Steel Adapter, 3/4-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-8S Steel Male NPT To JIC 90 Elbow

0.5

3/4-14

3/4-16

1.59

1.42

Steel Adapter, 1-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-12S Steel Male NPT To JIC 90 Elbow

0.75

1-11-1/2

1-1/16-12

1.97

1.76

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-16S Steel Male NPT To JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.97

1.81

Steel Adapter, 1/8-27 Male NPT To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-3S Steel Male NPT To JIC 90 Elbow

0.19

1/8-27

3/8-24

0.78

0.83

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-4S Steel Male NPT To JIC 90 Elbow

0.25

1/8-27

7/16-20

0.78

0.89

Steel Adapter, 1/8-27 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-6S Steel Male NPT To JIC 90 Elbow

0.38

1/8-27

9/16-18

0.9

1.06

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/4-11-1/2

1-5/8-12

2.38

2.06

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/2-11-1/2

1-5/8-12

2.64

2.3

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-7/8-12

2.64

2.33

Steel Adapter, 2-11-1/2 Male NPT To 2-1/2-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-32-32S Steel Male NPT To JIC 90 Elbow

2

2-11-1/2

2-1/2-12

3

3.08

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-4S Steel Male NPT To JIC 90 Elbow

0.25

1/4-18

7/16-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-6S Steel Male NPT To JIC 90 Elbow

0.38

1/4-18

9/16-18

1.09

1.06

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-6S Steel Male NPT To JIC 90 Elbow

0.38

3/8-18

9/16-18

1.22

1.14

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-8S Steel Male NPT To JIC 90 Elbow

0.5

3/8-18

3/4-16

1.22

1.25

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-10S Steel Male NPT To JIC 90 Elbow

0.63

1/2-14

7/8-14

1.47

1.45

Steel Adapter, 1/2-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-4S Steel Male NPT To JIC 90 Elbow

0.25

1/2-14

7/16-20

1.47

1.02

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-6S Steel Male NPT To JIC 90 Elbow

0.38

1/2-14

9/16-18

1.47

1.13

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-8S Steel Male NPT To JIC 90 Elbow

0.5

1/2-14

3/4-16

1.47

1.33

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-12-20 Steel Male NPT To JIC 90 Elbow

0.75

1-1/4-11-1/2

1-1/16-12

2.38

1.95

Steel Adapter, 3/4-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-10S Steel Male NPT To JIC 90 Elbow

0.63

3/4-14

7/8-14

1.59

1.54

Steel Adapter, 1-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-20S Steel Male NPT To JIC 90 Elbow

1.25

1-11-1/2

1-5/8-12

2.13

2.06

Steel Adapter, 1-11-1/2 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-8S Steel Male NPT To JIC 90 Elbow

0.5

1-11-1/2

3/4-16

1.95

1.47

Steel Adapter, 1/8-27 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-5S Steel Male NPT To JIC 90 Elbow

0.31

1/8-27

1/2-20

0.8

0.95

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-16S Steel Male NPT To JIC 90 Elbow

1

1-1/4-11-1/2

1-5/16-12

2.38

2.09

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/4-11-1/2

1-7/8-12

2.5

2.33

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-5S Steel Male NPT To JIC 90 Elbow

0.31

1/4-18

1/2-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-8S Steel Male NPT To JIC 90 Elbow

0.5

1/4-18

3/4-16

1.22

1.25

Steel Adapter, 3/8-18 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-10S Steel Male NPT To JIC 90 Elbow

0.63

3/8-18

7/8-14

1.28

1.45

Steel Adapter, 3/8-18 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-12S Steel Male NPT To JIC 90 Elbow

0.75

3/8-18

1-1/16-12

1.33

1.66

Steel Adapter, 3/8-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-4S Steel Male NPT To JIC 90 Elbow

0.25

3/8-18

7/16-20

1.22

0.98

Steel Adapter, 1/2-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-12S Steel Male NPT To JIC 90 Elbow

0.75

1/2-14

1-1/16-12

1.59

1.66

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-16-24 Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-5/16-12

2.64

2.14

Steel Adapter, 3/4-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2501-04-12 Steel Male NPT To JIC 90 Elbow

0.25

3/4-14

7/16-20

1.59

1.35

Steel Adapter, 1-11-1/2 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2501-10-16 Steel Male NPT To JIC 90 Elbow

0.63

1-11-1/2

7/8-14

1.97

1.66

Product Questions & Answers (1)

Question by: Dean C on Sep 21, 2025, 8:01 PM
trying to hook a 1/8 pipe port up to a JIC line, is this the right elbow for that?
Answer by: Customer Support on Sep 23, 2025, 9:13 AM
For tying those two standards together, it matches up as a 90 degree steel elbow adapter with a 1/8-27 male NPT on one end and a 1/2-20 male JIC 37 degree flare on the other.
