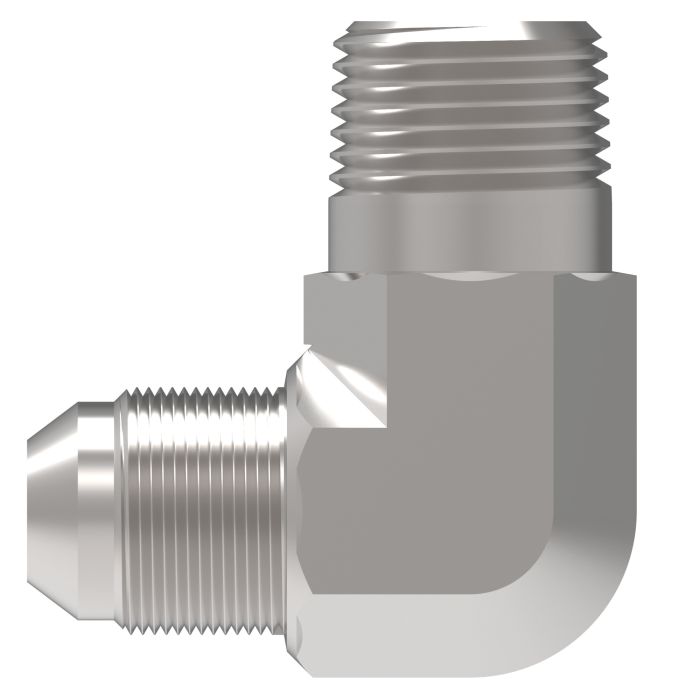

main product photo

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 1/4-18 male NPT to 1/2-20 male JIC 37-degree flare connection, configured as a 90-degree elbow. Manufactured by Eaton Aeroquip, this Steel Adapter is suitable for applications including marine and military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling environments.

This Eaton Aeroquip adapter, catalog number C1AW22, provides a reliable connection in demanding hydraulic systems.

SKU: 2024-4-5S

Supplier Part Number (MPN): 2024-4-5S

Alternate Part Numbers: C1AW22, MI-00312510, MINO-00015F61661

Specifications

A
1.09
Alternate Part Numbers
Alternate Part Number C1AW22, Alternate Part Number MI-00312510, Alternate Part Number MINO-00015F61661
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.05
Drop Dimension
1.05
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.25
End Size 2
0.50
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2024-4-5S
Thread 1
1/4-18
Thread 2
1/2-20
Thread Sealant
No
Tube O.D.
0.31
Tube O.D.
0.31
Product Weight
0.07 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-12S Steel Male NPT To JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.59

1.66

Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-16S Steel Male NPT To JIC 90 Elbow

1

3/4-14

1-5/16-12

1.78

1.81

Steel Adapter, 3/4-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-6S Steel Male NPT To JIC 90 Elbow

0.38

3/4-14

9/16-18

1.59

1.31

Steel Adapter, 3/4-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-8S Steel Male NPT To JIC 90 Elbow

0.5

3/4-14

3/4-16

1.59

1.42

Steel Adapter, 1-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-12S Steel Male NPT To JIC 90 Elbow

0.75

1-11-1/2

1-1/16-12

1.97

1.76

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-16S Steel Male NPT To JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.97

1.81

Steel Adapter, 1/8-27 Male NPT To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-3S Steel Male NPT To JIC 90 Elbow

0.19

1/8-27

3/8-24

0.78

0.83

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-4S Steel Male NPT To JIC 90 Elbow

0.25

1/8-27

7/16-20

0.78

0.89

Steel Adapter, 1/8-27 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-6S Steel Male NPT To JIC 90 Elbow

0.38

1/8-27

9/16-18

0.9

1.06

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/4-11-1/2

1-5/8-12

2.38

2.06

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/2-11-1/2

1-5/8-12

2.64

2.3

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-7/8-12

2.64

2.33

Steel Adapter, 2-11-1/2 Male NPT To 2-1/2-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-32-32S Steel Male NPT To JIC 90 Elbow

2

2-11-1/2

2-1/2-12

3

3.08

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-4S Steel Male NPT To JIC 90 Elbow

0.25

1/4-18

7/16-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-6S Steel Male NPT To JIC 90 Elbow

0.38

1/4-18

9/16-18

1.09

1.06

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-6S Steel Male NPT To JIC 90 Elbow

0.38

3/8-18

9/16-18

1.22

1.14

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-8S Steel Male NPT To JIC 90 Elbow

0.5

3/8-18

3/4-16

1.22

1.25

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-10S Steel Male NPT To JIC 90 Elbow

0.63

1/2-14

7/8-14

1.47

1.45

Steel Adapter, 1/2-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-4S Steel Male NPT To JIC 90 Elbow

0.25

1/2-14

7/16-20

1.47

1.02

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-6S Steel Male NPT To JIC 90 Elbow

0.38

1/2-14

9/16-18

1.47

1.13

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-8S Steel Male NPT To JIC 90 Elbow

0.5

1/2-14

3/4-16

1.47

1.33

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-12-20 Steel Male NPT To JIC 90 Elbow

0.75

1-1/4-11-1/2

1-1/16-12

2.38

1.95

Steel Adapter, 3/4-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-10S Steel Male NPT To JIC 90 Elbow

0.63

3/4-14

7/8-14

1.59

1.54

Steel Adapter, 1-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-20S Steel Male NPT To JIC 90 Elbow

1.25

1-11-1/2

1-5/8-12

2.13

2.06

Steel Adapter, 1-11-1/2 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-8S Steel Male NPT To JIC 90 Elbow

0.5

1-11-1/2

3/4-16

1.95

1.47

Steel Adapter, 1/8-27 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-5S Steel Male NPT To JIC 90 Elbow

0.31

1/8-27

1/2-20

0.8

0.95

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-16S Steel Male NPT To JIC 90 Elbow

1

1-1/4-11-1/2

1-5/16-12

2.38

2.09

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/4-11-1/2

1-7/8-12

2.5

2.33

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-5S Steel Male NPT To JIC 90 Elbow

0.31

1/4-18

1/2-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-8S Steel Male NPT To JIC 90 Elbow

0.5

1/4-18

3/4-16

1.22

1.25

Steel Adapter, 3/8-18 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-10S Steel Male NPT To JIC 90 Elbow

0.63

3/8-18

7/8-14

1.28

1.45

Steel Adapter, 3/8-18 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-12S Steel Male NPT To JIC 90 Elbow

0.75

3/8-18

1-1/16-12

1.33

1.66

Steel Adapter, 3/8-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-4S Steel Male NPT To JIC 90 Elbow

0.25

3/8-18

7/16-20

1.22

0.98

Steel Adapter, 1/2-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-12S Steel Male NPT To JIC 90 Elbow

0.75

1/2-14

1-1/16-12

1.59

1.66

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-16-24 Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-5/16-12

2.64

2.14

Steel Adapter, 3/4-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2501-04-12 Steel Male NPT To JIC 90 Elbow

0.25

3/4-14

7/16-20

1.59

1.35

Steel Adapter, 1-11-1/2 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2501-10-16 Steel Male NPT To JIC 90 Elbow

0.63

1-11-1/2

7/8-14

1.97

1.66

Product Questions & Answers (1)

Question by: Kirk L on Dec 23, 2025, 3:43 PM
Got a 1/4 NPT port on a hydraulic block and need to run a JIC line off it at a right angle, this the kind of fitting that handles that?
Answer by: Customer Support on Dec 25, 2025, 7:05 AM
That's what this one is built for. One end threads into a 1/4-18 NPT port, and the other connects to a 1/2-20 JIC 37-degree flare line, with the 90-degree elbow giving you that right-angle direction change. It's from Eaton Aeroquip's 2024 series, so the construction is solid steel. Works well in tight spaces where a straight adapter just won't give you the routing you need.
