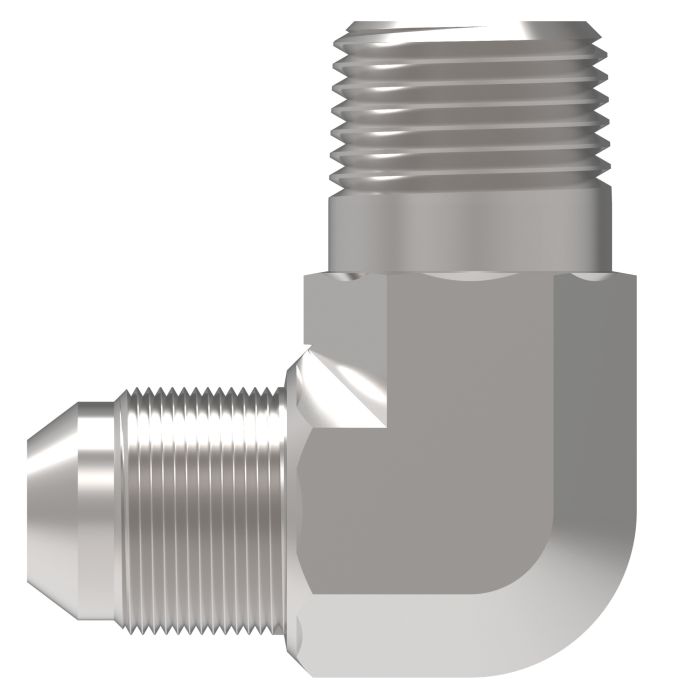

Steel Adapter, 1/2-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

Part of the Eaton Aeroquip 2024 Series, this Steel Adapter, 1/2-14 Male NPT To 7/16-20 Male JIC 37 Deg Flare, 90 Deg Elbow provides a reliable 90-degree transition between male NPT and male JIC 37-degree flare connections in a single compact fitting. The elbow configuration suits installations where inline routing is not practical, with A and B dimensions of 1.47 and 1.02 respectively.

Rated for demanding service environments, this adapter is well suited for marine and military applications, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling. The NPTF external pipe thread ensures a pressure-tight mechanical seal without the need for additional sealant in most configurations. Catalog number C1AW36 can assist cross-referencing across supplier systems.

SKU: 2024-8-4S

Supplier Part Number (MPN): 2024-8-4S

Alternate Part Numbers: C1AW36, MI-00312493, MINO-00015F61658

Specifications

A
1.47
Alternate Part Numbers
Alternate Part Number C1AW36, Alternate Part Number MI-00312493, Alternate Part Number MINO-00015F61658
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.02
Drop Dimension
1.21
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.50
End Size 2
0.44
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2024-8-4S
Thread 1
1/2-14
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.24 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-12S Steel Male NPT To JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.59

1.66

Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-16S Steel Male NPT To JIC 90 Elbow

1

3/4-14

1-5/16-12

1.78

1.81

Steel Adapter, 3/4-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-6S Steel Male NPT To JIC 90 Elbow

0.38

3/4-14

9/16-18

1.59

1.31

Steel Adapter, 3/4-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-8S Steel Male NPT To JIC 90 Elbow

0.5

3/4-14

3/4-16

1.59

1.42

Steel Adapter, 1-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-12S Steel Male NPT To JIC 90 Elbow

0.75

1-11-1/2

1-1/16-12

1.97

1.76

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-16S Steel Male NPT To JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.97

1.81

Steel Adapter, 1/8-27 Male NPT To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-3S Steel Male NPT To JIC 90 Elbow

0.19

1/8-27

3/8-24

0.78

0.83

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-4S Steel Male NPT To JIC 90 Elbow

0.25

1/8-27

7/16-20

0.78

0.89

Steel Adapter, 1/8-27 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-6S Steel Male NPT To JIC 90 Elbow

0.38

1/8-27

9/16-18

0.9

1.06

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/4-11-1/2

1-5/8-12

2.38

2.06

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-20S Steel Male NPT To JIC 90 Elbow

1.25

1-1/2-11-1/2

1-5/8-12

2.64

2.3

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-24-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-7/8-12

2.64

2.33

Steel Adapter, 2-11-1/2 Male NPT To 2-1/2-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-32-32S Steel Male NPT To JIC 90 Elbow

2

2-11-1/2

2-1/2-12

3

3.08

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-4S Steel Male NPT To JIC 90 Elbow

0.25

1/4-18

7/16-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-6S Steel Male NPT To JIC 90 Elbow

0.38

1/4-18

9/16-18

1.09

1.06

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-6S Steel Male NPT To JIC 90 Elbow

0.38

3/8-18

9/16-18

1.22

1.14

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-8S Steel Male NPT To JIC 90 Elbow

0.5

3/8-18

3/4-16

1.22

1.25

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-10S Steel Male NPT To JIC 90 Elbow

0.63

1/2-14

7/8-14

1.47

1.45

Steel Adapter, 1/2-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-4S Steel Male NPT To JIC 90 Elbow

0.25

1/2-14

7/16-20

1.47

1.02

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-6S Steel Male NPT To JIC 90 Elbow

0.38

1/2-14

9/16-18

1.47

1.13

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-8S Steel Male NPT To JIC 90 Elbow

0.5

1/2-14

3/4-16

1.47

1.33

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-12-20 Steel Male NPT To JIC 90 Elbow

0.75

1-1/4-11-1/2

1-1/16-12

2.38

1.95

Steel Adapter, 3/4-14 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-12-10S Steel Male NPT To JIC 90 Elbow

0.63

3/4-14

7/8-14

1.59

1.54

Steel Adapter, 1-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-20S Steel Male NPT To JIC 90 Elbow

1.25

1-11-1/2

1-5/8-12

2.13

2.06

Steel Adapter, 1-11-1/2 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-16-8S Steel Male NPT To JIC 90 Elbow

0.5

1-11-1/2

3/4-16

1.95

1.47

Steel Adapter, 1/8-27 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-2-5S Steel Male NPT To JIC 90 Elbow

0.31

1/8-27

1/2-20

0.8

0.95

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-16S Steel Male NPT To JIC 90 Elbow

1

1-1/4-11-1/2

1-5/16-12

2.38

2.09

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-20-24S Steel Male NPT To JIC 90 Elbow

1.5

1-1/4-11-1/2

1-7/8-12

2.5

2.33

Steel Adapter, 1/4-18 Male NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-5S Steel Male NPT To JIC 90 Elbow

0.31

1/4-18

1/2-20

1.09

1.05

Steel Adapter, 1/4-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2024-4-8S Steel Male NPT To JIC 90 Elbow

0.5

1/4-18

3/4-16

1.22

1.25

Steel Adapter, 3/8-18 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-10S Steel Male NPT To JIC 90 Elbow

0.63

3/8-18

7/8-14

1.28

1.45

Steel Adapter, 3/8-18 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-12S Steel Male NPT To JIC 90 Elbow

0.75

3/8-18

1-1/16-12

1.33

1.66

Steel Adapter, 3/8-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2024-6-4S Steel Male NPT To JIC 90 Elbow

0.25

3/8-18

7/16-20

1.22

0.98

Steel Adapter, 1/2-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2024-8-12S Steel Male NPT To JIC 90 Elbow

0.75

1/2-14

1-1/16-12

1.59

1.66

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2501-16-24 Steel Male NPT To JIC 90 Elbow

1.5

1-1/2-11-1/2

1-5/16-12

2.64

2.14

Steel Adapter, 3/4-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2501-04-12 Steel Male NPT To JIC 90 Elbow

0.25

3/4-14

7/16-20

1.59

1.35

Steel Adapter, 1-11-1/2 Male NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2501-10-16 Steel Male NPT To JIC 90 Elbow

0.63

1-11-1/2

7/8-14

1.97

1.66

Product Questions & Answers (3)

Question by: Dwight P on Nov 9, 2025, 5:27 PM
trying to hook a 1/2-14 male npt line into a 7/16-20 jic flare port, is this the right elbow adapter?
Answer by: Customer Support on Nov 11, 2025, 7:08 AM
Match-up wise, it converts a 1/2-14 male NPTF end over to a 7/16-20 male SAE 37 degree (JIC) flare end, and it’s a 90 degree elbow. It’s also sized for 1/4 inch tube O.D. on the 37 degree flare side.
Question by: Connie W on Oct 21, 2025, 11:39 AM
trying to hook up a 1/2 pipe port to a 4 jic line, is this the right elbow for that?
Answer by: Customer Support on Oct 22, 2025, 1:43 PM
For a 90 degree turn between those two thread types, this adapter matches 1/2-14 male NPT on one end and 7/16-20 male JIC 37 degree flare on the other.
Question by: Pete R on Mar 25, 2025, 4:06 PM
Will this fitting work for connecting a 1/2 inch NPT male to a 7/16 JIC male at a 90 degree angle?
Answer by: Customer Support on Mar 27, 2025, 10:41 AM
Yes, this steel adapter is designed to do exactly that, connecting a 1/2-14 Male NPT to a 7/16-20 Male JIC 37 degree flare with a 90 degree elbow.
