Steel Adapter, 3/4-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 3/4-14 Male NPT to 7/16-20 Male JIC 37 deg Flare connection and a 90-degree elbow, facilitating directional changes in fluid transfer lines. The Steel Adapter, 3/4-14 Male NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow is manufactured by OM Industrial Products Corp, with a catalog number of C1BG79.

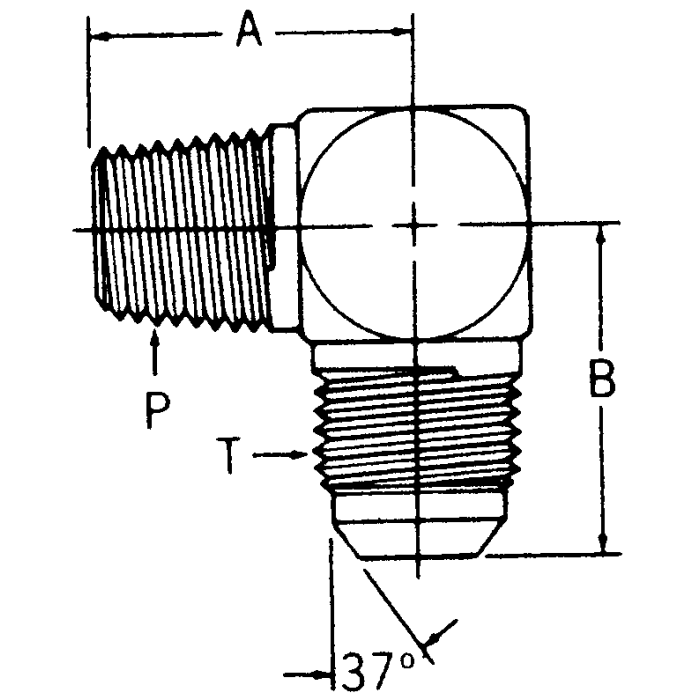

It's designed for connecting pipe threads to 37° Flare Steel Adapters, with an A dimension of 1.59 and a B dimension of 1.35. The tube OD is 0.25.

SKU: 2501-04-12

Supplier Part Number (MPN): 2501-04-12-FG

Alternate Part Numbers: 2024-12-4S, A2024-12-4S, C1BG79

Specifications

a Dimensions
1.59 in
b Dimensions
1.35 in
Connection Size 1
1/4 in
Connection Size 2
3/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male NPTF
Dimension Standards
SAE J514/J476
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
2501-FG Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20 x 3/4-14
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Daryl M on Nov 13, 2025, 12:32 PM
got a line coming off a 3/4 NPT port that needs to make a sharp turn before connecting to a 7/16-20 JIC fitting, this the right piece for that?
Answer by: Customer Support on Nov 14, 2025, 7:35 PM
That's what this adapter is built for. One end threads into a 3/4-14 NPT port, and the other connects to a 7/16-20 Male JIC 37-degree flare fitting. The 90-degree elbow handles that directional change right at the connection point, so you're not forcing a bend into the line itself. The tube OD on the JIC side is 0.25 inches, so just make sure your mating fitting matches up before you wrench it down.
Question by: Bobby C on Jul 26, 2025, 8:44 AM
trying to swap a straight fitting for an elbow, what are the thread sizes on each end of this one
Answer by: Customer Support on Jul 27, 2025, 9:32 PM
On the pipe-thread side it is 3/4-14 male NPT, and on the flare side it is 7/16-20 male JIC with a 37 degree flare. It is a 90 degree elbow.
