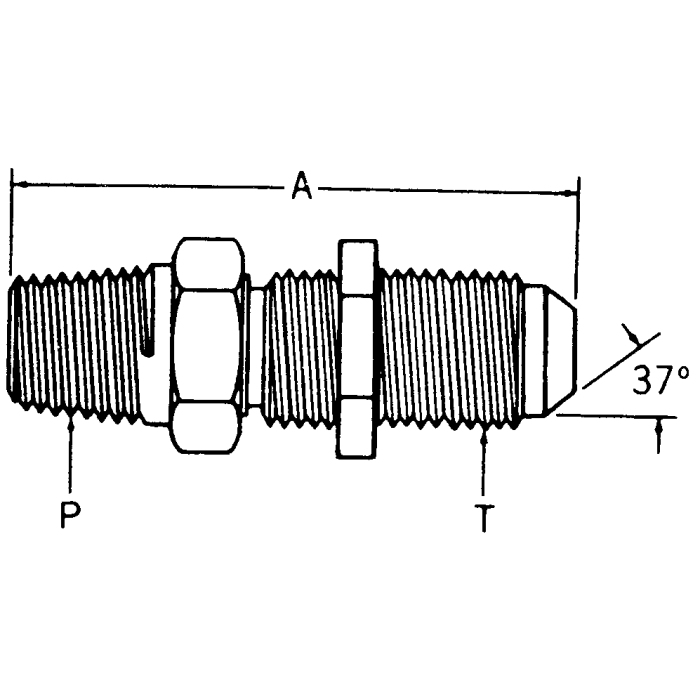

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, Straight Bulkhead

Description & Features

Crafted by Brennan Industries Inc, this steel adapter ensures reliable connections in high-pressure environments. The adapter features a 3/8-18 male NPT thread and a 9/16-18 male JIC 37deg; flare, facilitating robust and leak-free joins.

The straight bulkhead design supports installation through panels or partitions, enhancing the structural integrity of the connection. Engineered with precision, it is ideal for applications requiring durable and efficient connections between different thread types.

Manufactured to stringent quality standards, this adapter offers excellent resistance to wear, ensuring longevity in demanding environments. With a 0.38-inch tube O.D., it is designed to meet rigorous performance criteria.

MPN: 2706-06-06

Supplier Part Number: 2706-06-06

Specifications

A 2.19	Alternate Part Numbers Alternate Part Number C1DW83	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2706-06-06	Thread 1 3/8-18	Thread 2 9/16-18	Thread Sealant No	Tube O.D. 0.38	Product Weight 0.13 lbs

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2706-08-08 Steel Male NPT To JIC Bulkhead	0.5	1/2-14	3/4-16	2.57
2240-12-12S Steel Male NPT To JIC Bulkhead	0.75	3/4-14	1-1/16-12	2.92
2240-16-16S Steel Male NPT To JIC Bulkhead	1	1-11-1/2	1-5/16-12	3.11
2240-4-4S Steel Male NPT To JIC Bulkhead	0.25	1/4-18	7/16-20	2.03
2240-4-6S Steel Male NPT To JIC Bulkhead	0.38	1/4-18	9/16-18	2.12
2240-6-8S Steel Male NPT To JIC Bulkhead	0.5	3/8-18	3/4-16	2.36
2240-8-10S Steel Male NPT To JIC Bulkhead	0.63	1/2-14	7/8-14	2.71
2706-06-06 Steel Male NPT To JIC Bulkhead	0.38	3/8-18	9/16-18	2.19

Product Questions & Answers (1)

Question by: Marvin A on Dec 2, 2025, 1:15 PM

got a panel mount situation on a hydraulic line and need to go from NPT pipe thread over to JIC flare, this part do that?

Answer by: Customer Support on Dec 4, 2025, 6:09 AM

That's exactly what it's built for. One end is 3/8-18 male NPT and the other is 9/16-18 male JIC 37 degree flare, so it bridges those two thread types in a single fitting. The bulkhead design means it's meant to pass through a panel or partition and lock in place, which keeps the connection anchored rather than floating in line. The lock nut is included for that purpose. Steel construction holds up well in high-pressure hydraulic service.
