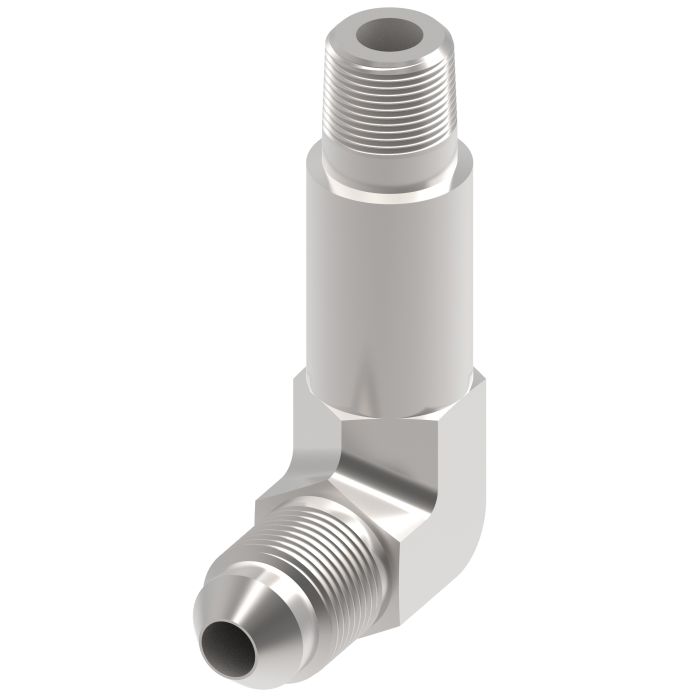

main product photo

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, Longer 90 deg Elbow

Ask A Question

Description & Features

Manufactured by Eaton Aeroquip, this steel adapter transitions a 1/2-14 Male NPT thread to a 3/4-16 Male JIC 37° flare connection in a longer 90° elbow configuration. The Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, Longer 90 deg Elbow is well suited for routing hydraulic lines in tight or angled installations where a standard-length elbow would not provide adequate clearance.

Part of the Eaton Aeroquip 202413 series, this adapter carries catalog number C1AW45 and is designed for use across demanding industries including marine, military, chemical processing, pulp and paper, food and beverage processing, and offshore drilling. Overall dimensions include an A measurement of 3.01 and a B measurement of 1.25.

SKU: 202413-8-8S

Supplier Part Number (MPN): 202413-8-8S

Alternate Part Numbers: C1AW45, MI-00311143, MINO-00015F60790

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.01 in
b Dimensions
1-1/4 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male NPTF
Dimension Standards
SAE 071602/J514
Drop Dimensions
2.87 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-65
Series
202413 Series
Thread Size
3/4-16 x 1/2-14
Tube OD
1/2 in

Similar Products

Model Number Tube O.D. Thread Size Thread 2 a Dimensions b Dimensions Price Action
Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, Longer 90 deg Elbow

202413-4-6S Steel Male NPT To JIC Longer 90 Elbow

0.38

1/4-18 x 9/16-18

9/16-18

2.07 in

1.06 in

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, Longer 90 deg Elbow

202413-6-6S Steel Male NPT To JIC Longer 90 Elbow

0.38

3/8-18, 9/16-18

9/16-18

2.46 in

1.06 in

Product Questions & Answers (1)

Question by: Earl P on Mar 9, 2026, 2:03 PM
got a hydraulic line coming off a pump with a 1/2 NPT male port and I need to swing it 90 degrees over to a JIC fitting, this the right adapter for that?
Answer by: Customer Support on Mar 10, 2026, 5:03 PM
That's exactly what this piece is built for. One end is 1/2-14 male NPT and the other is 3/4-16 male JIC with a 37 degree flare, and the elbow gives you that 90 degree turn. The "longer" designation on this version means you've got a bit more clearance between the two connection points compared to a standard elbow, which helps when you're working in tighter quarters or need to avoid clashing with nearby hardware.
