Steel Adapter, 3/4-14 Male NPT Branch To 7/8-14 Male JIC 37 deg Flare Run, Tee

Description & Features

This steel adapter features a 3/4-14 Male NPT branch and a 7/8-14 Male JIC 37 deg Flare run, configured in a tee shape. This pipe to 37° Flare Steel Adapters part has a Thread 1 size of 3/4-14 and a Thread 2 size of 7/8-14.

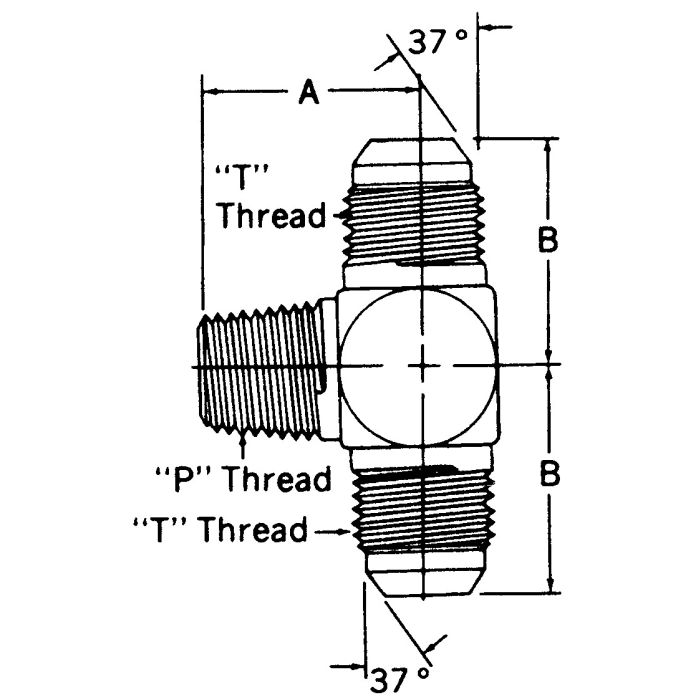

The A dimension is 1.59 and the B dimension is 1.55. It is a C1DW56 catalog item from Brennan Industries and accepts a 0.63 Tube O D.

SKU: 2601-10-10-12

Supplier Part Number (MPN): 2601-10-10-12-FG

Specifications

A 1.59	B 1.55	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2601-10-10-12-FG	Thread 1 3/4-14	Thread 2 7/8-14	Thread Sealant No	Tube O.D. 0.63	Tube O.D. 0.63	Product Weight 0.53 lbs

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2030-12-12S Steel Male NPT To JIC Run Tee	0.75	3/4-14	1-1/16-12	1.59	1.66
2030-16-16S Steel Male NPT To JIC Run Tee	1	1-11-1/2	1-5/16-12	1.97	1.81
2030-2-4S Steel Male NPT To JIC Run Tee	0.25	1/8-27	7/16-20	0.78	0.89
2030-4-4S Steel Male NPT To JIC Run Tee	0.25	1/4-18	7/16-20	1.09	1.05
2030-4-6S Steel Male NPT To JIC Run Tee	0.38	1/4-18	9/16-18	1.09	1.06
2030-6-6S Steel Male NPT To JIC Run Tee	0.38	3/8-18	9/16-18	1.22	1.06
2030-8-10S Steel Male NPT To JIC Run Tee	0.63	1/2-14	7/8-14	1.47	1.45
2030-8-8S Steel Male NPT To JIC Run Tee	0.5	1/2-14	3/4-16	1.47	1.33
2601-05-05-02 Steel Male NPT To JIC Run Tee	0.31	1/8-27	1/2-20	0.78	0.95
2601-05-05-04 Steel Male NPT To JIC Run Tee	0.31	1/4-18	1/2-20	1.09	1.05
2601-10-10-12 Steel Male NPT To JIC Run Tee	0.63	3/4-14	7/8-14	1.59	1.55
