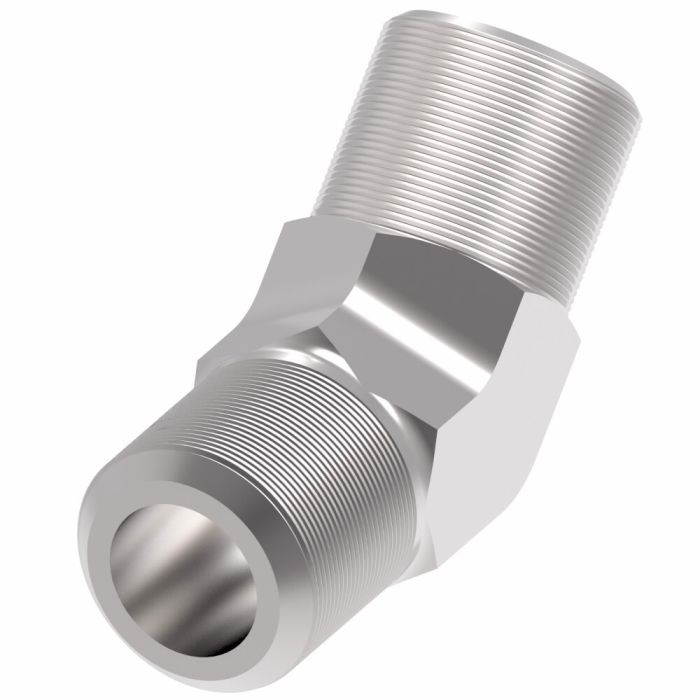

main product photo

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male SAE 45 deg Flare, 45 deg Elbow

Ask A Question

Description & Features

Designed for cross-standard connections in demanding industrial environments, this Eaton Aeroquip Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male SAE 45 Deg Flare, 45 Deg Elbow bridges NPT and SAE 45-degree flare fittings in a compact elbow configuration. The 45-degree angle aids routing in space-constrained installations where straight adapters are impractical.

Constructed from steel and manufactured under the Eaton Aeroquip 2023 Series, this adapter is suited for use across marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling applications. The male NPT thread conforms to 1-1/4-11-1/2 and the male SAE flare end meets 1-5/8-12 standards, making it a reliable solution for connecting mixed-thread hydraulic lines.

SKU: 2023-20-20S

Supplier Part Number (MPN): 2023-20-20S

Alternate Part Numbers: C1AV74, MI-00313368, MINO-00015F62102

Specifications

A
1.54
Alternate Part Numbers
Alternate Part Number C1AV74, Alternate Part Number MI-00313368, Alternate Part Number MINO-00015F62102, Alternate Part Number MINO-00925X08802
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.69
Drop Dimension
1.59
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2023-20-20S
Thread 1
1-1/4-11-1/2
Thread 2
1-5/8-12
Thread Sealant
No
Tube O.D.
1.25
Tube O.D.
1.25
Product Weight
1.15 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male SAE 45 deg Flare, 45 deg Elbow

2023-12-12S Steel Male NPT To SAE 45 deg Elbow

0.75

3/4-14

1-1/16-12

1.2

1.28

Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male SAE 45 deg Flare, 45 deg Elbow

2023-12-16S Steel Male NPT To SAE 45 deg Elbow

1

3/4-14

1-5/16-12

1.29

1.47

Steel Adapter, 3/4-14 Male NPT To 3/4-16 Male SAE 45 deg Flare, 45 deg Elbow

2023-12-8S Steel Male NPT To SAE 45 deg Elbow

0.5

3/4-14

3/4-16

1.2

1.1

Steel Adapter, 1-11-1/2 Male NPT To 1-1/16-12 Male SAE 45 deg Flare, 45 deg Elbow

2023-16-12S Steel Male NPT To SAE 45 deg Elbow

0.75

1-11-1/2

1-1/16-12

1.48

1.52

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Male SAE 45 deg Flare, 45 deg Elbow

2023-16-16S Steel Male NPT To SAE 45 deg Elbow

1

1-11-1/2

1-5/16-12

1.48

1.47

Steel Adapter, 1/8-27 Male NPT To 5/16-18 Male SAE 45 deg Flare, 45 deg Elbow

2023-2-3S Steel Male NPT To SAE 45 deg Elbow

0.19

1/8-27

5/16-18

0.58

0.76

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male SAE 45 deg Flare, 45 deg Elbow

2023-2-4S Steel Male NPT To SAE 45 deg Elbow

0.25

1/8-27

7/16-20

0.58

0.76

Steel Adapter, 1/8-27 Male NPT To 9/16-18 Male SAE 45 deg Flare, 45 deg Elbow

2023-2-6S Steel Male NPT To SAE 45 deg Elbow

0.38

1/8-27

9/16-18

0.72

0.83

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male SAE 45 deg Flare, 45 deg Elbow

2023-20-20S Steel Male NPT To SAE 45 deg Elbow

1.25

1-1/4-11-1/2

1-5/8-12

1.54

1.69

Steel Adapter, 1-1/2-11-1/2 Male NPT To 1-7/8-12 Male SAE 45 deg Flare, 45 deg Elbow

2023-24-24S Steel Male NPT To SAE 45 deg Elbow

1.5

1-1/2-11-1/2

1-7/8-12

1.77

1.78

Steel Adapter, 2-11-1/2 Male NPT To 2-1/2-12 Male SAE 45 deg Flare, 45 deg Elbow

2023-32-32S Steel Male NPT To SAE 45 deg Elbow

2

2-11-1/2

2-1/2-12

2.11

2.22

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Male SAE 45 deg Flare, 45 deg Elbow

2023-4-4S Steel Male NPT To SAE 45 deg Elbow

0.25

1/4-18

7/16-20

0.86

0.82

Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male SAE 45 deg Flare, 45 deg Elbow

2023-4-6S Steel Male NPT To SAE 45 deg Elbow

0.38

1/4-18

9/16-18

0.86

0.83

Steel Adapter, 1/4-18 Male NPT To 3/4-16 Male SAE 45 deg Flare, 45 deg Elbow

2023-4-8S Steel Male NPT To SAE 45 deg Elbow

0.5

1/4-18

3/4-16

0.95

1.04

Steel Adapter, 3/8-18 Male NPT To 7/8-14 Male SAE 45 deg Flare, 45 deg Elbow

2023-6-10S Steel Male NPT To SAE 45 deg Elbow

0.63

3/8-18

7/8-14

0.96

1.14

Steel Adapter, 3/8-18 Male NPT To 7/16-20 Male SAE 45 deg Flare, 45 deg Elbow

2023-6-4S Steel Male NPT To SAE 45 deg Elbow

0.25

3/8-18

7/16-20

0.95

0.79

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male SAE 45 deg Flare, 45 deg Elbow

2023-6-6S Steel Male NPT To SAE 45 deg Elbow

0.38

3/8-18

9/16-18

0.95

0.88

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Male SAE 45 deg Flare, 45 deg Elbow

2023-6-8S Steel Male NPT To SAE 45 deg Elbow

0.5

3/8-18

3/4-16

0.95

0.98

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Male SAE 45 deg Flare, 45 deg Elbow

2023-8-10S Steel Male NPT To SAE 45 deg Elbow

0.63

1/2-14

7/8-14

1.17

1.11

Steel Adapter, 1/2-14 Male NPT To 1-1/16-12 Male SAE 45 deg Flare, 45 deg Elbow

2023-8-12S Steel Male NPT To SAE 45 deg Elbow

0.75

1/2-14

1-1/16-12

1.2

1.39

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Male SAE 45 deg Flare, 45 deg Elbow

2023-8-6S Steel Male NPT To SAE 45 deg Elbow

0.38

1/2-14

9/16-18

1.17

0.91

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male SAE 45 deg Flare, 45 deg Elbow

2023-8-8S Steel Male NPT To SAE 45 deg Elbow

0.5

1/2-14

3/4-16

1.17

1

Product Questions & Answers (1)

Question by: Lyle R on Oct 29, 2025, 8:37 PM
Got a line coming off a hydraulic pump that's running 1-1/4 male NPT and I need to redirect it at an angle, does this fitting make that turn for me?
Answer by: Customer Support on Oct 31, 2025, 6:38 AM
That's what this one does. It bridges a 1-1/4-11-1/2 male NPT thread to a 1-5/8-12 male SAE 45 degree flare connection, and the body itself is bent at 45 degrees, so you get a clean directional change right at the fitting. Steel construction, Eaton Aeroquip 2023 series. If your line is running straight and you need it to angle off without adding a separate elbow and adapter, this handles both jobs in one piece.
