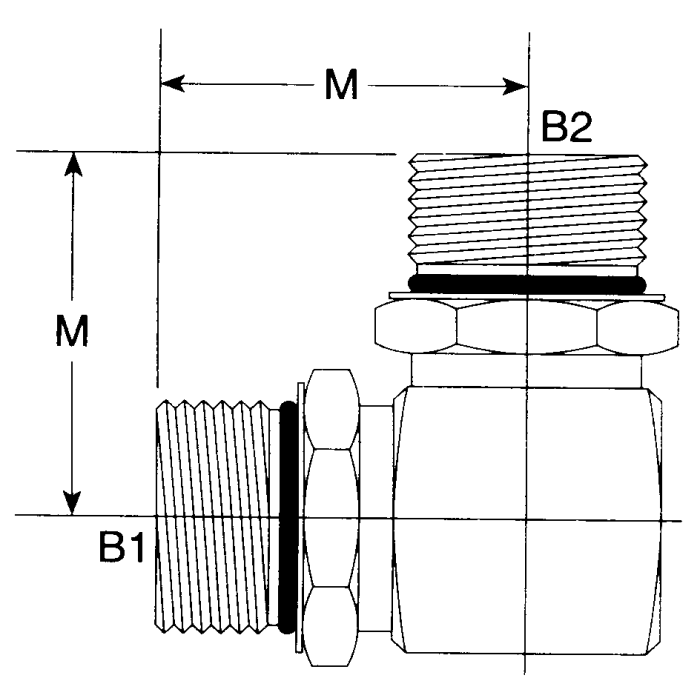

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Description & Features

This steel adapter features a 90-degree elbow design, facilitating connections in hydraulic systems where space is limited or directional changes are required. It adapts between 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) connections.

The Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow ensures a secure and leak-free seal in demanding hydraulic applications. This OM Industrial Products Corp adapter is also known under catalog number C1EU13.

SKU: 6807-08-08-NWO

Supplier Part Number (MPN): 6807-08-08-NWO-FG

Alternate Part Numbers: 6807-08-08, C1EU13, MI-08579789, MINO-00028X08241

Specifications

Alternate Part Numbers Alternate Part Number 6807-08-08, Alternate Part Number C1EU13, Alternate Part Number MI-08579789, Alternate Part Number MINO-00028X08241	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	M 1.47	Supplier Part Number 6807-08-08-NWO-FG	Thread 1 3/4-16	Thread 2 3/4-16	Thread Sealant No	Tube O.D. 0.50	Tube O.D. 0.5	Product Weight 0.29 lbs

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	M
6807-04-04-NWO Steel Male ORB 90 deg Elbow	0.25	7/16-20	7/16-20	1
6807-08-08-NWO Steel Male ORB 90 deg Elbow	0.5	3/4-16	3/4-16	1.47
6807-10-10-NWO Steel Male ORB 90 deg Elbow	0.63	7/8-14	7/8-14	1.47

Product Questions & Answers (1)

Question by: Vince H on Apr 12, 2025, 11:04 AM

Is this elbow fitting gonna fit my 3/4-16 SAE O-ring ports, or am I gonna have to send it back?

Answer by: Customer Support on Apr 14, 2025, 7:22 AM

This steel adapter is made to connect two 3/4-16 male SAE O-ring boss (straight thread O-ring) ports at a 90-degree angle. So yeah, it should fit those ports just fine.
