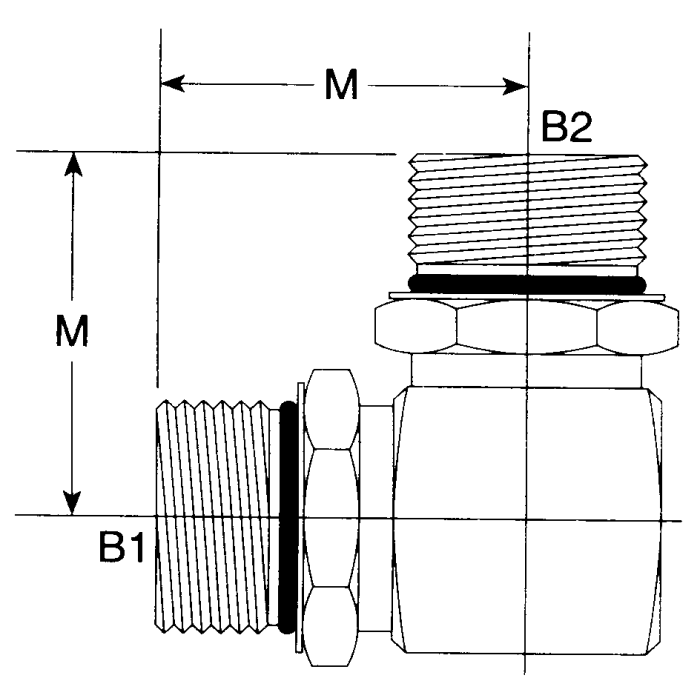

Configured as a same-size, same-thread 90-degree elbow, this steel adapter connects 7/8-14 Male SAE O-Ring Boss ports on both ends, making it well-suited for redirecting hydraulic lines where space constraints or routing angles require a right-angle transition. The straight thread O-ring configuration on each end provides a reliable, leak-resistant seal without the need for thread sealants.
The Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow carries a tube O.D. of 0.63 inches and is manufactured by Brennan Industries. Steel construction makes it appropriate for demanding hydraulic circuit applications where durability and pressure integrity are required.
SKU: 6807-10-10-NWO
Supplier Part Number (MPN): 6807-10-10-NWO-FG
Alternate Part Numbers: 6807-10-10, C1EU14
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part Number6807-10-10, Alternate Part Number C1EU14
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
M
1.47
Supplier Part Number
6807-10-10-NWO-FG
Thread 1
7/8-14
Thread 2
7/8-14
Thread Sealant
No
Tube O.D.
0.63
Tube O.D.
0.63
Product Weight
0.45 lbs
Similar Products
Model Number
Tube O.D.
Thread 1
Thread 2
M
Price
Action
6807-04-04-NWOSteel Male ORB 90 deg Elbow
0.25
7/16-20
7/16-20
1
6807-08-08-NWOSteel Male ORB 90 deg Elbow
0.5
3/4-16
3/4-16
1.47
6807-10-10-NWOSteel Male ORB 90 deg Elbow
0.63
7/8-14
7/8-14
1.47
Product Questions & Answers (1)
Question by: Eddie P on May 24, 2025, 6:35 PM
both ends are 7/8-14 ORB on this one, right? just want to make sure before I order a bunch of em
Answer by: Customer Support on May 26, 2025, 6:03 AM
Correct on both counts. Each end is a 7/8-14 Male SAE O-Ring Boss thread, so you've got matching straight thread fittings on either side. The 90-degree angle between them is fixed, not adjustable, so make sure your routing lines up before you commit to a quantity.
