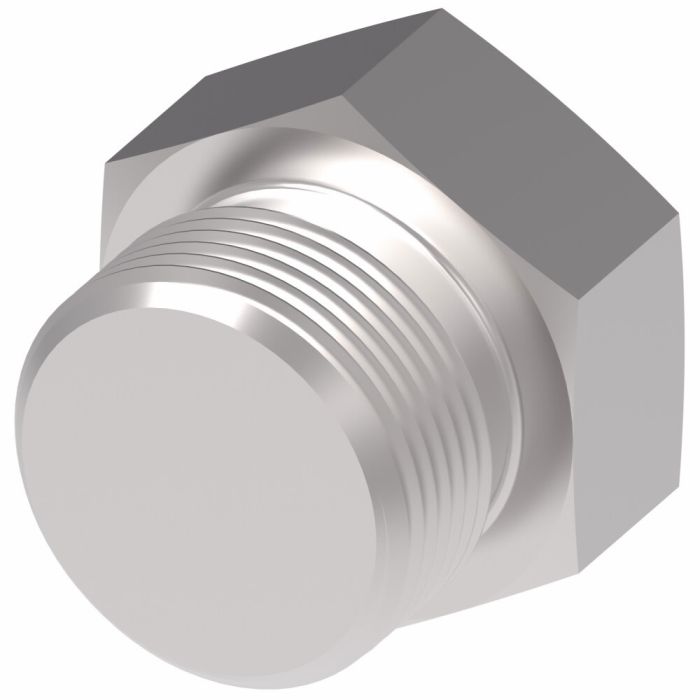

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

Ask A Question

Description & Features

Manufactured from steel and rated for a minimum working temperature of -40°F, this fitting is designed for reliable performance across demanding industrial environments including marine, military, chemical processing, pulp and paper, food and beverage processing, and offshore drilling applications. The SAE O-Ring Boss thread configuration on both ends provides a leak-resistant mechanical seal without thread sealant. Seal part 22617-20 is included with this fitting.

The Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug features a 1-5/8-12 thread size and a hex plug configuration for straightforward installation and removal with standard tooling. It belongs to the Danfoss Power Solutions (Aeroquip) 900598 Series and carries catalog number C1CA96. The UNSPSC code for this product is 27121700 and it is classified as EAR99 for export purposes.

SKU: 900598-20S

Supplier Part Number (MPN): 900598-20S

Alternate Part Numbers: C1CA96, MI-00320672, MINO-00015F65926

Specifications

A
1.20
Alternate Part Numbers
Alternate Part Number C1CA96, Alternate Part Number MI-00320672, Alternate Part Number MINO-00015F65926
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Type 1
SAE ORB
End Type 2
ORB
Minimum Working Temperature
-40
Seal Part if Included
22617-20
Supplier Part Number
900598-20S
Thread 2
1-5/8-12
Thread Sealant
No
Product Weight
0.37 lbs

Related Documents

Similar Products

Model Number Thread 2 A Price Action
Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-10S Steel Male ORB Hex Plug

7/8-14

0.93

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-12S Steel Male ORB Hex Plug

1-1/16-12

1.09

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-20S Steel Male ORB Hex Plug

1-5/8-12

1.2

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-4S Steel Male ORB Hex Plug

7/16-20

0.67

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-6S Steel Male ORB Hex Plug

9/16-18

0.73

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-8S Steel Male ORB Hex Plug

3/4-16

0.8

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-16S Steel Male ORB Hex Plug

1-5/16-12

1.12

Steel Adapter, 2-1/2-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-32S Steel Male ORB Hex Plug

2-1/2-12

1.43

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

900598-5S Steel Male ORB Hex Plug

1/2-20

0.67

Product Questions & Answers (3)

Question by: Vince R on Aug 14, 2025, 7:41 PM
what industries is this plug rated for, and will the o-ring seal hold up in chemical or food processing lines?
Answer by: Customer Support on Aug 16, 2025, 6:06 AM
For chemical processing and food and beverage applications, this adapter is listed as suitable right out of the specs. The included seal part (22617-20) is paired with the plug from the factory, so you're not hunting down a separate o-ring to make it work. The straight thread o-ring boss design gives you a reliable metal-to-metal seat with the o-ring doing the sealing work, which tends to hold up better in process environments than tapered thread connections that rely on thread engagement alone. Marine, military, offshore drilling, and pulp and paper are also listed applications, so the material and sealing approach are built with demanding service in mind.
Question by: Kirk F on May 13, 2025, 12:06 PM
what industries is this plug rated for? trying to figure out if it'll hold up in a chemical processing setup we got running
Answer by: Customer Support on May 15, 2025, 11:31 AM
Chemical processing is actually one of the listed application areas for this plug, along with marine, military, pulp and paper, food and beverage processing, and offshore drilling. The SAE O-Ring Boss straight thread design gives it a reliable seal that holds up in demanding process environments, which is why it shows up across that range of industries.
Question by: Tony F on Sep 17, 2025, 9:10 PM
So this is just a plug, right? No threads on the outside?
Answer by: Customer Support on Sep 19, 2025, 10:55 AM
That's correct. This Eaton Aeroquip adapter is a straight thread O-ring boss plug, so it has threads on the inside and a hex shape on the outside for tightening. It's designed to seal an O-ring boss port.
