main product photo

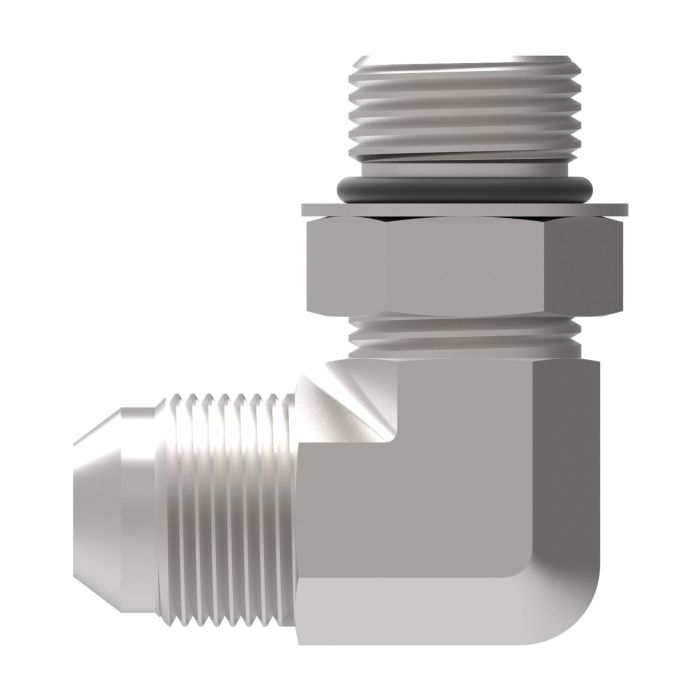

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) to 7/8-14 Male JIC 37 deg Flare connection with a 90-degree elbow.

Suitable for applications in marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling environments. This adapter has a drop dimension of 1.4500 and can withstand a minimum working temperature of -65 degrees.

It is part of the Straight Thread O-Ring to 37° Flare Steel Adapters product model line. The end size 1 and end size 2 are both 0.875, with a thread 1 and thread 2 size of 7/8-14. The hex size 2 measures 0.87. Tube O D is 0.63.

SKU: 2062-10-10S

Supplier Part Number (MPN): 2062-10-10S

Alternate Part Numbers: C1AZ32, MI-00303362, MINO-00015F52203

Specifications

A
1.71
Alternate Part Numbers
Alternate Part Number C1AZ32, Alternate Part Number MI-00303362, Alternate Part Number MINO-00015F52203
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.45
Drop Dimension
1.45
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.88
End Size 2
0.88
End Type 1
SAE ORB
End Type 2
SAE 37
Hex Size 2
0.87
Minimum Working Temperature
-65
Supplier Part Number
2062-10-10S
Thread 1
7/8-14
Thread 2
7/8-14
Thread Sealant
No
Tube O.D.
0.63
Tube O.D.
0.63
Product Weight
0.35 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-10S Steel Male ORB To JIC 90 Elbow

0.63

7/8-14

7/8-14

1.71

1.45

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-12S Steel Male ORB To JIC 90 Elbow

0.75

7/8-14

1-1/16-12

1.78

1.66

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-6S Steel Male ORB To JIC 90 Elbow

0.38

7/8-14

9/16-18

1.7

1.14

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-8S Steel Male ORB To JIC 90 Elbow

0.5

7/8-14

3/4-16

1.71

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-12S Steel Male ORB To JIC 90 Elbow

0.75

1-1/16-12

1-1/16-12

1.94

1.66

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-16S Steel Male ORB To JIC 90 Elbow

1

1-1/16-12

1-5/16-12

2.05

1.81

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-8S Steel Male ORB To JIC 90 Elbow

0.5

1-1/16-12

3/4-16

1.94

1.36

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-12S Steel Male ORB To JIC 90 Elbow

0.75

1-5/16-12

1-1/16-12

2.05

1.76

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-16S Steel Male ORB To JIC 90 Elbow

1

1-5/16-12

1-5/16-12

2.05

1.81

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-8S Steel Male ORB To JIC 90 Elbow

0.5

1-5/16-12

3/4-16

2.05

1.47

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-20-16S Steel Male ORB To JIC 90 Elbow

1

1-5/8-12

1-5/16-12

2.2

2.09

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-24-20S Steel Male ORB To JIC 90 Elbow

1.25

1-7/8-12

1-5/8-12

2.39

2.2

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-4-4S Steel Male ORB To JIC 90 Elbow

0.25

7/16-20

7/16-20

1.03

0.89

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-4-6S Steel Male ORB To JIC 90 Elbow

0.38

7/16-20

9/16-18

1.19

1.06

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-4S Steel Male ORB To JIC 90 Elbow

0.25

9/16-18

7/16-20

1.25

1.05

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-6S Steel Male ORB To JIC 90 Elbow

0.38

9/16-18

9/16-18

1.25

1.06

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-8S Steel Male ORB To JIC 90 Elbow

0.5

9/16-18

3/4-16

1.32

1.25

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-6S Steel Male ORB To JIC 90 Elbow

0.38

3/4-16

9/16-18

1.45

1.14

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-8S Steel Male ORB To JIC 90 Elbow

0.5

3/4-16

3/4-16

1.45

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-10S Steel Male ORB To JIC 90 Elbow

0.63

1-1/16-12

7/8-14

1.93

1.54

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-20S Steel Male ORB To JIC 90 Elbow

1.25

1-5/16-12

1-5/8-12

2.21

2.06

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-20-20S Steel Male ORB To JIC 90 Elbow

1.25

1-5/8-12

1-5/8-12

2.25

2.06

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-24-24S Steel Male ORB To JIC 90 Elbow

1.5

1-7/8-12

1-7/8-12

2.39

2.33

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-5-5S Steel Male ORB To JIC 90 Elbow

0.31

1/2-20

1/2-20

1.09

0.95

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-5-6S Steel Male ORB To JIC 90 Elbow

0.38

1/2-20

9/16-18

1.19

1.06

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-10S Steel Male ORB To JIC 90 Elbow

0.63

3/4-16

7/8-14

1.54

1.45

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-12S Steel Male ORB To JIC 90 Elbow

0.75

3/4-16

1-1/16-12

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

6801-06-12-NWO Steel Male ORB To JIC 90 Elbow

0.38

1-1/16-12

9/16-18

1.94

1.29

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

6801-08-04-NWO Steel Male ORB To JIC 90 Elbow

0.5

7/16-20

3/4-16

1.18

1.25

Steel Adapter, 1-3/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-3/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-14-14-NWO Steel Male ORB To JIC 90 Elbow

0.88

1-3/16-12

1-3/16-12

2

1.72

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-16-08-NWO Steel Male ORB To JIC 90 Elbow

1

3/4-16

1-5/16-12

1.74

1.81

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

6801-10-06-NWO Steel Male ORB To JIC 90 Elbow

0.63

9/16-18

7/8-14

1.4

1.45

Steel Adapter, 3/8-24 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

6801-03-03-NWO Steel Male ORB To JIC 90 Elbow

0.19

3/8-24

3/8-24

0.92

0.86

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-04-05-NWO Steel Male ORB To JIC 90 Elbow

0.25

1/2-20

7/16-20

1.13

0.95

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-05-04-NWO Steel Male ORB To JIC 90 Elbow

0.31

7/16-20

1/2-20

1.06

0.98

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-05-08-NWO Steel Male ORB To JIC 90 Elbow

0.31

3/4-16

1/2-20

1.45

1.09

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-16-10-NWO Steel Male ORB To JIC 90 Elbow

1

7/8-14

1-5/16-12

1.93

1.81

Product Questions & Answers (4)

Question by: Neal T on Sep 9, 2025, 6:30 AM
got a hose end that’s 7/8-14 JIC, and the port on the block is 7/8-14 ORB. is this the elbow that ties those together?
Answer by: Customer Support on Sep 10, 2025, 7:54 AM
For that mix of ends, yes. One side is a 7/8-14 male SAE O-Ring Boss (straight thread O-ring) and the other side is a 7/8-14 male JIC 37 degree flare, built as a 90 degree elbow.
Question by: Sherry C on Sep 25, 2025, 5:52 PM
Will this elbow fitting hold up okay in a chemical plant environment?
Answer by: Customer Support on Sep 27, 2025, 3:57 PM
This Eaton Aeroquip adapter is suitable for chemical processing applications, so it should be compatible.
Question by: Janet C on Feb 26, 2026, 4:49 PM
trying to swap out an old elbow, is this the one that goes from 7/8-14 male ORB over to 7/8-14 male JIC and turns 90
Answer by: Customer Support on Feb 28, 2026, 6:49 AM
Matches that setup. It is an Eaton Aeroquip 2062 Series 90 degree elbow adapter with a 7/8-14 male SAE O-Ring Boss (straight thread O-ring) on one end and a 7/8-14 male JIC 37 degree flare on the other.
Question by: Connie W on Feb 14, 2026, 6:19 PM
Got a manifold block with a 7/8-14 ORB port and need to run a JIC line off it at a right angle. this the right fitting for that?
Answer by: Customer Support on Feb 16, 2026, 7:56 AM
That's what this adapter is built for. One end threads into a 7/8-14 SAE O-Ring Boss port, and the other end connects to a 7/8-14 Male JIC 37-degree flare line. The 90-degree elbow gives you that right-angle routing without needing extra fittings in between. It's part of the Eaton Aeroquip 2062 Series, so the fit and finish are consistent with what you'd expect from that line.
