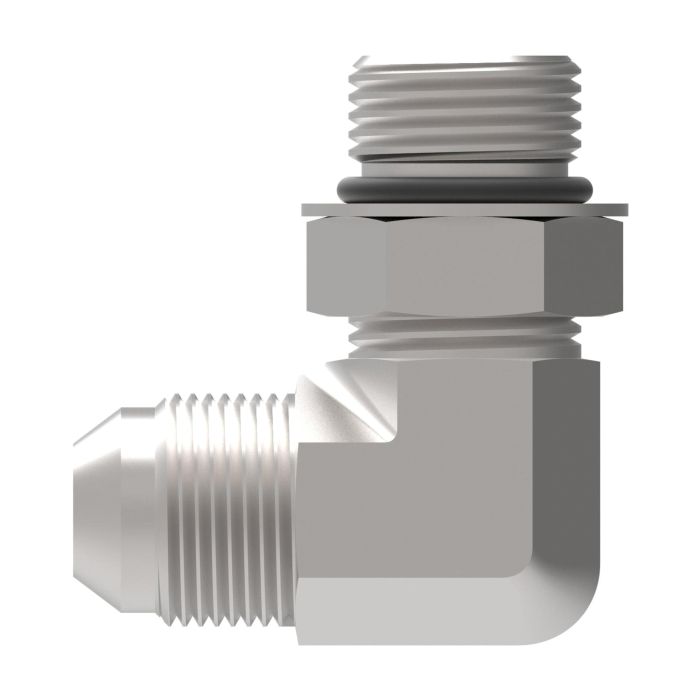

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

Designed for demanding industrial environments, the Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow is an Eaton Aeroquip 2062 Series fitting built to handle routing changes in hydraulic lines where a right-angle transition between SAE O-Ring Boss and JIC 37° flare connections is required.

This adapter is well suited for use across marine and military equipment, chemical processing systems, pulp and paper machinery, food and beverage processing facilities, and offshore drilling applications. The 90-degree elbow configuration supports compact routing in space-constrained installations. With an A dimension of 2.05 and a B dimension of 1.47, the fitting integrates cleanly into standard hydraulic assemblies. The catalog reference for this part is C1AZ44.

SKU: 2062-16-8S

Supplier Part Number (MPN): 2062-16-8S

Alternate Part Numbers: C1AZ44, MI-00318367, MINO-00015F64949

Specifications

A
2.05
Alternate Part Numbers
Alternate Part Number C1AZ44, Alternate Part Number MI-00318367, Alternate Part Number MINO-00015F64949
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.47
Drop Dimension
1.52
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 2
0.75
End Type 1
SAE ORB
End Type 2
SAE 37
Hex Size 2
1.26
Minimum Working Temperature
-65
Seal Part if Included
22617-16
Supplier Part Number
2062-16-8S
Thread 1
1-5/16-12
Thread 2
3/4-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.80 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-10S Steel Male ORB To JIC 90 Elbow

0.63

7/8-14

7/8-14

1.71

1.45

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-12S Steel Male ORB To JIC 90 Elbow

0.75

7/8-14

1-1/16-12

1.78

1.66

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-6S Steel Male ORB To JIC 90 Elbow

0.38

7/8-14

9/16-18

1.7

1.14

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-8S Steel Male ORB To JIC 90 Elbow

0.5

7/8-14

3/4-16

1.71

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-12S Steel Male ORB To JIC 90 Elbow

0.75

1-1/16-12

1-1/16-12

1.94

1.66

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-16S Steel Male ORB To JIC 90 Elbow

1

1-1/16-12

1-5/16-12

2.05

1.81

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-8S Steel Male ORB To JIC 90 Elbow

0.5

1-1/16-12

3/4-16

1.94

1.36

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-12S Steel Male ORB To JIC 90 Elbow

0.75

1-5/16-12

1-1/16-12

2.05

1.76

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-16S Steel Male ORB To JIC 90 Elbow

1

1-5/16-12

1-5/16-12

2.05

1.81

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-8S Steel Male ORB To JIC 90 Elbow

0.5

1-5/16-12

3/4-16

2.05

1.47

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-20-16S Steel Male ORB To JIC 90 Elbow

1

1-5/8-12

1-5/16-12

2.2

2.09

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-24-20S Steel Male ORB To JIC 90 Elbow

1.25

1-7/8-12

1-5/8-12

2.39

2.2

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-4-4S Steel Male ORB To JIC 90 Elbow

0.25

7/16-20

7/16-20

1.03

0.89

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-4-6S Steel Male ORB To JIC 90 Elbow

0.38

7/16-20

9/16-18

1.19

1.06

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-4S Steel Male ORB To JIC 90 Elbow

0.25

9/16-18

7/16-20

1.25

1.05

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-6S Steel Male ORB To JIC 90 Elbow

0.38

9/16-18

9/16-18

1.25

1.06

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-8S Steel Male ORB To JIC 90 Elbow

0.5

9/16-18

3/4-16

1.32

1.25

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-6S Steel Male ORB To JIC 90 Elbow

0.38

3/4-16

9/16-18

1.45

1.14

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-8S Steel Male ORB To JIC 90 Elbow

0.5

3/4-16

3/4-16

1.45

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-10S Steel Male ORB To JIC 90 Elbow

0.63

1-1/16-12

7/8-14

1.93

1.54

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-20S Steel Male ORB To JIC 90 Elbow

1.25

1-5/16-12

1-5/8-12

2.21

2.06

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-20-20S Steel Male ORB To JIC 90 Elbow

1.25

1-5/8-12

1-5/8-12

2.25

2.06

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-24-24S Steel Male ORB To JIC 90 Elbow

1.5

1-7/8-12

1-7/8-12

2.39

2.33

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-5-5S Steel Male ORB To JIC 90 Elbow

0.31

1/2-20

1/2-20

1.09

0.95

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-5-6S Steel Male ORB To JIC 90 Elbow

0.38

1/2-20

9/16-18

1.19

1.06

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-10S Steel Male ORB To JIC 90 Elbow

0.63

3/4-16

7/8-14

1.54

1.45

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-12S Steel Male ORB To JIC 90 Elbow

0.75

3/4-16

1-1/16-12

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

6801-06-12-NWO Steel Male ORB To JIC 90 Elbow

0.38

1-1/16-12

9/16-18

1.94

1.29

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

6801-08-04-NWO Steel Male ORB To JIC 90 Elbow

0.5

7/16-20

3/4-16

1.18

1.25

Steel Adapter, 1-3/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-3/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-14-14-NWO Steel Male ORB To JIC 90 Elbow

0.88

1-3/16-12

1-3/16-12

2

1.72

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-16-08-NWO Steel Male ORB To JIC 90 Elbow

1

3/4-16

1-5/16-12

1.74

1.81

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

6801-10-06-NWO Steel Male ORB To JIC 90 Elbow

0.63

9/16-18

7/8-14

1.4

1.45

Steel Adapter, 3/8-24 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

6801-03-03-NWO Steel Male ORB To JIC 90 Elbow

0.19

3/8-24

3/8-24

0.92

0.86

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-04-05-NWO Steel Male ORB To JIC 90 Elbow

0.25

1/2-20

7/16-20

1.13

0.95

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-05-04-NWO Steel Male ORB To JIC 90 Elbow

0.31

7/16-20

1/2-20

1.06

0.98

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-05-08-NWO Steel Male ORB To JIC 90 Elbow

0.31

3/4-16

1/2-20

1.45

1.09

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-16-10-NWO Steel Male ORB To JIC 90 Elbow

1

7/8-14

1-5/16-12

1.93

1.81

Product Questions & Answers (2)

Question by: Danny C on Aug 10, 2025, 9:01 PM
Trying to hook an ORB port to a JIC line and keep the bend tight, is this the 90 degree adapter with 1-5/16-12 on one end and 3/4-16 on the other?
Answer by: Customer Support on Aug 12, 2025, 10:42 AM
For a right angle hookup, this adapter is a 90 degree elbow with a 1-5/16-12 male SAE O-Ring Boss (straight thread O-ring) on one end and a 3/4-16 male JIC 37 degree flare on the other.
Question by: Troy H on Sep 3, 2025, 12:37 PM
trying to hook a -16 ORB port to a -8 JIC hose end, but i need it to turn 90 degrees. is SKU 2062-16-8S the right animal?
Answer by: Customer Support on Sep 5, 2025, 6:24 AM
For that exact connection, this adapter matches up. It is a 90 degree steel elbow with a 1-5/16-12 male SAE O-Ring Boss on one end and a 3/4-16 male JIC 37 degree flare on the other, which is commonly called -16 ORB x -8 JIC.
