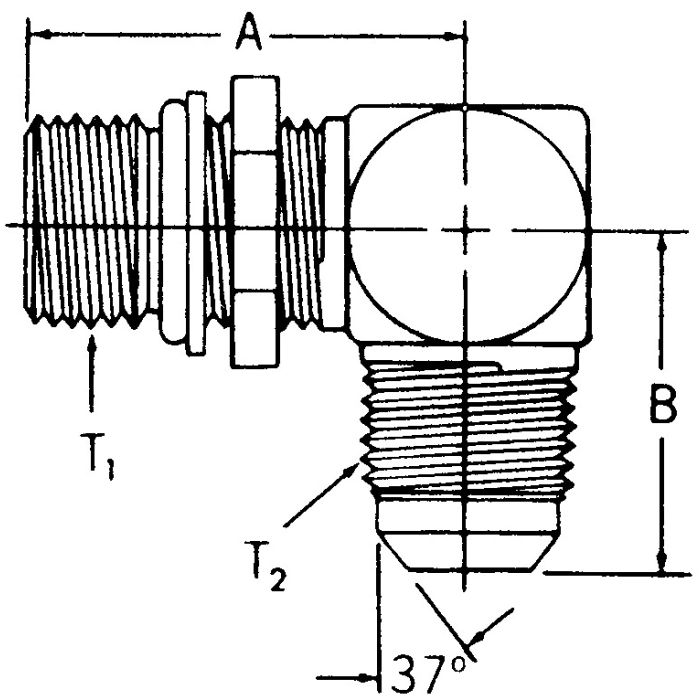

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) connection on one end and a 1/2-20 Male JIC 37 deg Flare connection on the other. The adapter is a 90-degree elbow, facilitating connections at right angles.

The Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow is manufactured by Brennan Industries and corresponds to catalog number C1BX94.

SKU: 6801-05-08-NWO

Supplier Part Number (MPN): 6801-05-08-NWO-FG

Specifications

A
1.45
B
1.09
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
6801-05-08
Thread 1
3/4-16
Thread 2
1/2-20
Thread Sealant
No
Tube O.D.
0.31
Tube O.D.
0.31
Product Weight
0.22 lbs

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-10S Steel Male ORB To JIC 90 Elbow

0.63

7/8-14

7/8-14

1.71

1.45

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-12S Steel Male ORB To JIC 90 Elbow

0.75

7/8-14

1-1/16-12

1.78

1.66

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-6S Steel Male ORB To JIC 90 Elbow

0.38

7/8-14

9/16-18

1.7

1.14

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-10-8S Steel Male ORB To JIC 90 Elbow

0.5

7/8-14

3/4-16

1.71

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-12S Steel Male ORB To JIC 90 Elbow

0.75

1-1/16-12

1-1/16-12

1.94

1.66

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-16S Steel Male ORB To JIC 90 Elbow

1

1-1/16-12

1-5/16-12

2.05

1.81

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-8S Steel Male ORB To JIC 90 Elbow

0.5

1-1/16-12

3/4-16

1.94

1.36

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-12S Steel Male ORB To JIC 90 Elbow

0.75

1-5/16-12

1-1/16-12

2.05

1.76

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-16S Steel Male ORB To JIC 90 Elbow

1

1-5/16-12

1-5/16-12

2.05

1.81

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-8S Steel Male ORB To JIC 90 Elbow

0.5

1-5/16-12

3/4-16

2.05

1.47

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-20-16S Steel Male ORB To JIC 90 Elbow

1

1-5/8-12

1-5/16-12

2.2

2.09

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-24-20S Steel Male ORB To JIC 90 Elbow

1.25

1-7/8-12

1-5/8-12

2.39

2.2

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-4-4S Steel Male ORB To JIC 90 Elbow

0.25

7/16-20

7/16-20

1.03

0.89

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-4-6S Steel Male ORB To JIC 90 Elbow

0.38

7/16-20

9/16-18

1.19

1.06

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-4S Steel Male ORB To JIC 90 Elbow

0.25

9/16-18

7/16-20

1.25

1.05

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-6S Steel Male ORB To JIC 90 Elbow

0.38

9/16-18

9/16-18

1.25

1.06

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-6-8S Steel Male ORB To JIC 90 Elbow

0.5

9/16-18

3/4-16

1.32

1.25

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-6S Steel Male ORB To JIC 90 Elbow

0.38

3/4-16

9/16-18

1.45

1.14

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-8S Steel Male ORB To JIC 90 Elbow

0.5

3/4-16

3/4-16

1.45

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-12-10S Steel Male ORB To JIC 90 Elbow

0.63

1-1/16-12

7/8-14

1.93

1.54

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-16-20S Steel Male ORB To JIC 90 Elbow

1.25

1-5/16-12

1-5/8-12

2.21

2.06

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-20-20S Steel Male ORB To JIC 90 Elbow

1.25

1-5/8-12

1-5/8-12

2.25

2.06

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-24-24S Steel Male ORB To JIC 90 Elbow

1.5

1-7/8-12

1-7/8-12

2.39

2.33

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2062-5-5S Steel Male ORB To JIC 90 Elbow

0.31

1/2-20

1/2-20

1.09

0.95

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2062-5-6S Steel Male ORB To JIC 90 Elbow

0.38

1/2-20

9/16-18

1.19

1.06

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-10S Steel Male ORB To JIC 90 Elbow

0.63

3/4-16

7/8-14

1.54

1.45

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2062-8-12S Steel Male ORB To JIC 90 Elbow

0.75

3/4-16

1-1/16-12

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

6801-06-12-NWO Steel Male ORB To JIC 90 Elbow

0.38

1-1/16-12

9/16-18

1.94

1.29

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

6801-08-04-NWO Steel Male ORB To JIC 90 Elbow

0.5

7/16-20

3/4-16

1.18

1.25

Steel Adapter, 1-3/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-3/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-14-14-NWO Steel Male ORB To JIC 90 Elbow

0.88

1-3/16-12

1-3/16-12

2

1.72

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-16-08-NWO Steel Male ORB To JIC 90 Elbow

1

3/4-16

1-5/16-12

1.74

1.81

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

6801-10-06-NWO Steel Male ORB To JIC 90 Elbow

0.63

9/16-18

7/8-14

1.4

1.45

Steel Adapter, 3/8-24 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

6801-03-03-NWO Steel Male ORB To JIC 90 Elbow

0.19

3/8-24

3/8-24

0.92

0.86

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-04-05-NWO Steel Male ORB To JIC 90 Elbow

0.25

1/2-20

7/16-20

1.13

0.95

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-05-04-NWO Steel Male ORB To JIC 90 Elbow

0.31

7/16-20

1/2-20

1.06

0.98

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

6801-05-08-NWO Steel Male ORB To JIC 90 Elbow

0.31

3/4-16

1/2-20

1.45

1.09

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6801-16-10-NWO Steel Male ORB To JIC 90 Elbow

1

7/8-14

1-5/16-12

1.93

1.81

Product Questions & Answers (1)

Question by: Roger R on Oct 20, 2025, 11:15 AM
Can I use this with a 1/2 inch line?
Answer by: Customer Support on Oct 21, 2025, 6:41 PM
This adapter features a 1/2-20 Male JIC 37 deg Flare connection. That should work for you.
