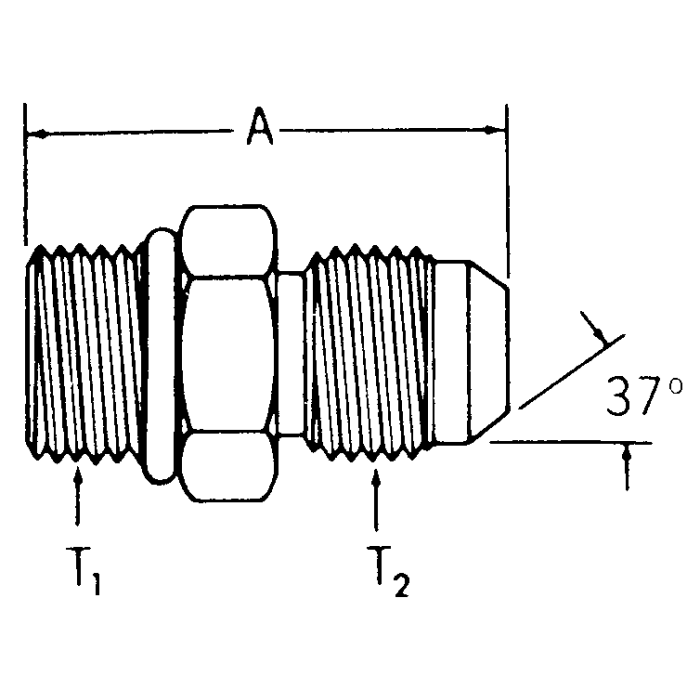

Steel Adapters, Male SAE O-Ring Boss (Straight Thread O-Ring) To Male JIC 37 deg Flare, Straight

Description & Features

Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
202702-10-12S Steel Male ORB To JIC Adapter	0.75	7/8-14	1-1/16-12	1.88
202702-10-16S Steel Male ORB To JIC Adapter	1	7/8-14	1-5/16-12	2.07
202702-10-4S Steel Male ORB To JIC Adapter	0.25	7/8-14	7/16-20	1.49
202702-10-6S Steel Male ORB To JIC Adapter	0.38	7/8-14	9/16-18	1.5
202702-10-8S Steel Male ORB To JIC Adapter	0.5	7/8-14	3/4-16	1.6
202702-12-10S Steel Male ORB To JIC Adapter	0.63	1-1/16-12	7/8-14	1.86
202702-12-12S Steel Male ORB To JIC Adapter	0.75	1-1/16-12	1-1/16-12	1.97
202702-12-16S Steel Male ORB To JIC Adapter	1	1-1/16-12	1-5/16-12	2.04
202702-12-6S Steel Male ORB To JIC Adapter	0.38	1-1/16-12	9/16-18	1.66
202702-12-8S Steel Male ORB To JIC Adapter	0.5	1-1/16-12	3/4-16	1.76
202702-16-12S Steel Male ORB To JIC Adapter	0.75	1-5/16-12	1-1/16-12	1.99
202702-16-16S Steel Male ORB To JIC Adapter	1	1-5/16-12	1-5/16-12	2.04
202702-16-20S Steel Male ORB To JIC Adapter	1.25	1-5/16-12	1-5/8-12	2.33
202702-16-8S Steel Male ORB To JIC Adapter	0.5	1-5/16-12	3/4-16	1.79
202702-20-12S Steel Male ORB To JIC Adapter	0.75	1-5/8-12	1-1/16-12	2.08
202702-20-16S Steel Male ORB To JIC Adapter	1	1-5/8-12	1-5/16-12	2.12
202702-20-20S Steel Male ORB To JIC Adapter	1.25	1-5/8-12	1-5/8-12	2.17
202702-24-16S Steel Male ORB To JIC Adapter	1	1-7/8-12	1-5/16-12	2.2
202702-24-24S Steel Male ORB To JIC Adapter	1.5	1-7/8-12	1-7/8-12	2.37
202702-4-4S Steel Male ORB To JIC Adapter	0.25	7/16-20	7/16-20	1.23
202702-4-6S Steel Male ORB To JIC Adapter	0.38	7/16-20	9/16-18	1.27
202702-5-6S Steel Male ORB To JIC Adapter	0.38	1/2-20	9/16-18	1.27
202702-6-4S Steel Male ORB To JIC Adapter	0.25	9/16-18	7/16-20	1.29
202702-6-6S Steel Male ORB To JIC Adapter	0.38	9/16-18	9/16-18	1.3
202702-6-8S Steel Male ORB To JIC Adapter	0.5	9/16-18	3/4-16	1.44
202702-8-12S Steel Male ORB To JIC Adapter	0.75	3/4-16	1-1/16-12	1.94
202702-8-4S Steel Male ORB To JIC Adapter	0.25	3/4-16	7/16-20	1.37
202702-8-6S Steel Male ORB To JIC Adapter	0.38	3/4-16	9/16-18	1.38
202702-8-8S Steel Male ORB To JIC Adapter	0.5	3/4-16	3/4-16	1.48
6400-04-02-O Steel Male ORB To JIC Adapter	0.25	5/16-24	7/16-20	1.13
202702-10-10S Steel Male ORB To JIC Adapter	0.63	7/8-14	7/8-14	1.7
202702-12-20S Steel Male ORB To JIC Adapter	1.25	1-1/16-12	1-5/8-12	2.3
202702-16-10S Steel Male ORB To JIC Adapter	0.63	1-5/16-12	7/8-14	1.89
202702-20-24S Steel Male ORB To JIC Adapter	1.5	1-5/8-12	1-7/8-12	2.53
202702-24-20S Steel Male ORB To JIC Adapter	1.25	1-7/8-12	1-5/8-12	2.24
202702-4-8S Steel Male ORB To JIC Adapter	0.5	7/16-20	3/4-16	1.49
202702-5-5S Steel Male ORB To JIC Adapter	0.31	1/2-20	1/2-20	1.23
202702-6-10S Steel Male ORB To JIC Adapter	0.63	9/16-18	7/8-14	1.71
202702-8-10S Steel Male ORB To JIC Adapter	0.63	3/4-16	7/8-14	1.64
6400-04-03-O Steel Male ORB To JIC Adapter	0.25	3/8-24	7/16-20	1.17
6400-04-05-O Steel Male ORB To JIC Adapter	0.25	1/2-20	7/16-20	1.23
6400-04-12-O Steel Male ORB To JIC Adapter	0.25	1-1/16-12	7/16-20	1.65
6400-05-04-O Steel Male ORB To JIC Adapter	0.31	7/16-20	1/2-20	1.24
6400-08-05-O Steel Male ORB To JIC Adapter	0.5	1/2-20	3/4-16	1.52
6400-16-08-O Steel Male ORB To JIC Adapter	1	3/4-16	1-5/16-12	1.89

Product Questions & Answers (1)

Question by: Eddie R on Sep 24, 2025, 6:18 AM

So, these adapters, they'll work to connect somethin' with a straight thread to somethin' with a flare, right? Both ends bein' the same size?

Answer by: Customer Support on Sep 25, 2025, 12:07 PM

that's the idea. These steel adapters are made to connect a straight thread O-ring boss to a male JIC 37-degree flare, both sized at 7/8-14. It's a pretty common conversion to make in hydraulic setups.
