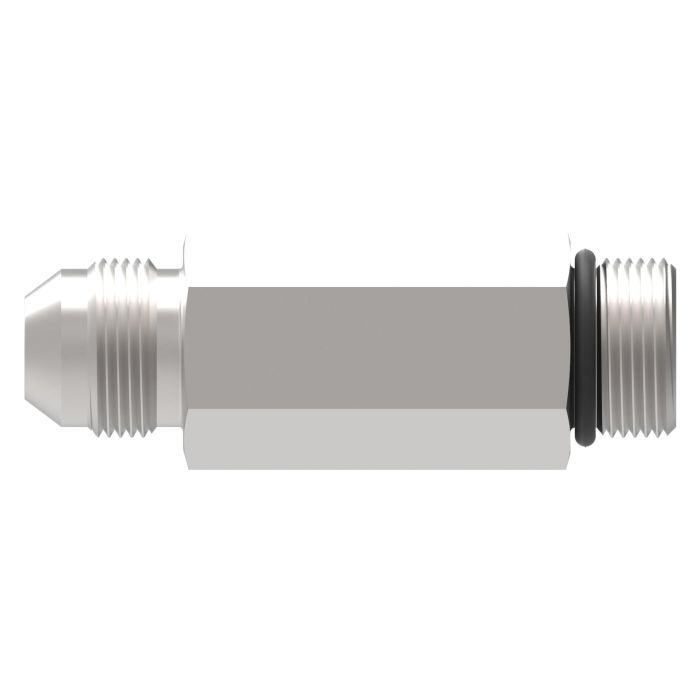

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, Long Straight

Ask A Question

Description & Features

This steel adapter is manufactured by Danfoss Power Solutions (II LLC Aeroquip) and is suitable for applications such as chemical processing, marine and military, food and beverage processing, off-shore drilling, and pulp and paper industries.

Featuring a 9/16-18 thread size on both ends, this Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, Long Straight, catalog number C1HD34, connects a 9/16-18 male SAE O-Ring Boss (Straight Thread O-Ring) to a 9/16-18 male JIC 37 deg flare. It has a minimum working temperature of -40 degrees. End size 1 and end size 2 are both 0.5625. Tube O D is 0.38.

SKU: 202713-6-6S

Supplier Part Number (MPN): 202713-6-6S

Alternate Part Numbers: C1HD34

Specifications

A
2.31
Alternate Part Numbers
Alternate Part Number C1HD34
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.56
End Size 2
0.56
End Type 1
SAE ORB
End Type 2
SAE 37
Minimum Working Temperature
-40
Supplier Part Number
202713-6-6S
Thread 1
9/16-18
Thread 2
9/16-18
Thread Sealant
No
Tube O.D.
0.38
Tube O.D.
0.38
Product Weight
0.07 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, Long Straight

202713-6-6S Steel Male ORB To JIC Long Adapter

0.38

9/16-18

9/16-18

2.31

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, Long Straight

202713-12-12S Steel Male ORB To JIC Long Adapter

0.75

1-1/16-12

1-1/16-12

3.61

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, Long Straight

202713-4-4S Steel Male ORB To JIC Long Adapter

0.25

7/16-20

7/16-20

2.08

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, Long Straight

202713-8-8S Steel Male ORB To JIC Long Adapter

0.5

3/4-16

3/4-16

2.56

Product Questions & Answers (2)

Question by: Kurt B on Feb 25, 2026, 7:50 AM
got a hose end that’s 9/16-18 JIC, will this adapter let me tie into an SAE o-ring boss port the same size?
Answer by: Customer Support on Feb 27, 2026, 8:51 AM
For a straight connection between those two styles, it matches up as 9/16-18 male SAE O-Ring Boss on one end and 9/16-18 male JIC 37 degree flare on the other end, in a long straight steel adapter.
Question by: Lynn S on Sep 19, 2025, 10:56 AM
what industries is this adapter actually rated for? trying to figure out if it fits our setup before ordering
Answer by: Customer Support on Sep 21, 2025, 6:09 AM
Eaton Aeroquip built this one for some pretty demanding environments. Listed applications include marine and military use, chemical processing, pulp and paper, food and beverage processing, and offshore drilling. So if your operation falls into any of those categories, you're in good shape with this fitting.
