Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-14 Male NPT, 90 deg Elbow

Description & Features

Manufactured from steel, this 90-degree elbow adapter connects a 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) port to a 1/2-14 Male NPT port, allowing a directional change in hydraulic line routing where straight inline fittings are not practical. The SAE O-Ring Boss thread provides a reliable, leak-resistant seal through metal-to-O-ring contact, while the NPT end forms a tapered thread connection suited to standard pipe fittings.

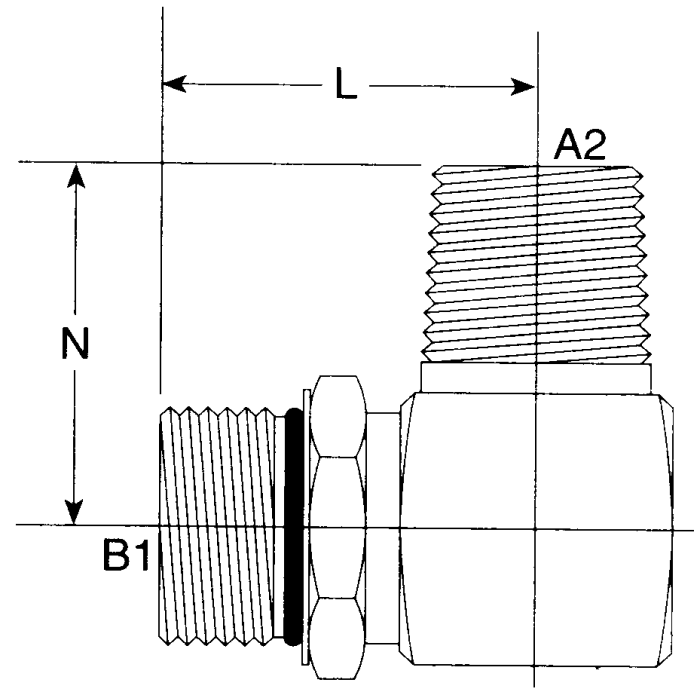

The Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-14 Male NPT, 90 deg Elbow is a Brennan Industries product cataloged under part number C1DZ27. With an L dimension of 1.52 and an N dimension of 1.47, it is a compact fitting well suited to space-constrained installations in hydraulic systems and industrial fluid power assemblies.

SKU: 6806-08-08-NWO

Supplier Part Number (MPN): 6806-08-08-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	L 1.52	N 1.47	Supplier Part Number 6806-08-08-NWO-FG	Thread 1 3/4-16	Thread 2 1/2-14	Thread Sealant No	Tube O.D. 0.50	Tube O.D. 0.5	Product Weight 0.31 lbs

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	L	N
6806-04-04-NWO Steel Male ORB To NPT 90 Elbow	0.25	7/16-20	1/4-18	1.09	1.09
6806-06-04-NWO Steel Male ORB To NPT 90 Elbow	0.38	9/16-18	1/4-18	1.25	1.09
6806-06-06-NWO Steel Male ORB To NPT 90 Elbow	0.38	9/16-18	3/8-18	1.35	1.22
6806-08-06-NWO Steel Male ORB To NPT 90 Elbow	0.5	3/4-16	3/8-18	1.45	1.22
6806-12-12-NWO Steel Male ORB To NPT 90 Elbow	0.75	1-1/16-12	3/4-14	1.94	1.59
6806-08-08-NWO Steel Male ORB To NPT 90 Elbow	0.5	3/4-16	1/2-14	1.52	1.47
6806-10-08-NWO Steel Male ORB To NPT 90 Elbow	0.63	7/8-14	1/2-14	1.7	1.47
